UTC4 W with 2 protective contact sockets, orange 218

UTC4 W with 2 protective contact sockets, orange

Item no. 7404613 | EAN 4012196687749

Item no. / Types	7404613 / UTC4 W OR2

Length	218 mm

Product description

Product description

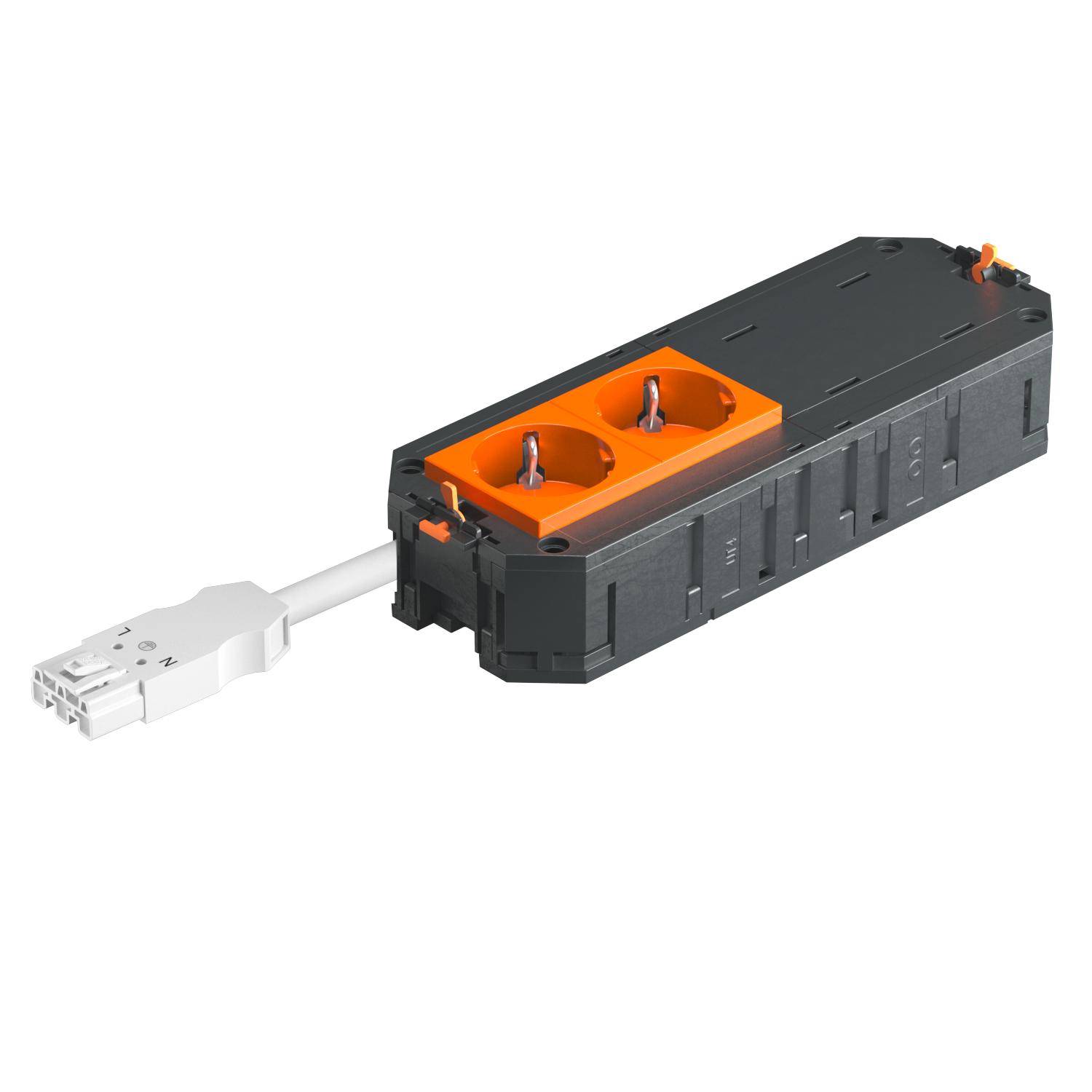

The ready-for-connection UTC4 universal support has 2 pre-installed 33° protective contact sockets of 16 A and 2 blanking covers for retroinstallation of 2 installation devices of the Modul 45 series. Suitable for VL connection cables and device installation units of nominal size R7, R9 and 9.

PVC connection cable with connector, 3-pin, type WINSTA® MIDI.
The ready-for-connection UTC4 universal support has 2 pre-installed 33° protective contact sockets of 16 A and 2 blanking covers for retroinstallation of 2 installation devices of the Modul 45 series.

PVC connection cable with connector, 3-pin, type WINSTA® MIDI

Technical data

Technical data

Cable length	300 mm
Circuit	1
Connection cable, halogen-free	yes

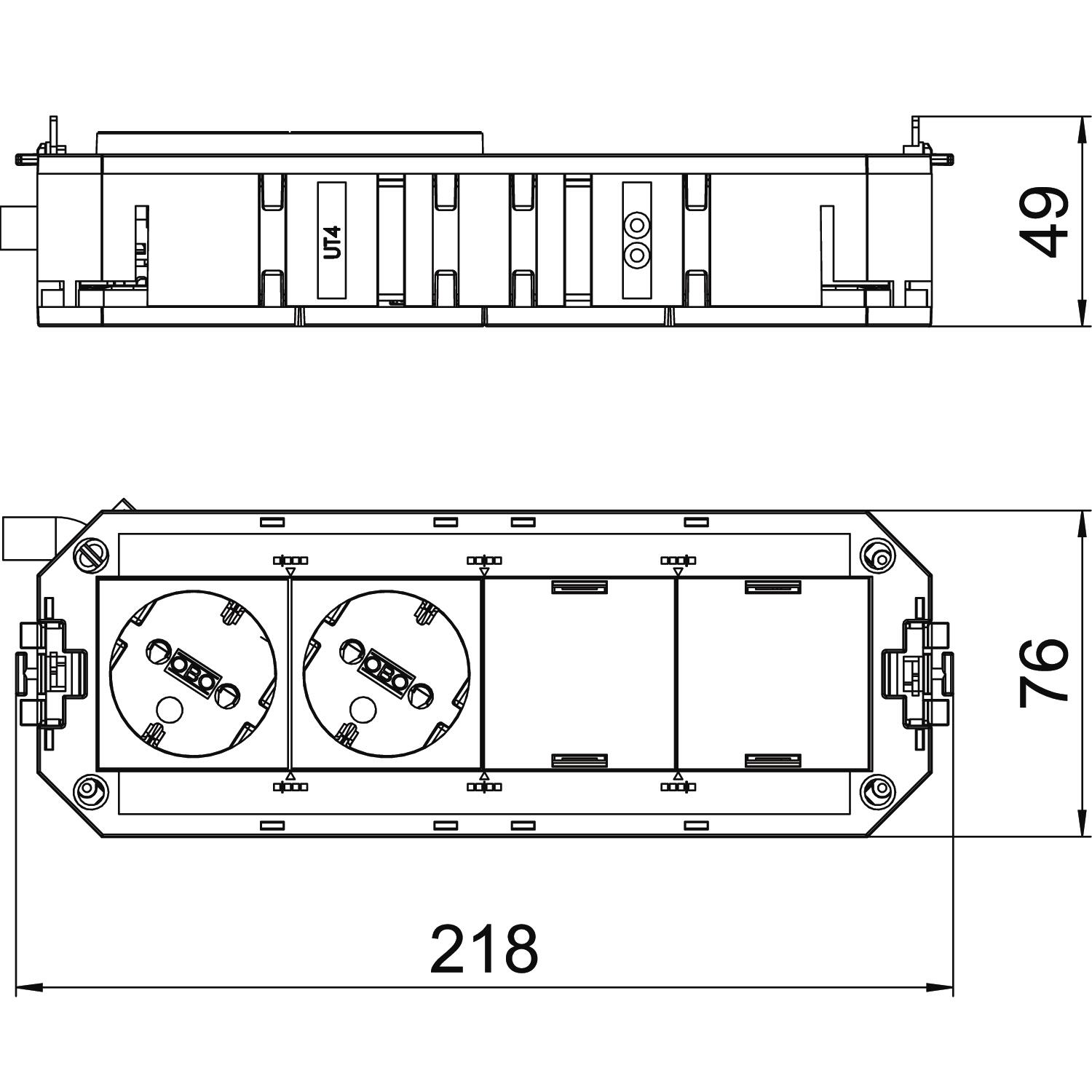

Dimension	208x76x45
Height	60 mm
Length	218 mm
Line cross-section	2,5 mm²

Material	Polyamide
Number of installable devices	4
Plug connector system, system-specific	yes
Plug-in system	WINSTA® MIDI
Surge protection	no
Version for	Double pure orange
Width	76 mm

All types

All types

Types	Length	Item no.	Quantity	SSU
UTC4 W OR2	218 mm	7404613	piece	10 piece
