UTC4 W with 3+1 protective contact sockets

Item no. 7404621 | EAN 4012196687817

7404621 / UTC4 W W3OR1
218 mm
Product description

Product description

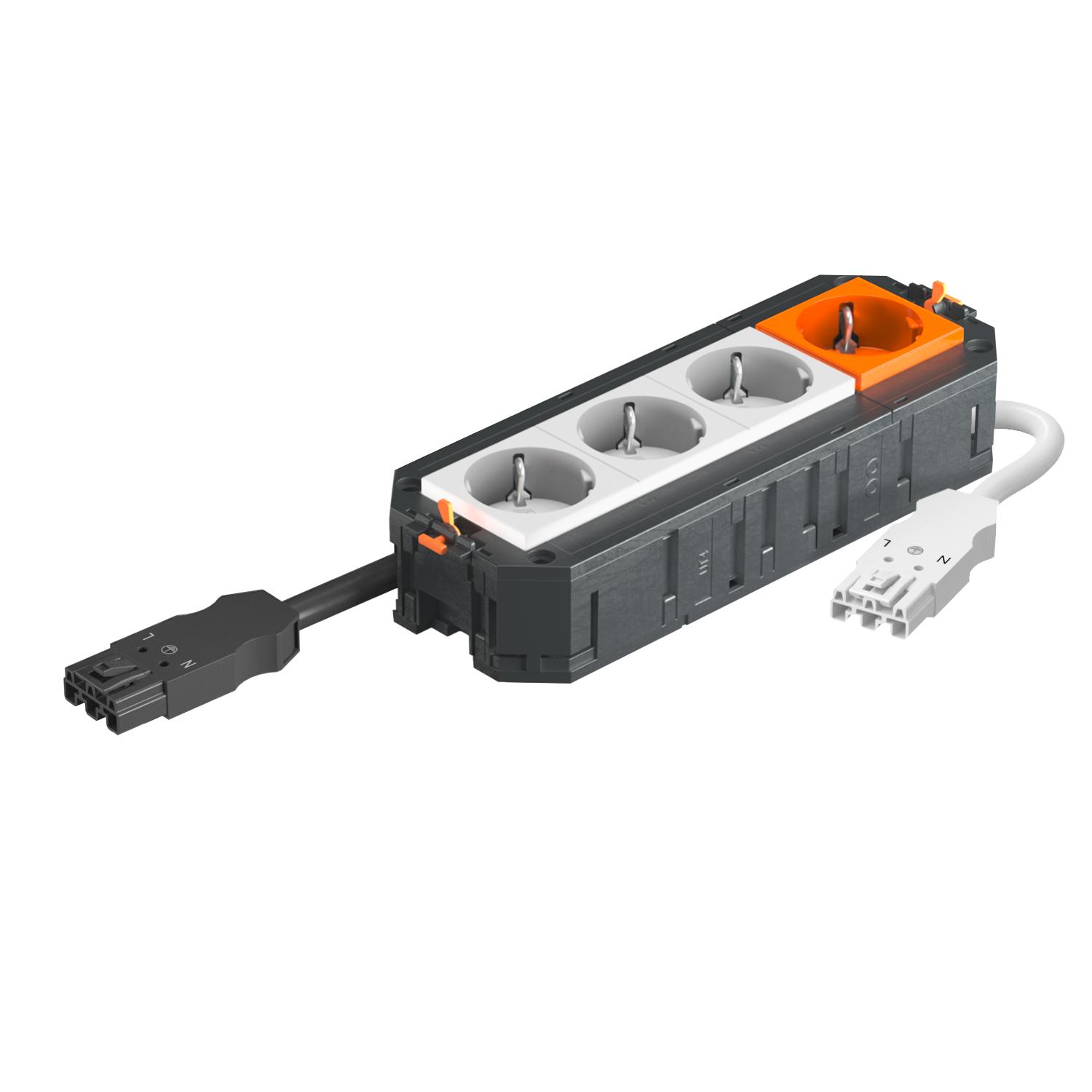

The ready-for-connection UTC4 universal support has 3 pre-installed 33° protective contact sockets in white and one pre-installed 33° protective contact socket in orange, 250 V~, 16 A. With halogen-free connection cable. Suitable for VL connection cables and device installation units of nominal size R7, R9 and 9.


PVC connection cable with connector, 3-pin, type WINSTA® MIDI.
The ready-for-connection UTC4 universal support has 3 pre-installed 33° protective contact sockets in white and one pre-installed 33° protective contact socket in orange, 250 V~ 16 A. With halogen-free connection cable.


PVC connection cable with connector, 3-pin, type WINSTA® MIDI
Technical data

Technical data

Cable length 300 mm
Circuit 2
Connection cable, halogen-free yes
Dimension 208x76x45
Line cross-section 2,5 mm²
Material Polyamide
Number of installable devices 4
Plug connector system, system-specific yes
Plug-in system WINSTA® MIDI
Surge protection no
Version for Triple pure white/single pure orange

Dimensions

Height 60 mm
Length 218 mm
Width 76 mm
All types

All types

Types Length Item no. Quantity SSU
UTC4 W W3OR1 218 mm 7404621
1 piece
Downloads

Download

Declaration of conformity UTC4 W W3OR1 / 7404621 , 0.17MB , pdf
Download

UTC4 W W3OR1 / 7404621
Download
