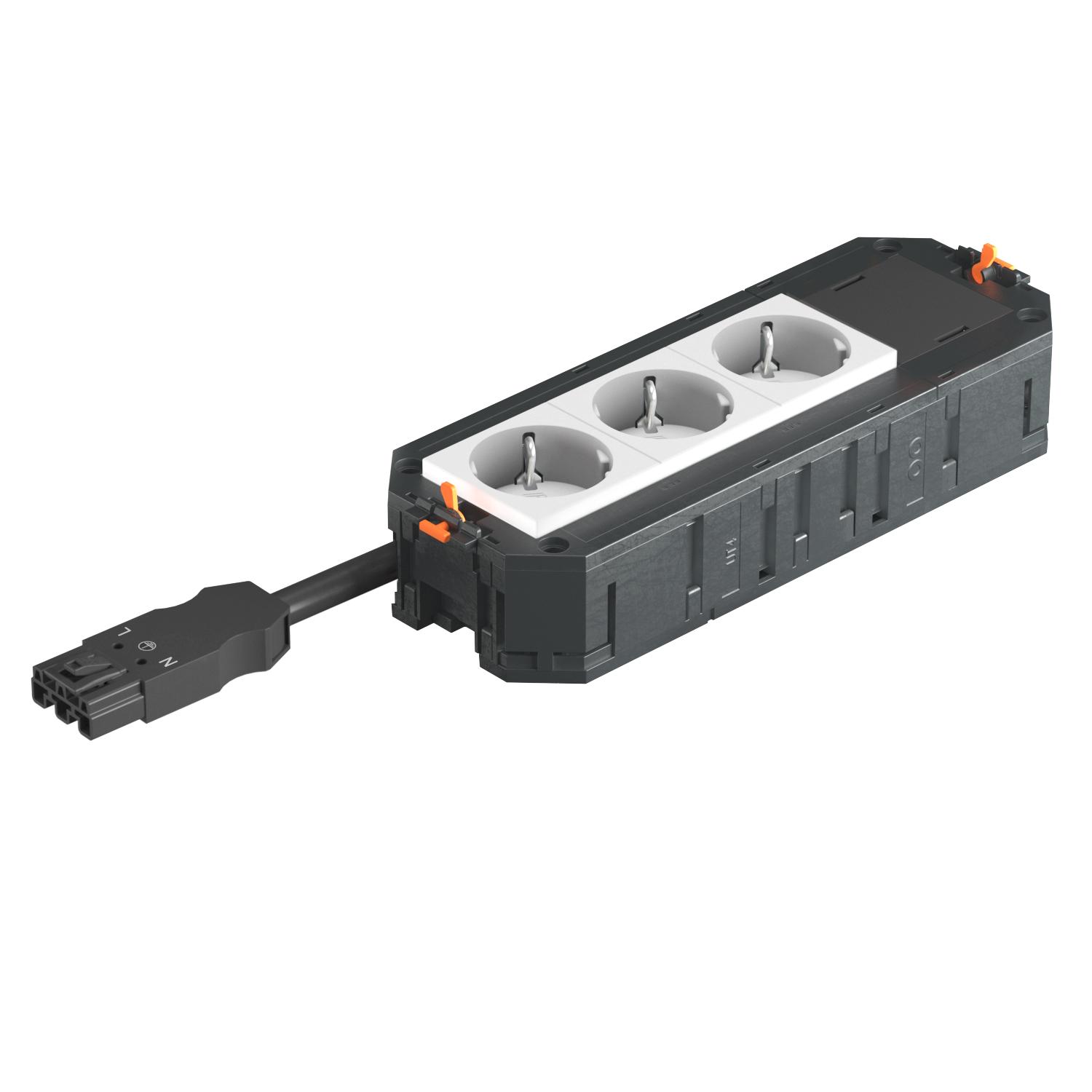

UTC4 W with 3 protective contact sockets, white
Item no. 7404618 | EAN 4012196687794
- Product description
-
Product description
The ready-for-connection UTC4 universal support has 3 pre-installed 33° protective contact sockets in white and one blanking cover for retroinstallation of an installation device of the Modul 45 series.
PVC connection cable with connector, 3-pin, type WINSTA® MIDI.
The ready-for-connection UTC4 universal support has 3 pre-installed 33° protective contact sockets in white and one blanking cover for retroinstallation of an installation device of the Modul 45 series.
PVC connection cable with connector, 3-pin, type WINSTA® MIDI.
- Technical data
-
Technical data
Cable length 300 mm Circuit 1 Connection cable, halogen-free yes Dimension 208x76x45 Line cross-section 2,5 mm² Material Polyamide Number of installable devices 4 Plug connector system, system-specific yes Plug-in system WINSTA® MIDI Surge protection no Version for Triple pure white Dimensions

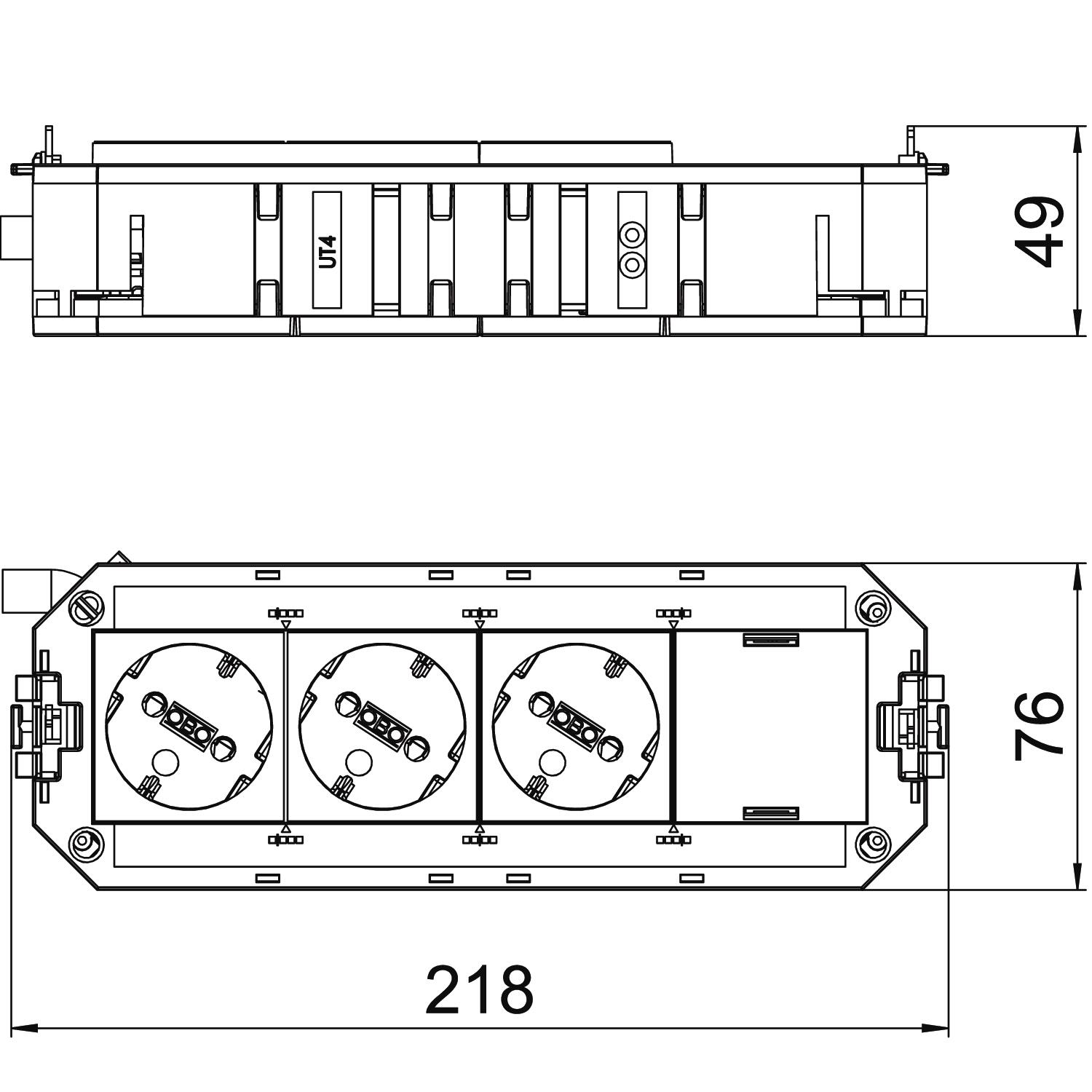

Height 60 mm Length 218 mm Width 76 mm - All types
- Downloads
-
Data sheet UTC4 W W3 / 7404618 , 0.25MB , pdfDeclaration of conformity UTC4 W W3 / 7404618 , 0.17MB , pdf
