UTC4 W with 4 protective contact sockets, white 218

UTC4 W with 4 protective contact sockets, white

Item no. 7404619 | EAN 4012196687800

Item no. / Types	7404619 / UTC4 W W4

Length	218 mm

Product description

Product description

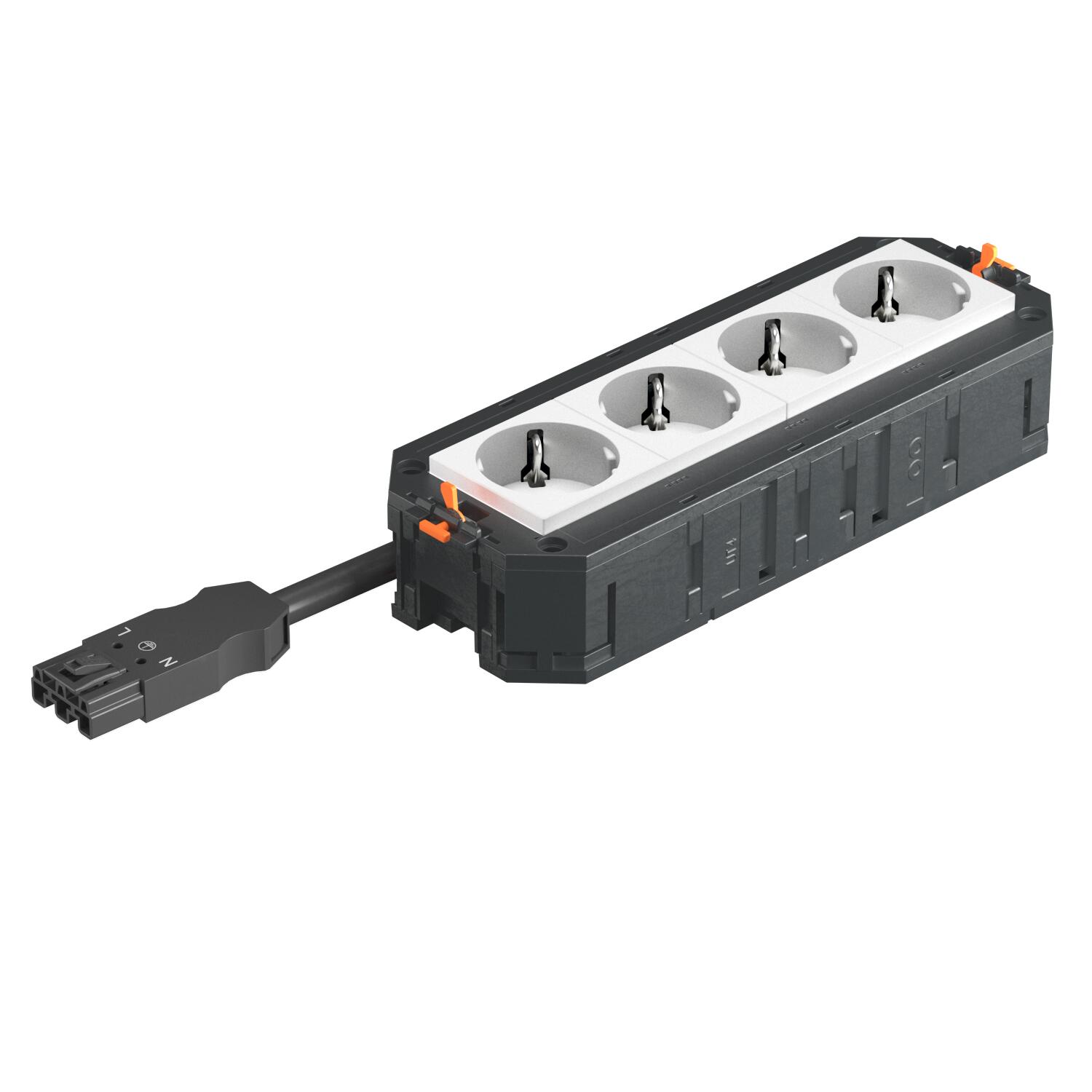

The ready-for-connection UTC4 universal support possesses 4 pre-installed 33° protective contact sockets in white, 250 V~, 16 A. Suitable for the VL connection cables and device installation units of nominal size R7, R9 and 9.

PVC connection cable with connector, 3-pin, type WINSTA® MIDI.
The ready-for-connection UTC4 universal support has 4 pre-installed 33° protective contact sockets in white, 250 V~ 16 A.

PVC connection cable with connector, 3-pin, type WINSTA® MIDI

Technical data

Technical data

Cable length	300 mm
Circuit	1
Connection cable, halogen-free	yes

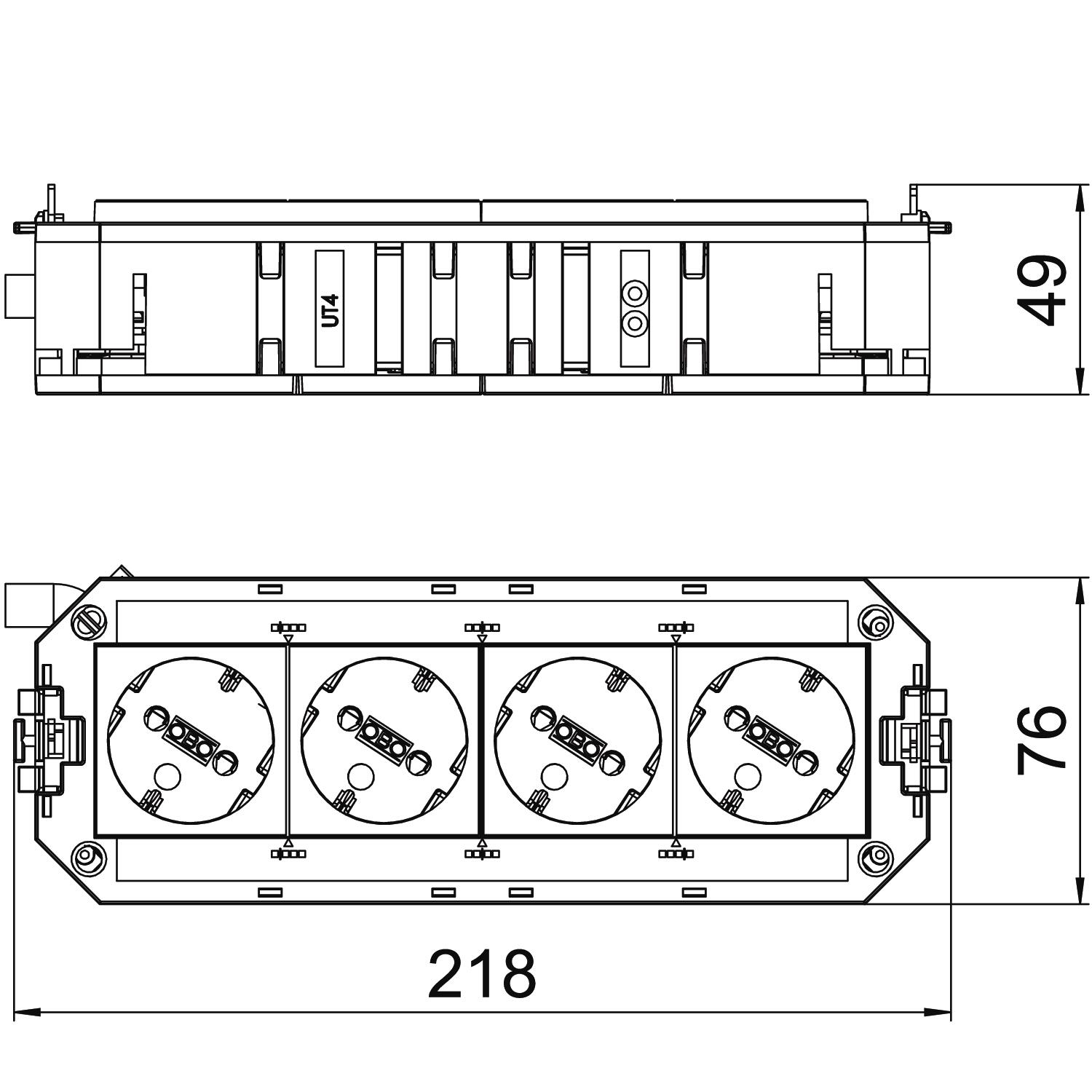

Dimension	208x76x45
Height	60 mm
Length	218 mm
Line cross-section	2,5 mm²

Material	Polyamide
Number of installable devices	4
Plug connector system, system-specific	yes
Plug-in system	WINSTA® MIDI
Surge protection	no
Version for	4x pure white
Width	76 mm

All types

All types

Types	Length	Item no.	Quantity	SSU
UTC4 W W4	218 mm	7404619	piece	10 piece

Downloads

Data sheet UTC4 W W4 / 7404619 , 0.18MB , pdf

Download

Brochure Pluggable connection technology with Wieland gst 18 , 2.10MB , pdf

Brochure Connectable connection technology with WINSTA® MIDI , 2.10MB , pdf

Catalogue Floor installation systems and Underfloor applications , 42.28MB , pdf
