UTC4 with 2+1 protective contact sockets

Item no. 7404688 | EAN 4012196557691

7404688 / UTC4 G OR2GN1
218 mm
Product description

Product description

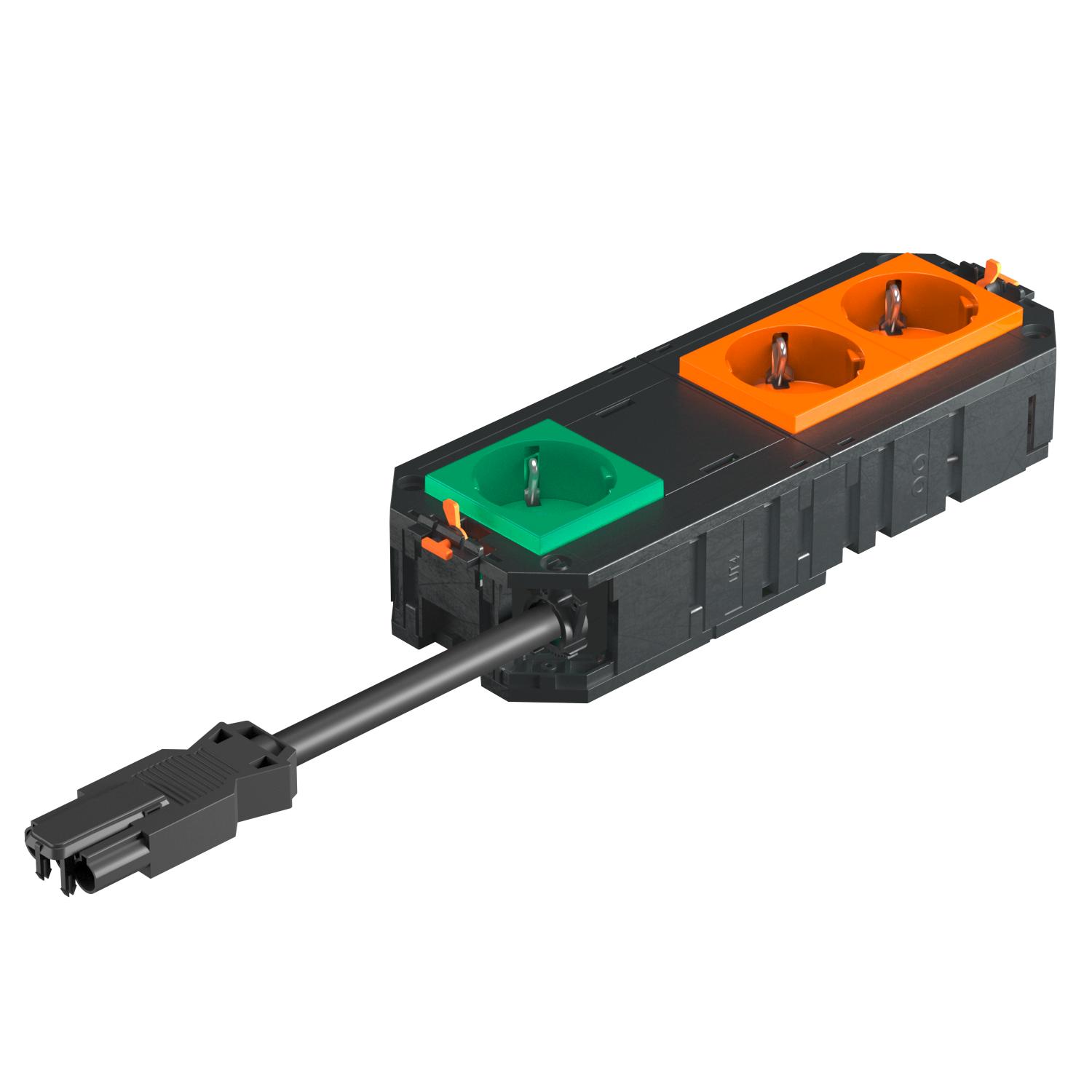

Ready-for-connection universal support UTC4 with halogen-free connection cable. It possesses two pre-installed 33° protective contact sockets in orange and one 33° protective contact socket in mint green with 16 A. A blanking cover allows retroinstallation of one installation device of the Modul 45 or Modul 45connect series. Suitable for VL connection cables and device installation units of nominal size R7, R9 and 9.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cable length 300 mm
Circuit 2

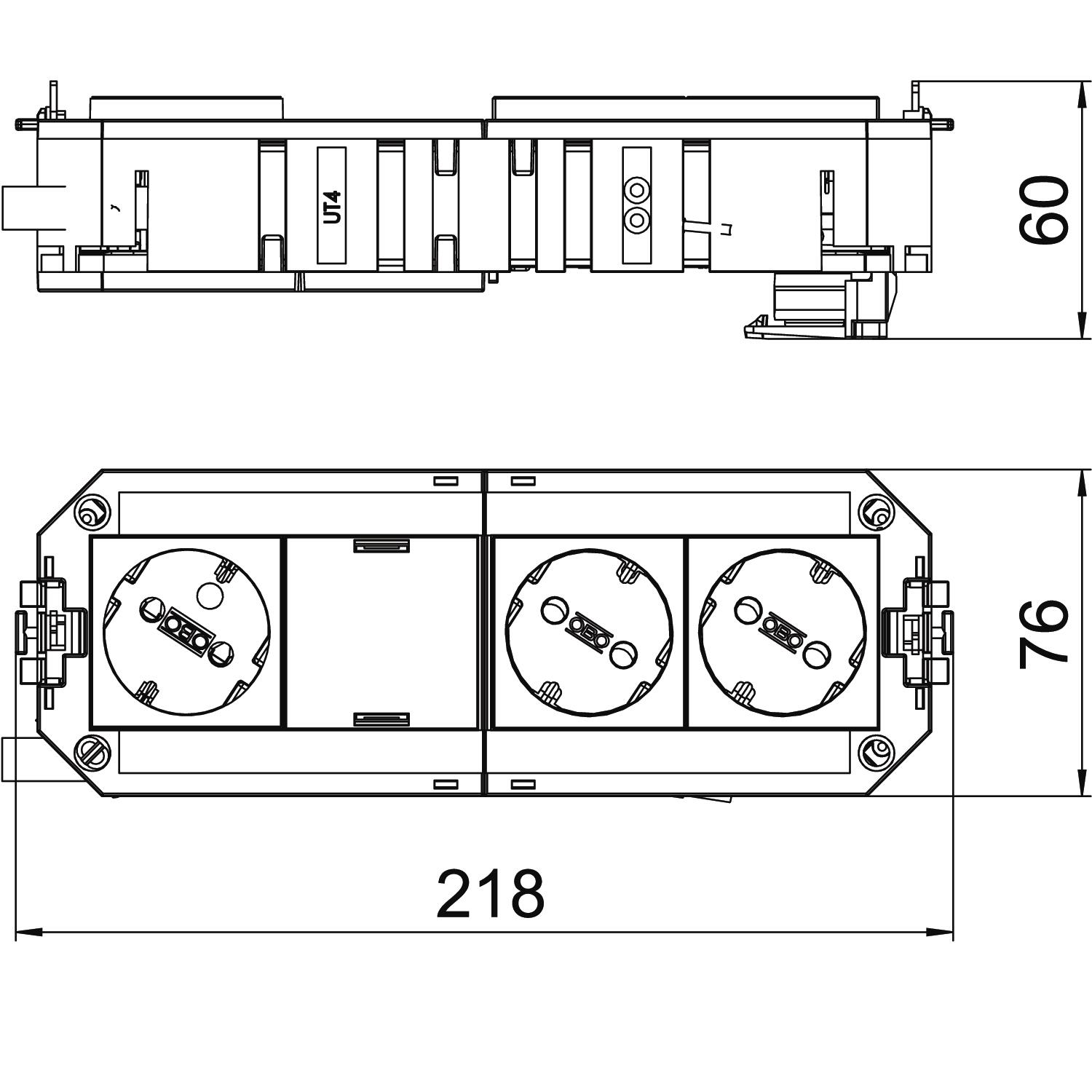

Dimension 208x76x45
Height 60 mm
Length 218 mm
Length of the supply cable 0,3 m
Line cross-section 2,5 mm²
Number of connections 2
Number of installable devices 4
Plug connector system, system-specific yes
Plug-in system GST18
Socket combination Single and double
Surge protection no
Version for Double pure orange/single mint green
Width 76 mm
All types

All types

Types Length Item no. Quantity SSU
UTC4 G OR2GN1 218 mm 7404688
10 piece
