UTC4 with 2+2 protective contact sockets, 2 sockets with surge protection 218
morepic-1 morepic-2

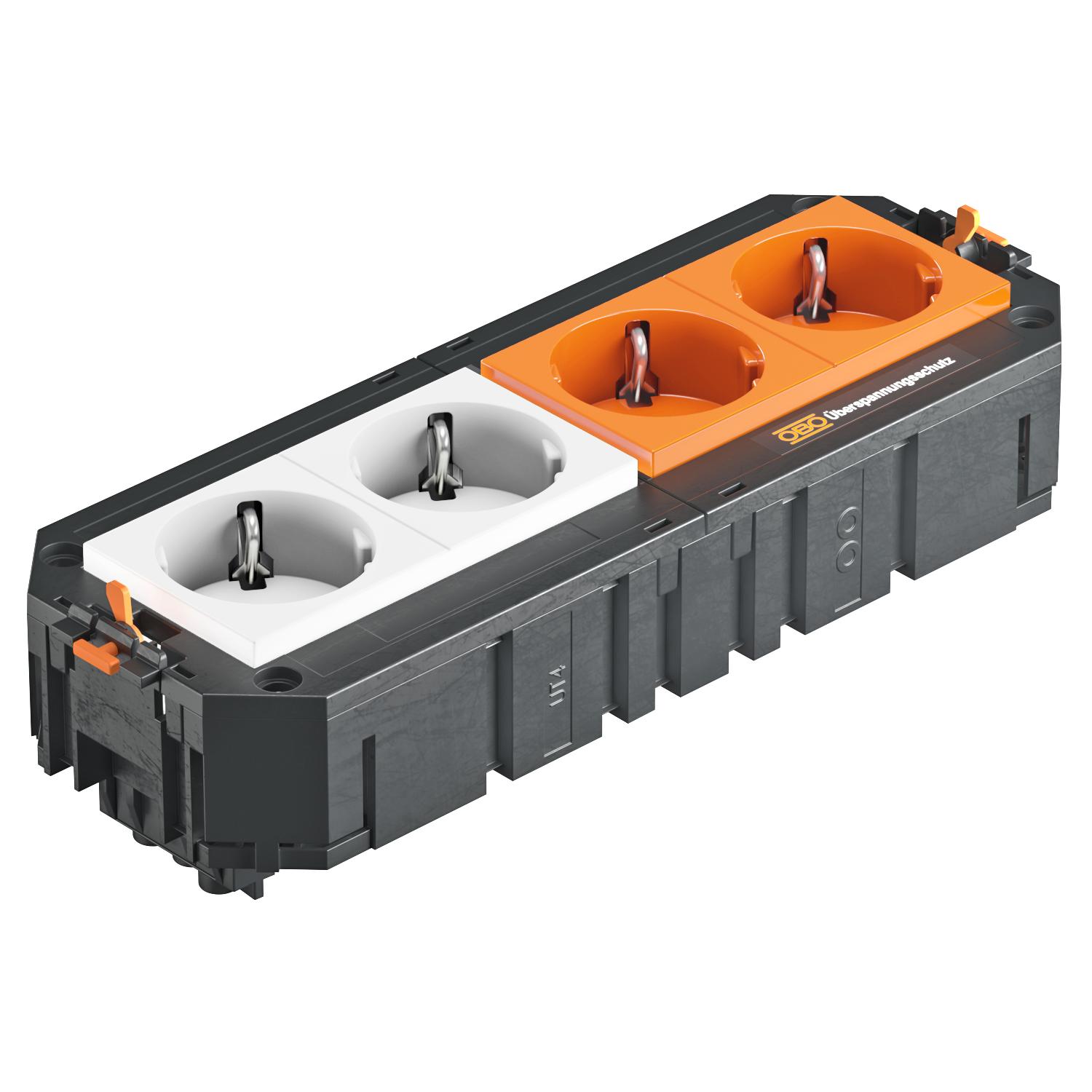

UTC4 with 2+2 protective contact sockets, 2 sockets with surge protection

Item no. 7404678 | EAN 4012196557622

7404678 / UTC4 G W2OR2 Ü
218 mm
Product description

Product description

The ready-for-connection UTC4 universal support possesses two pre-installed 33° protective contact sockets in pure white and two pre-installed 33° protective contact sockets in pure orange of 16 A. Suitable for VL connection cables and device installation units of nominal size R7, R9 and 9. The protective contact sockets in pure orange are protected by a type 3 surge protection module according to DIN EN 61643-11.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Circuit 2

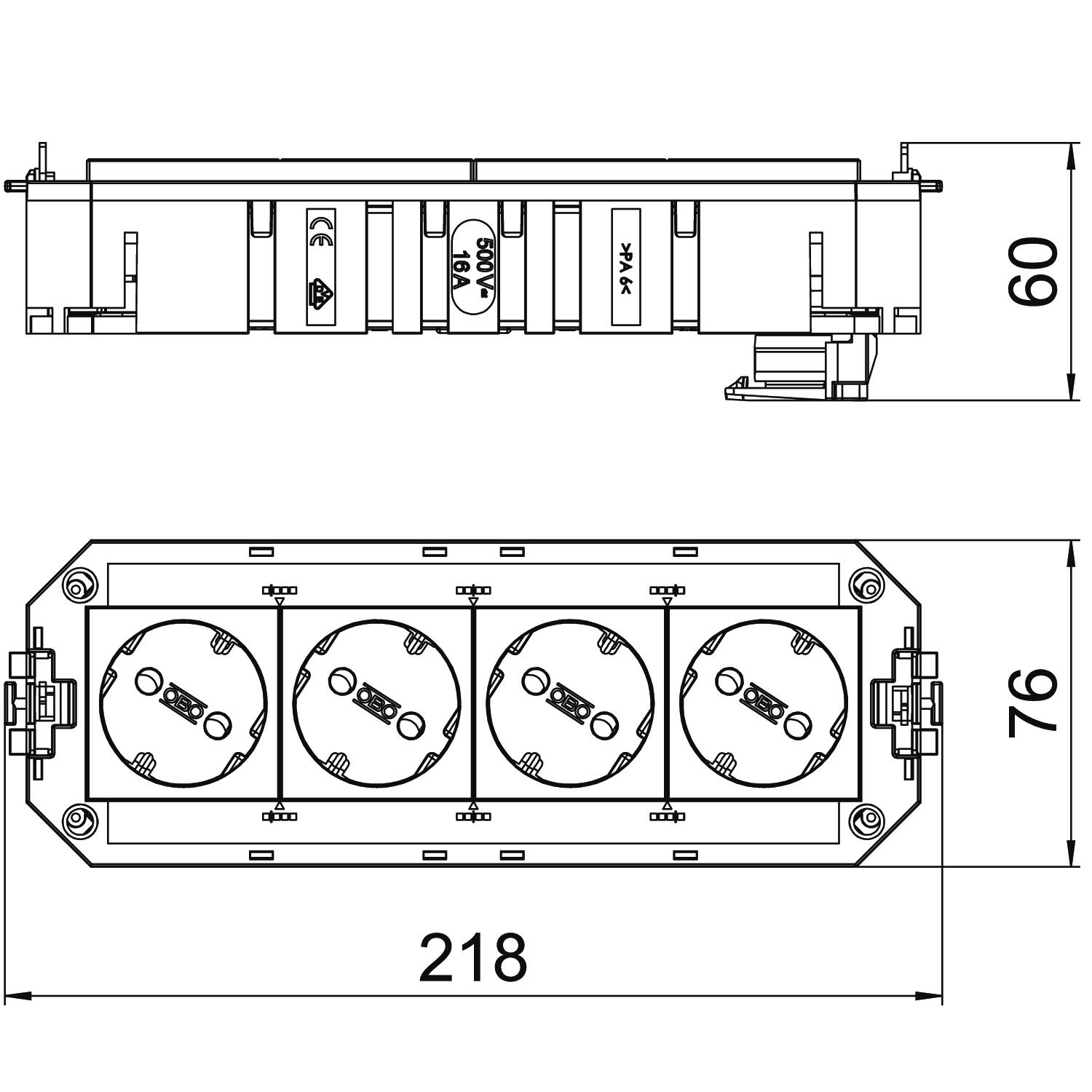

Dimension 208x76x45
Height 60 mm
Length 218 mm
Line cross-section 2,5 mm²
Number of connections 2
Number of installable devices 4
Plug connector system, system-specific yes
Plug-in system GST18
Socket combination Double and double with surge protection
Surge protection yes
Version for Double pure white/double pure orange
Width 76 mm
All types

All types

Types Length Item no. Quantity SSU
UTC4 G W2OR2 Ü 218 mm 7404678
