UTC4 with 2+2 protective contact sockets 218
morepic-1 morepic-2

UTC4 with 2+2 protective contact sockets

Item no. 7404676 | EAN 4012196557615

7404676 / UTC4 G W2OR2
218 mm
Product description
Product description

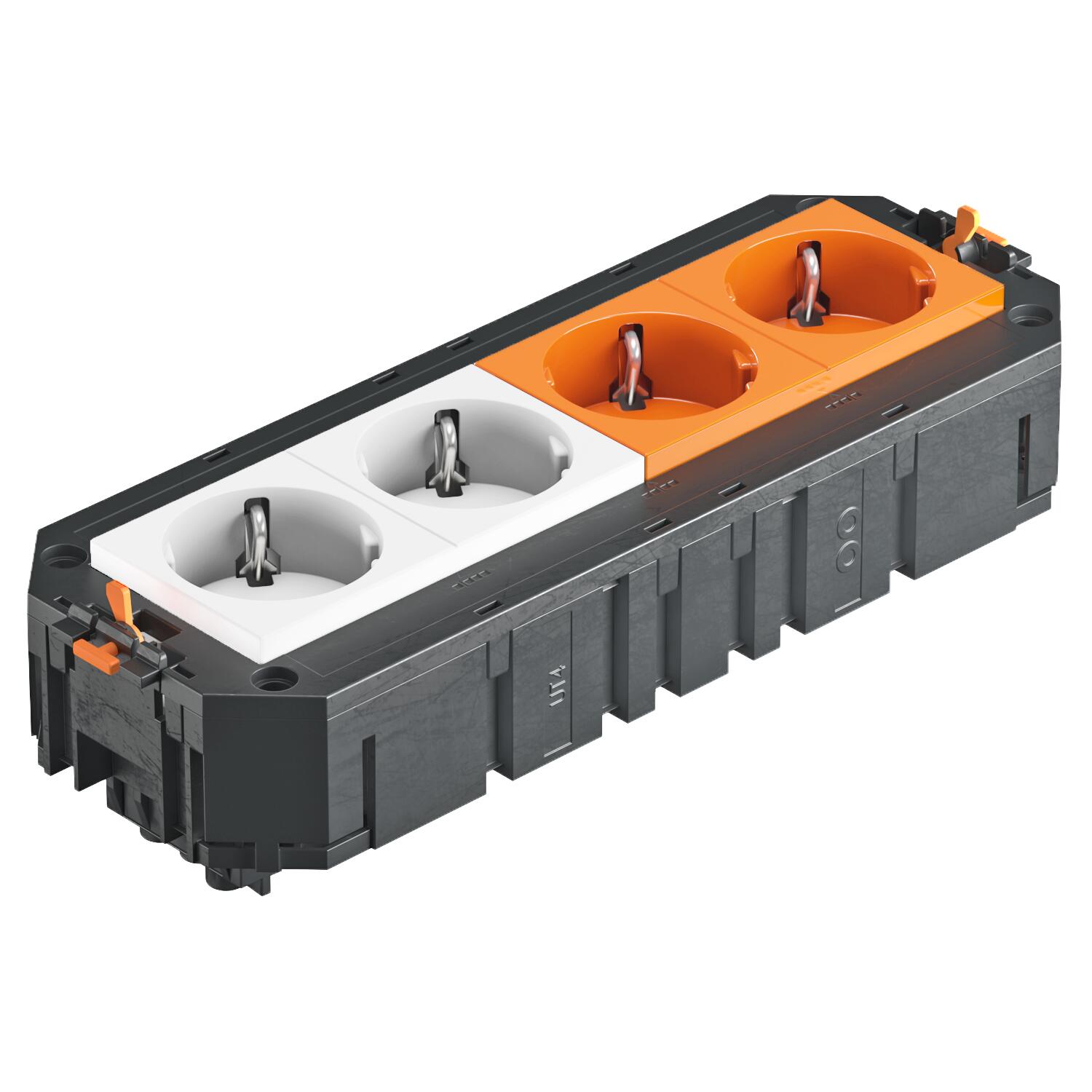

The ready-for-connection UTC4 universal support possesses two pre-installed 33° protective contact sockets in pure white and two 33° pre-installed protective contact sockets in pure orange of 16 A. Suitable for VL connection cables and device installation units of nominal size R7, R9 and 9.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Circuit 2

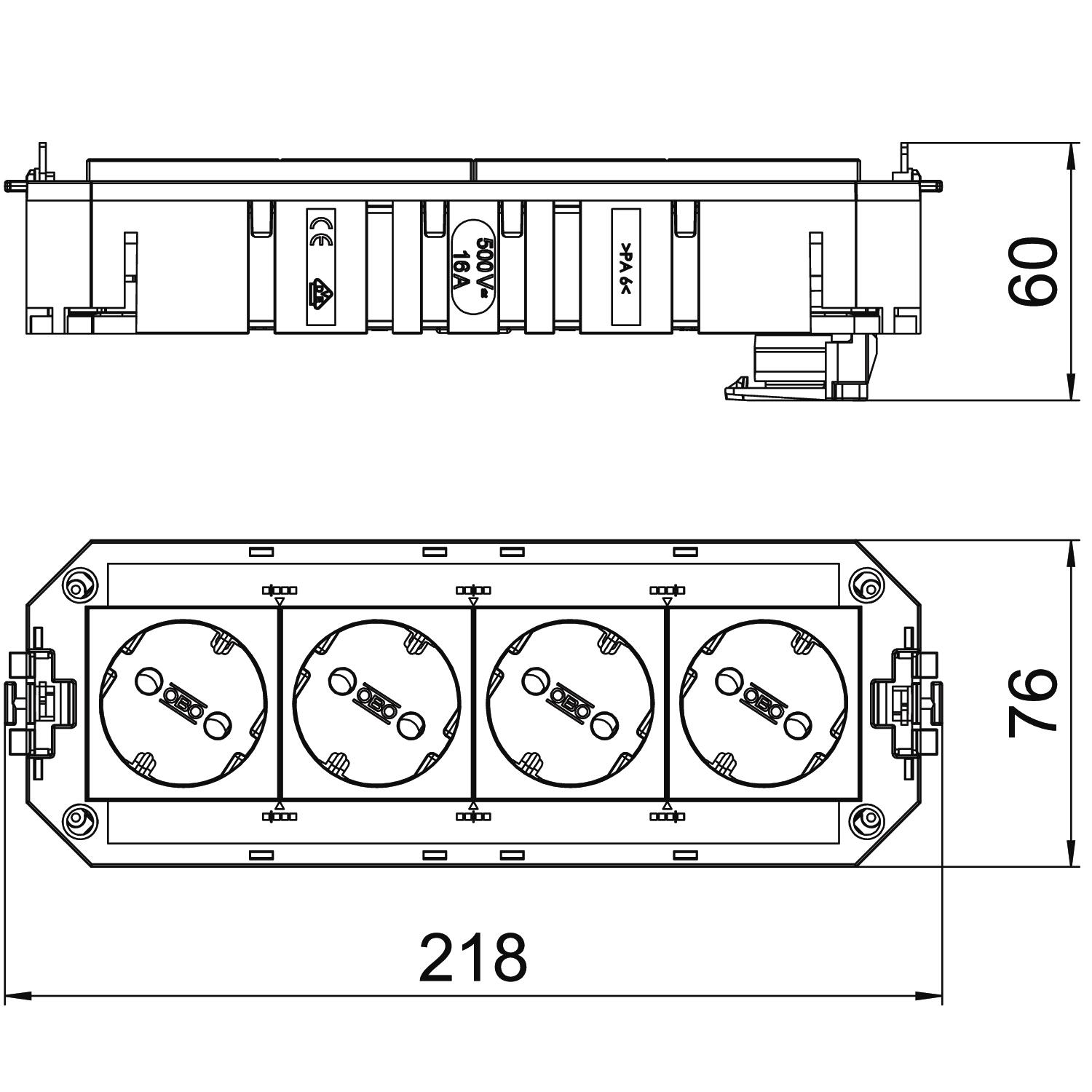

Dimension 208x76x45
Height 60 mm
Length 218 mm
Line cross-section 2,5 mm²
Number of connections 2
Number of installable devices 4
Plug connector system, system-specific yes
Plug-in system GST18
Socket combination 2x double
Surge protection no
Version for Double pure white/double pure orange
Width 76 mm
All types

All types

Types Length Item no. Quantity SSU
UTC4 G W2OR2 218 mm 7404676
4 piece
