UTC4 with 3+1 protective contact sockets, 1 socket with surge protection 218
morepic-1 morepic-2

UTC4 with 3+1 protective contact sockets, 1 socket with surge protection

Item no. 7404686 | EAN 4012196557684

7404686 / UTC4 G W3OR1 Ü
218 mm
Product description

Product description

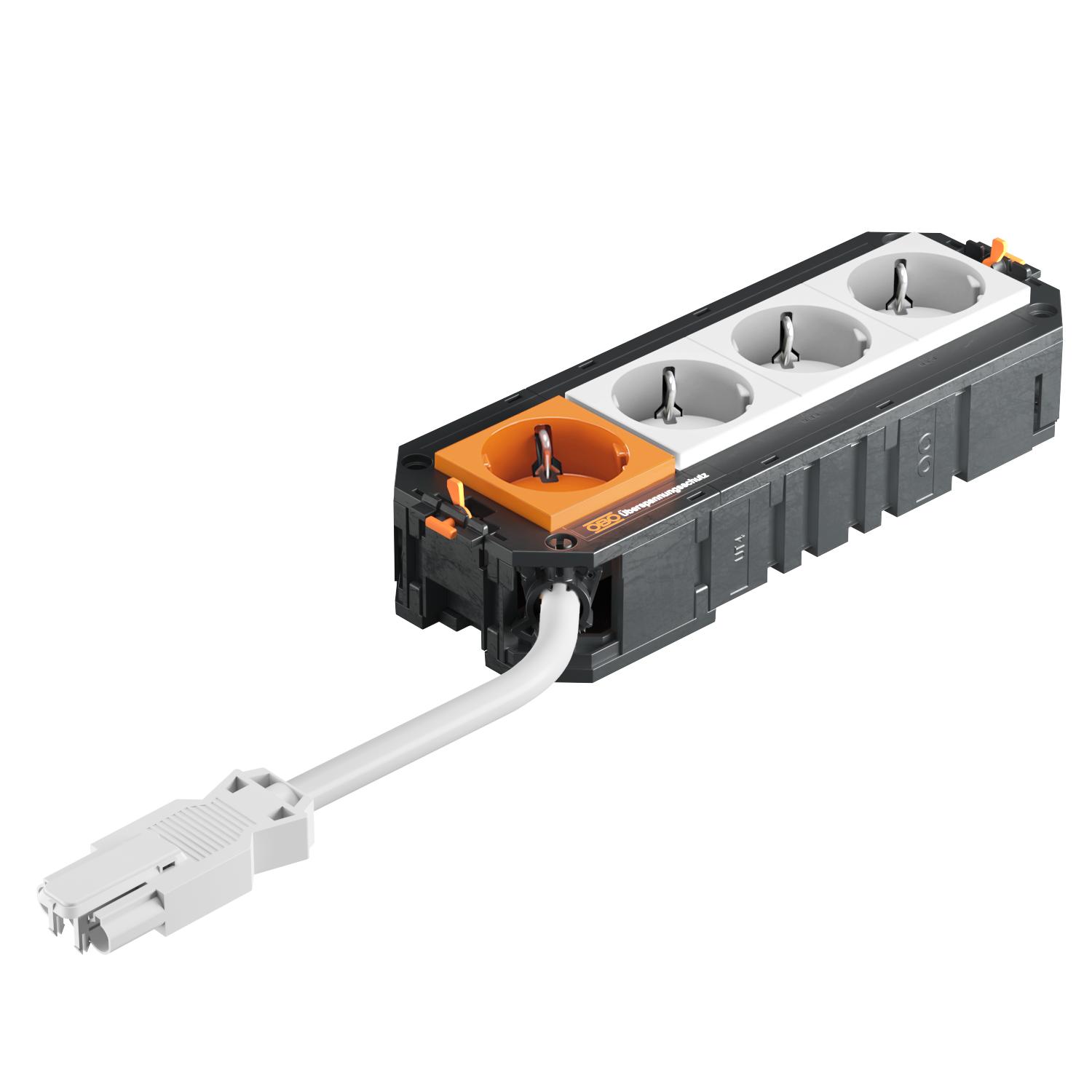

Ready-for-connection universal support UTC4 with halogen-free connection cable. It possesses three pre-installed 33° protective contact sockets in white and one 33° protective contact socket in pure orange of 16 A. The protective contact socket in pure orange is protected by a type 3 surge protection module according to DIN EN 61643-11. Suitable for VL connection cables and device installation units of nominal size R7, R9 and 9.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cable length 300 mm
Circuit 2

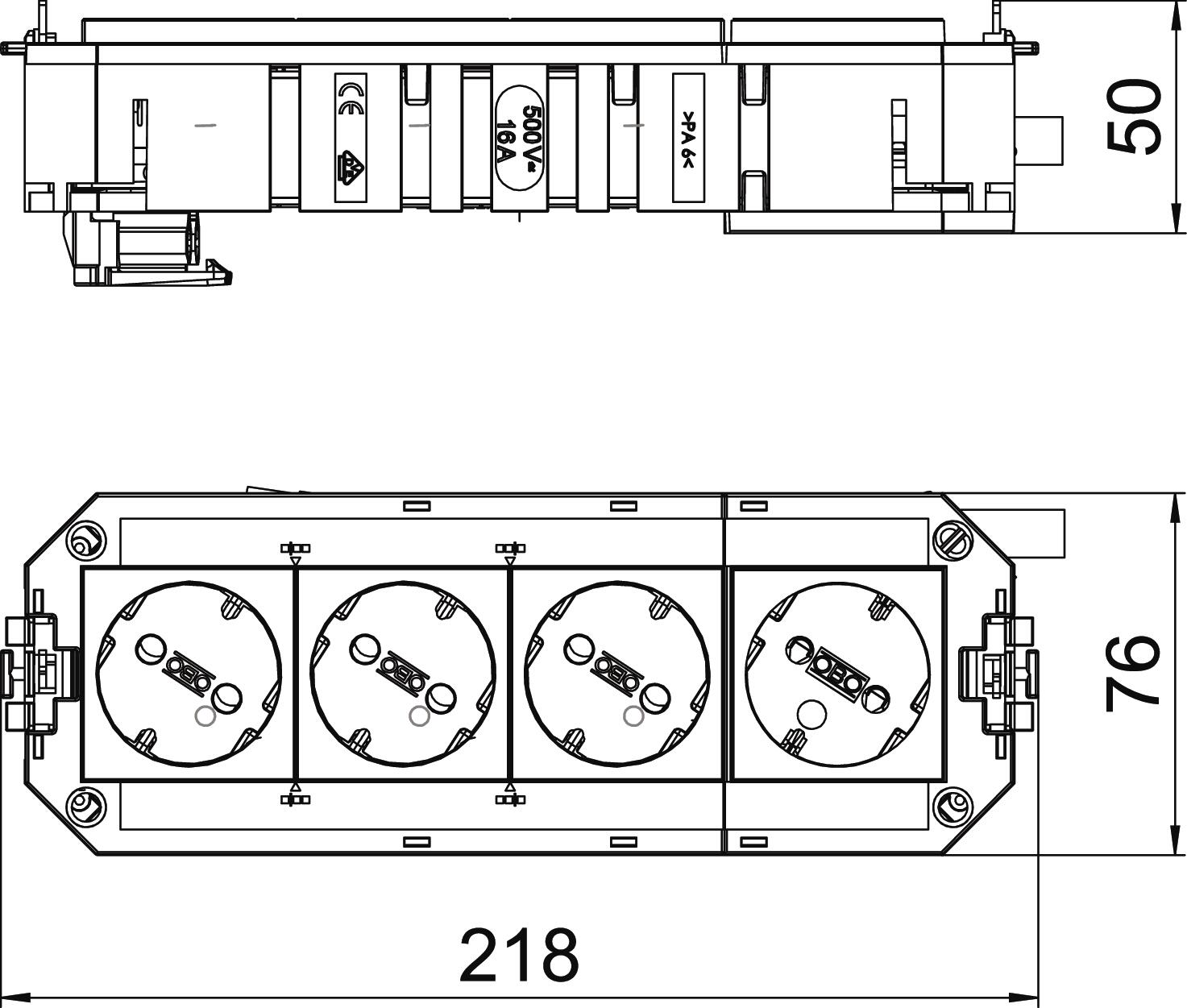

Dimension 208x76x45
Height 60 mm
Length 218 mm
Line cross-section 2,5 mm²
Number of connections 2
Number of installable devices 4
Plug connector system, system-specific yes
Plug-in system GST18
Socket combination Miscellaneous
Surge protection yes
Version for Triple pure white/single pure orange
Width 76 mm
All types

All types

Types Length Item no. Quantity SSU
UTC4 G W3OR1 Ü 218 mm 7404686
10 piece
