UTC4 with 3+1 protective contact sockets
Item no. 7404684 | EAN 4012196557677
- Product description
-
Product description

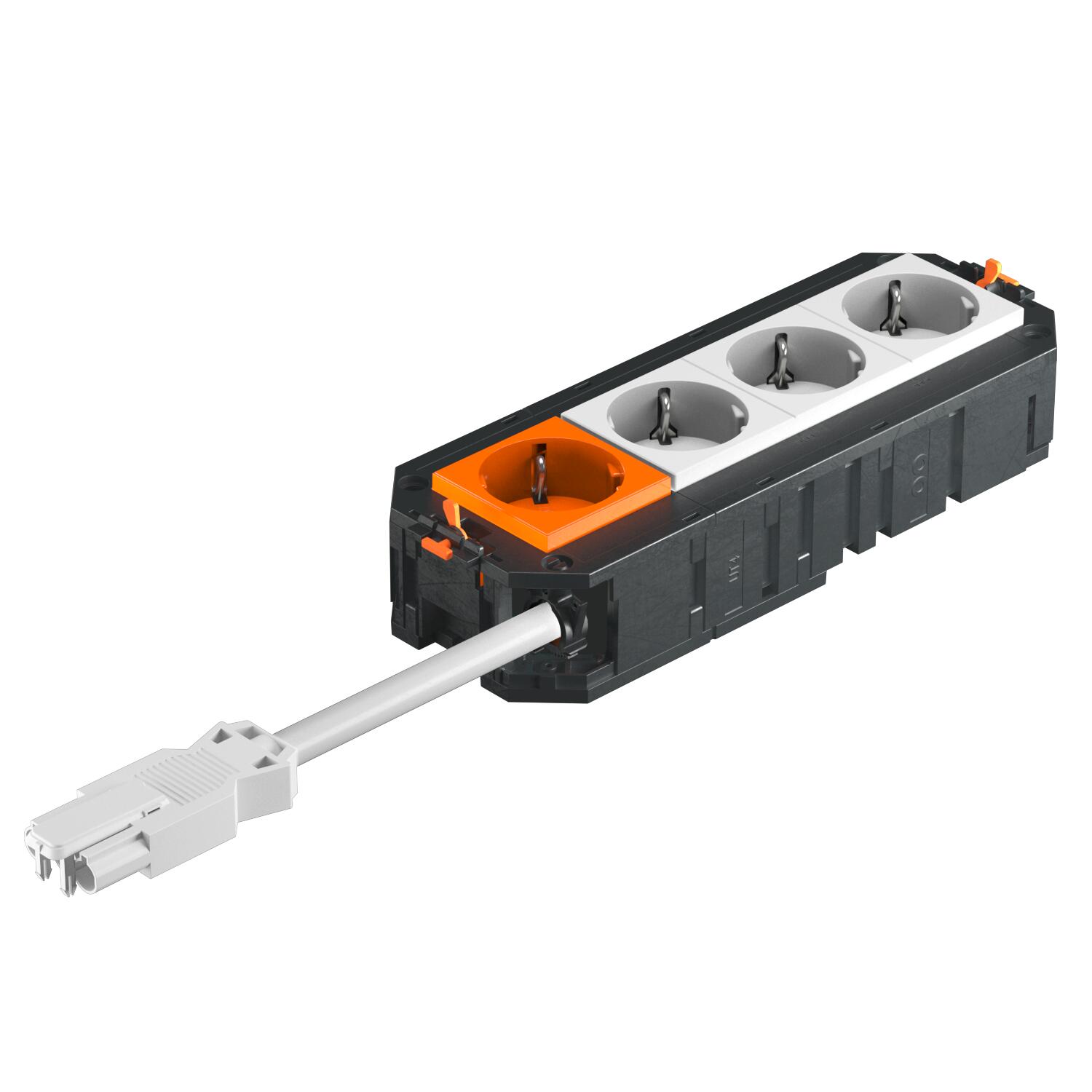

Ready-for-connection universal support UTC4 with halogen-free connection cable. It possesses three pre-installed 33° protective contact sockets in pure white and one pre-installed 33° protective contact socket in pure orange of 16 A. Suitable for VL connection cables and device installation units of nominal size R7, R9 and 9.
-
- Technical data
-
Technical data

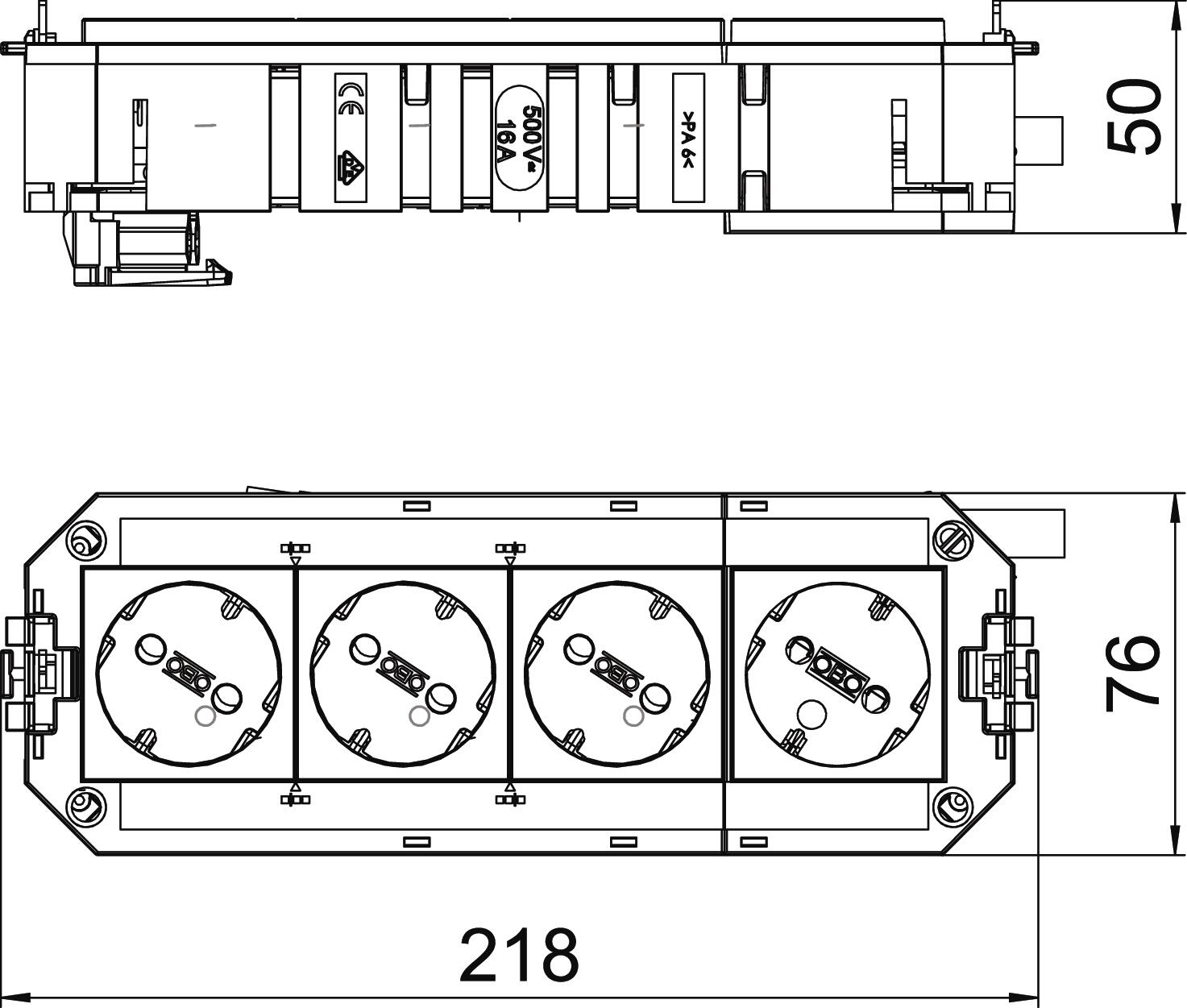

Cable length 300 mm Circuit 2 Dimension 208x76x45 Height 60 mm Length 218 mm Length of the supply cable 0,3 m Line cross-section 2,5 mm² Number of connections 2 Number of installable devices 4 Plug connector system, system-specific yes Plug-in system GST18 Socket combination Single and triple Surge protection yes Version for Triple pure white/single pure orange Width 76 mm - All types
- Downloads
-
Data sheet UTC4 G W3OR1 / 7404684 , 0.19MB , pdf
