UTC4 with 3 protective contact sockets

Item no. 7404680 | EAN 4012196557646

Item no. / Types	7404680 / UTC4 G W3

Length	208 mm

Product description

Product description

The ready-for-connection UTC4 universal support possesses three pre-installed 33° protective contact sockets of 16 A and one blanking cover for retroinstallation of one installation device of the Modul 45 or Modul 45connect series. Suitable for VL connection cables and device installation units of nominal size R7, R9 and 9.

Technical data

Technical data

Circuit	1
Dimension	208x76x45
Height	56 mm
Length	208 mm
Line cross-section	2,5 mm²
Number of connections	1
Number of installable devices	4

Plug connector system, system-specific	yes
Plug-in system	GST18
Socket combination	Triple
Surge protection	no
Version for	Triple pure white
Width	76 mm

All types

All types

Types	Length	Item no.	Quantity	SSU
UTC4 G W3	208 mm	7404680	piece	4 piece

Downloads

Data sheet UTC4 G W3 / 7404680 , 0.35MB , pdf

Brochure Pluggable connection technology with Wieland gst 18 , 2.10MB , pdf

Flyer Ready-for-connection universal support connect UTC , 2.00MB , pdf

Catalogue Floor installation systems and Underfloor applications , 42.28MB , pdf

Product graphic UTC4 G W3 / 7404680, 98.67 kB, jpg

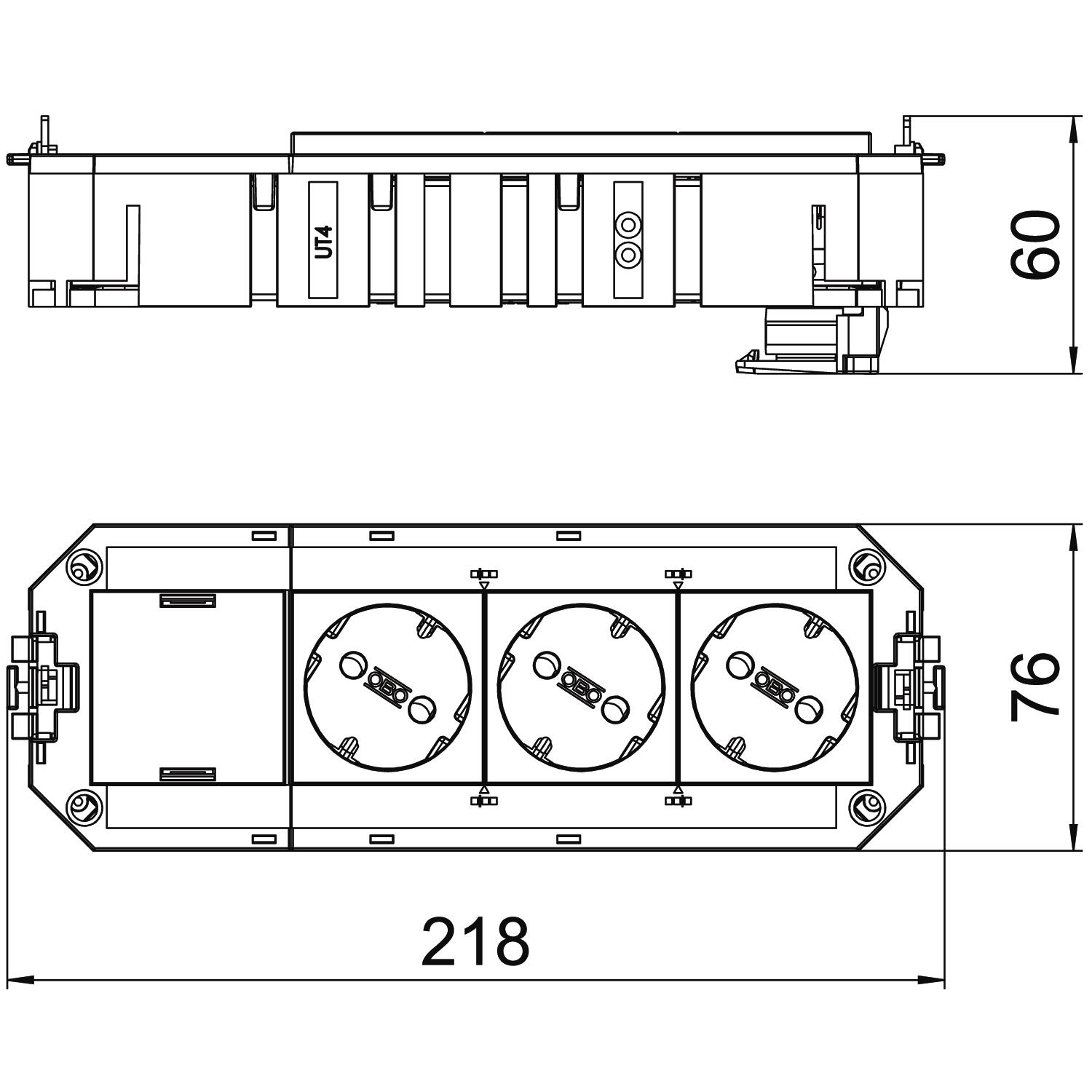

Scale drawing UTC4 G W3 / 7404680, 121.01 kB, jpg
