UVS energy distributor with plug connection, normal and special circuit
morepic-1 morepic-2

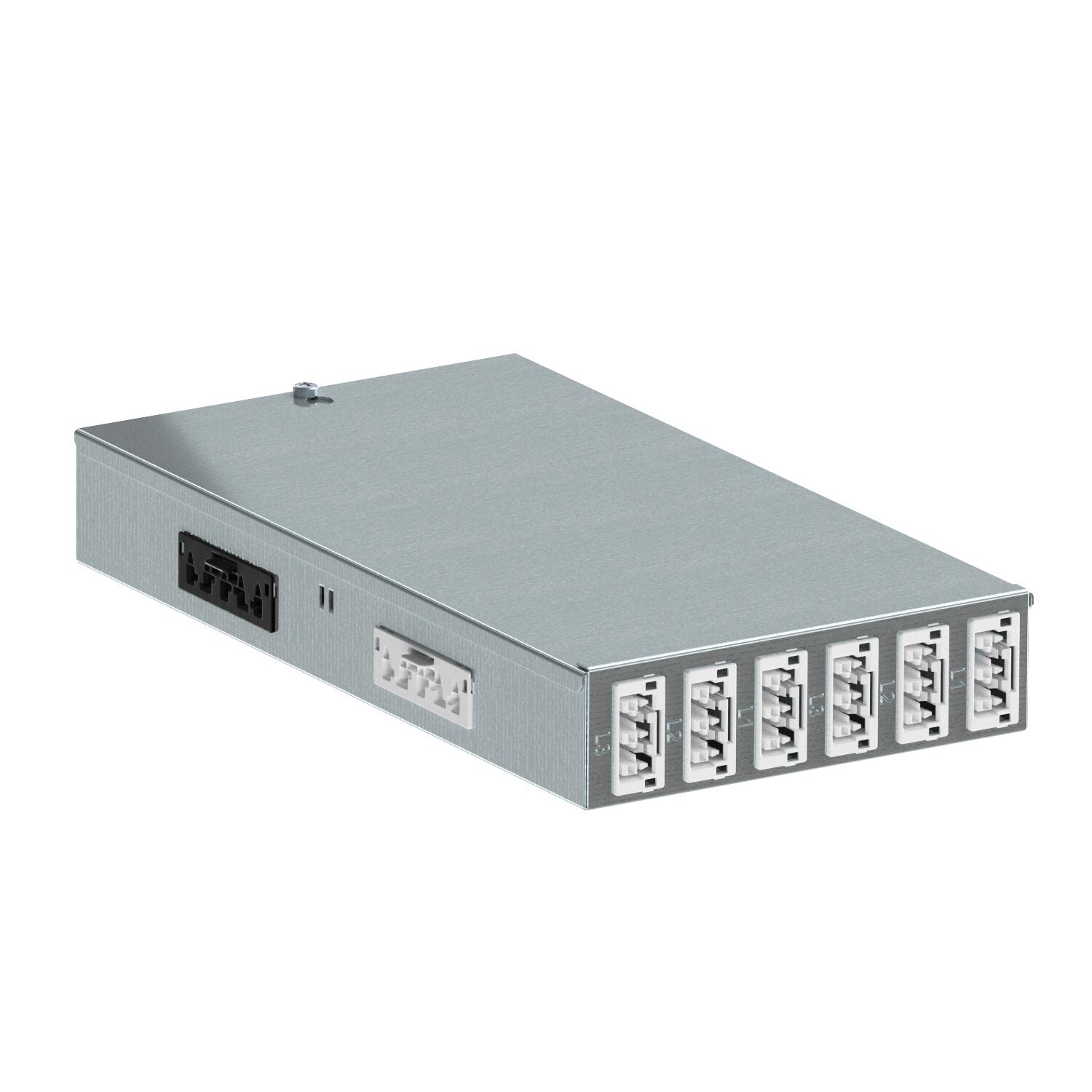

UVS energy distributor with plug connection, normal and special circuit

Item no. 6107990 | EAN 4012196688197

Product description

Product description

Input: 2x three-phase circuit using a self-locking plug connector, 5-pin, type WINSTA MIDI (connector part).

Output: 12 self-locking plug connectors, 3-pin, in white (6x) and black (3x), 25 A, type WINSTA MIDI (socket part: 2 x L1, 2 x L2, 2 x L3 for each rotary current circuit).

Internal wiring: PVC non-sheathed cable H07V-U2.5.
Input: 2x three-phase circuit using self-locking plug connectors, 5-pin, type WINSTA® MIDI (connector part).

Output: 12 self-locking plug connectors, 3-pin, in white (6x) and black (3x), 25 A, type WINSTA® MIDI (socket part: 2x L1, 2x L2, 2x L3 for each rotary current circuit).

Internal wiring: PVC non-sheathed cable H07V-U2.5.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour of the plug connector system Black/white
Connection type Plug-in system
Cross-section of the connection cable 4 mm²

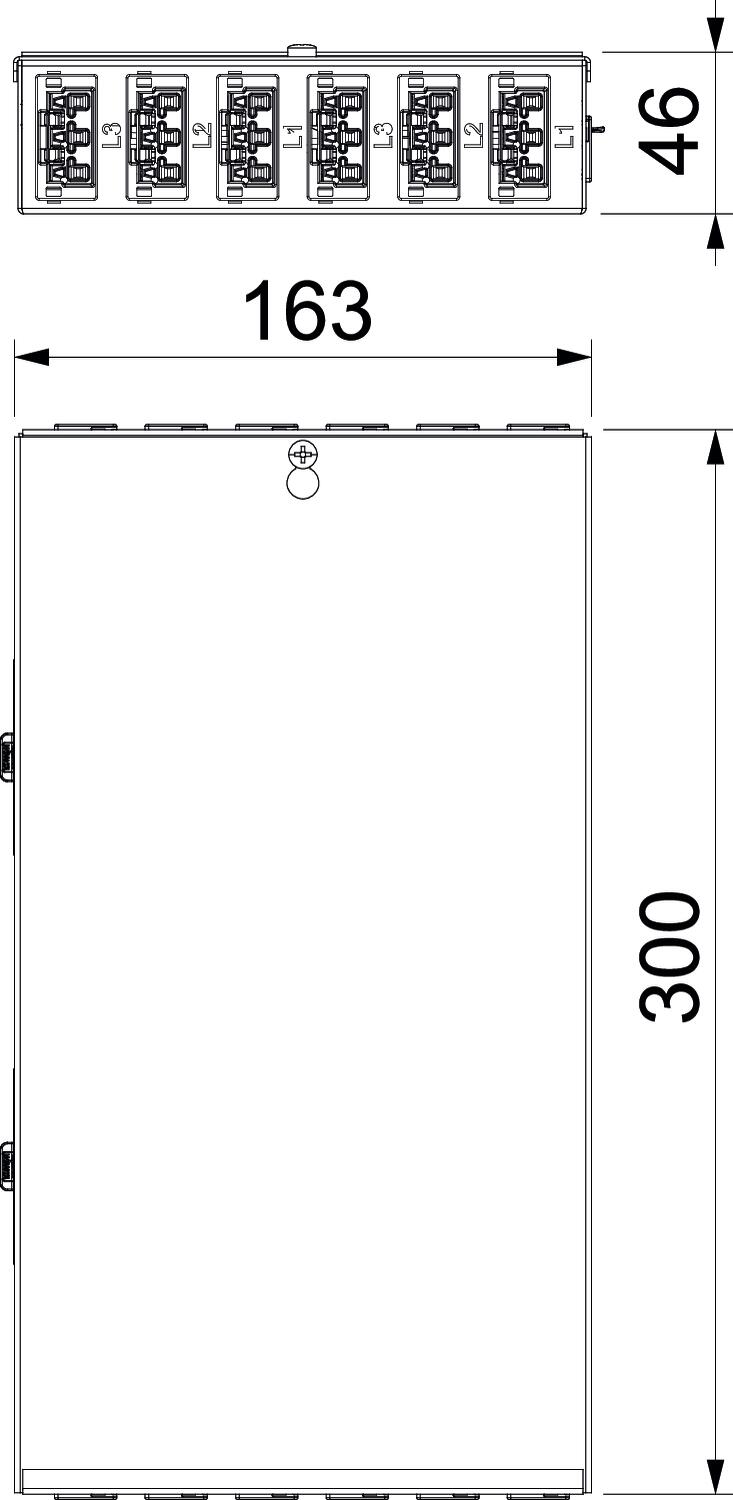

Dimension 300x163x46
Height 46 mm
Input 5-pole
Length 196 mm
Material Steel
No. of outlets 6
Number of input circuits 2
Plug connector system, system-specific yes
Width 149 mm
All types

All types

Types Item no. Quantity SSU
UVS-WIN 6S6W 6107990
5 piece
Downloads

Download
Download
Download

No invitation to tender text is available for this product.
