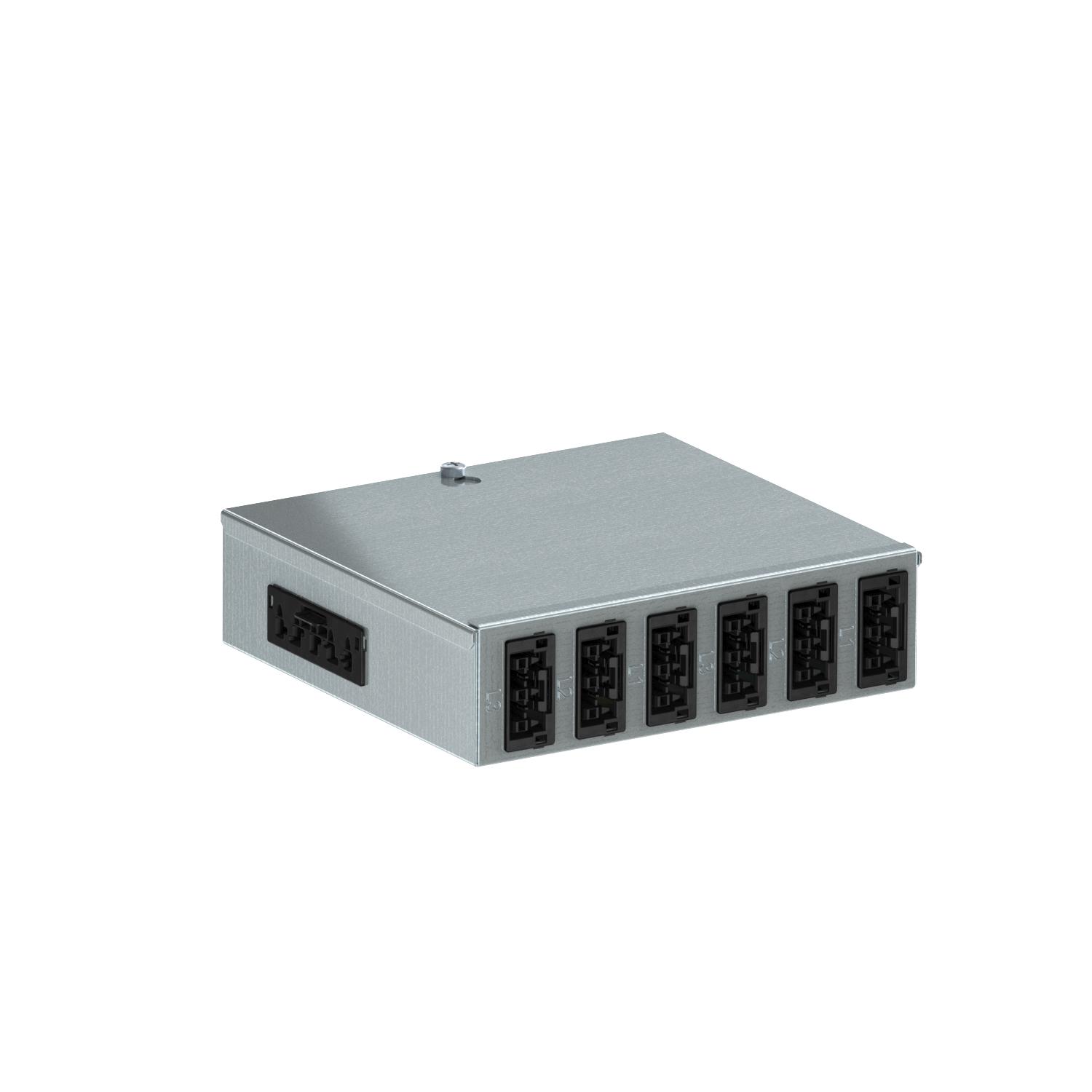

UVS energy distributor with plug connection, normal circuit

Item no. 6107986 | EAN 4012196688173

Product description

Product description

Input: 1x three-phase circuit using a self-locking plug connector, 5-pin, type WINSTA® MIDI (connector part).

Output: 6 self-locking plug connectors, 3-pin, in black, 25 A, type WINSTA® MIDI (socket part: 2x L1, 2x L2, 2x L3).

Internal wiring: PVC non-sheathed cable H07V-U2.5.
Input: 1x three-phase circuit using a self-locking plug connector, 5-pin, type WINSTA® MIDI (connector part).

Output: 6 self-locking plug connectors, 3-pin, in black, 25 A, type WINSTA® MIDI (socket part: 2x L1, 2x L2, 2x L3).

Internal wiring: PVC non-sheathed cable H07V-U2.5.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour of the plug connector system Black
Connection type Plug-in system
Cross-section of the connection cable 4 mm²
Dimension 150x163x46
Height 46 mm
Input 5-pole
Length 196 mm
Material Steel
No. of outlets 6
Number of input circuits 1
Plug connector system, system-specific yes
Width 149 mm
All types

All types

Types Item no. Quantity SSU
UVS-WIN 6S 6107986
5 piece
