- Product description
-
Product descriptionInput: 2x three-phase circuit via a screwless terminal block, 5-pin, for cable cross-sections of 0.5–4 mm².

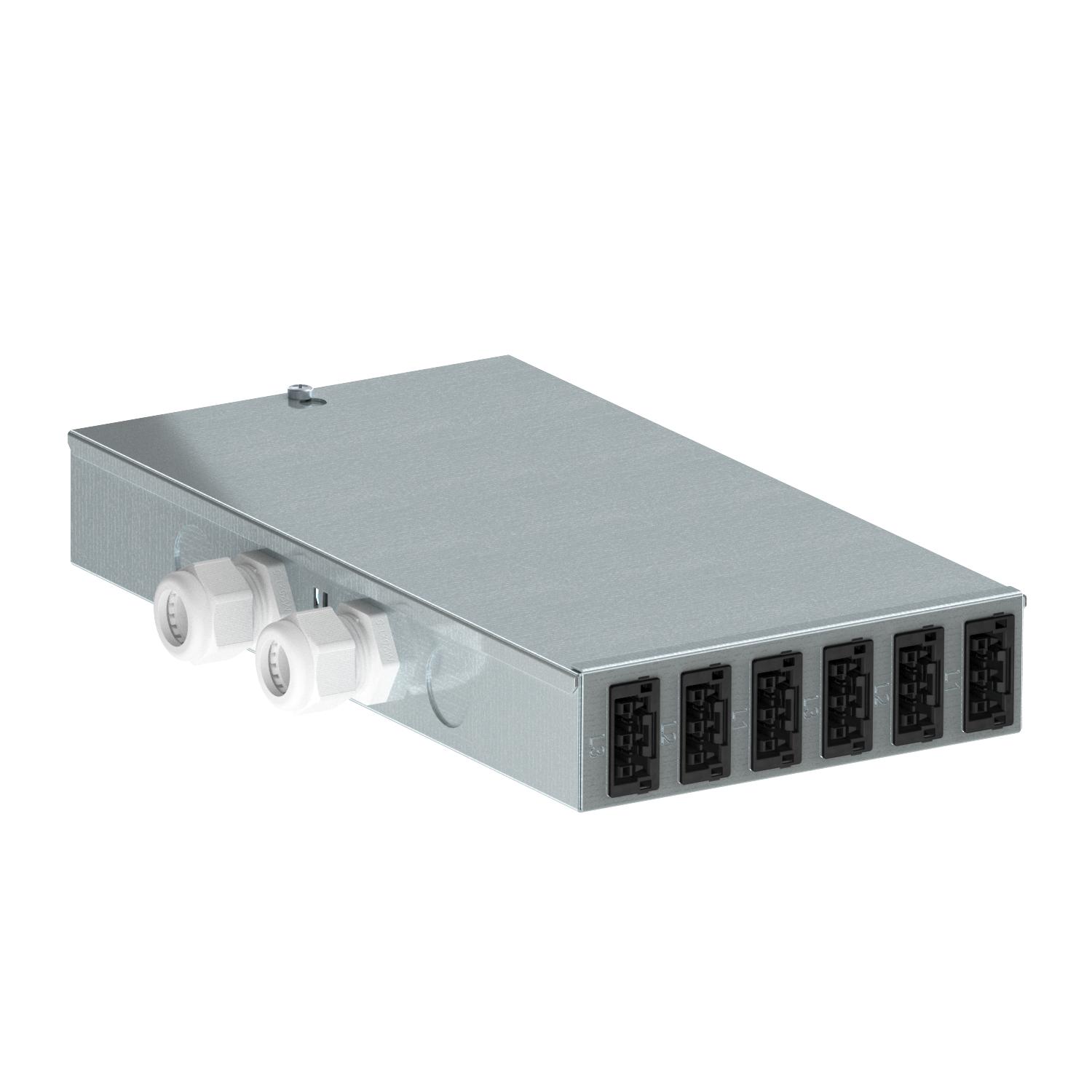

Output: 12 self-locking plug connectors, 3-pin, in white (6x) and black (6x), 25 A, type WINSTA® MIDI (socket part: 2x L1, 2x L2, 2x L3 for each rotary current circuit).
Internal wiring: PVC non-sheathed cable H07V-U2.5.
Input: 2x three-phase circuit via a screwless terminal block, 5-pin, for cable cross-sections of 0.5–4 mm².
Output: 12 self-locking plug connectors, 3-pin, in white (6x) and black (6x), 25 A, type WINSTA® MIDI (socket part: 2x L1, 2x L2, 2x L3 for each rotary current circuit).
Internal wiring: PVC non-sheathed cable H07V-U2.5.
- Technical data
-
Technical data

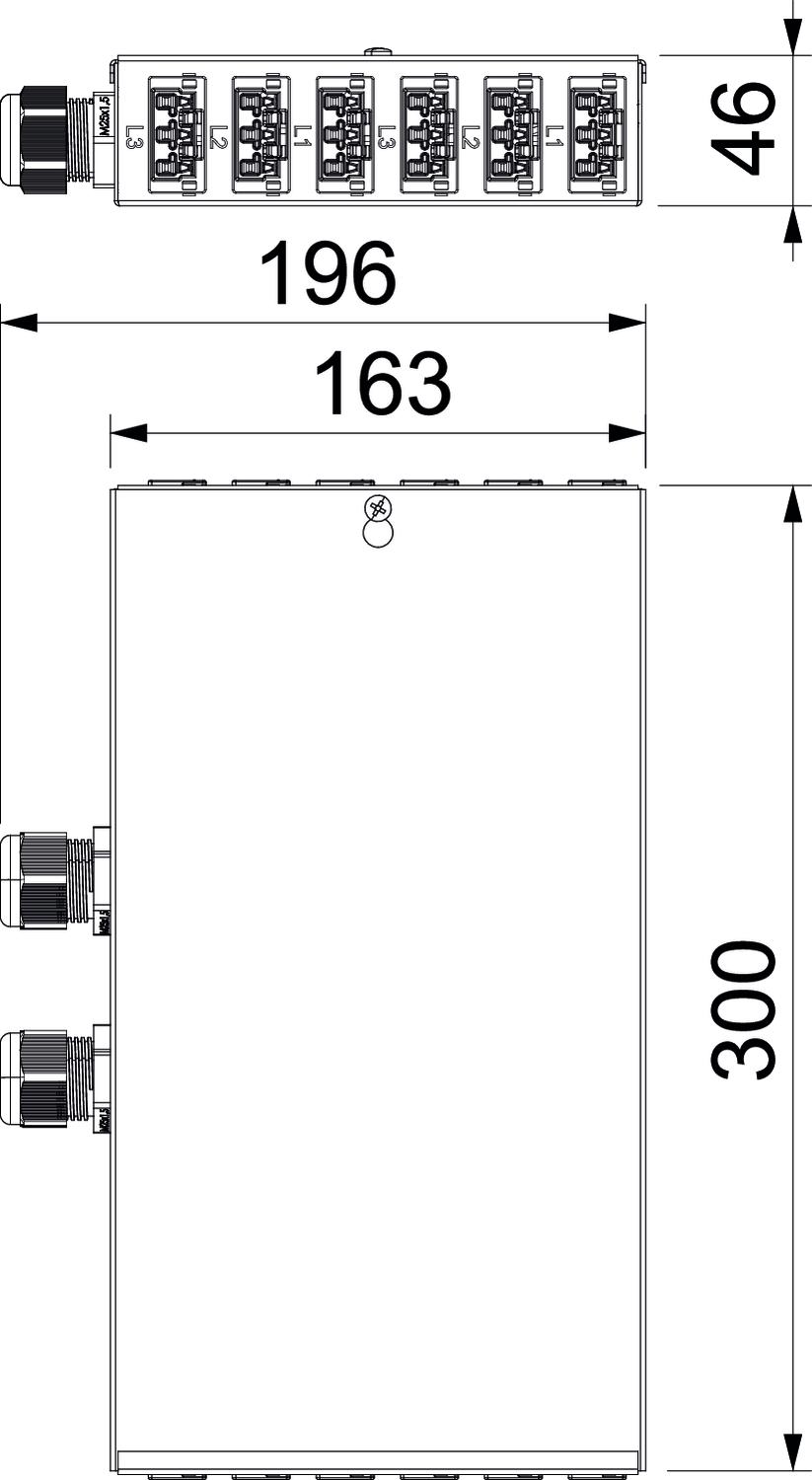

Colour of the plug connector system Black/white Connection type Terminal block Cross-section of the connection cable 4 mm² Dimension 300x196x46 Height 46 mm Input 5-pole Length 300 mm Material Steel No. of outlets 12 Number of input circuits 2 Plug connector system, system-specific yes Width 163 mm - All types
- Downloads
-
Data sheet UVS-WIN F6S6W / 6107984 , 0.19MB , pdfCatalogue Installation systems , 28.45MB , pdfEU declaration of conformity UVS-WIN F6S6W / 6107984 , 0.13MB , pdfMounting instructions Mounting instructions, UVS Winsta Midi for 2 circuits , 0.10MB , pdf
