- Product description
-

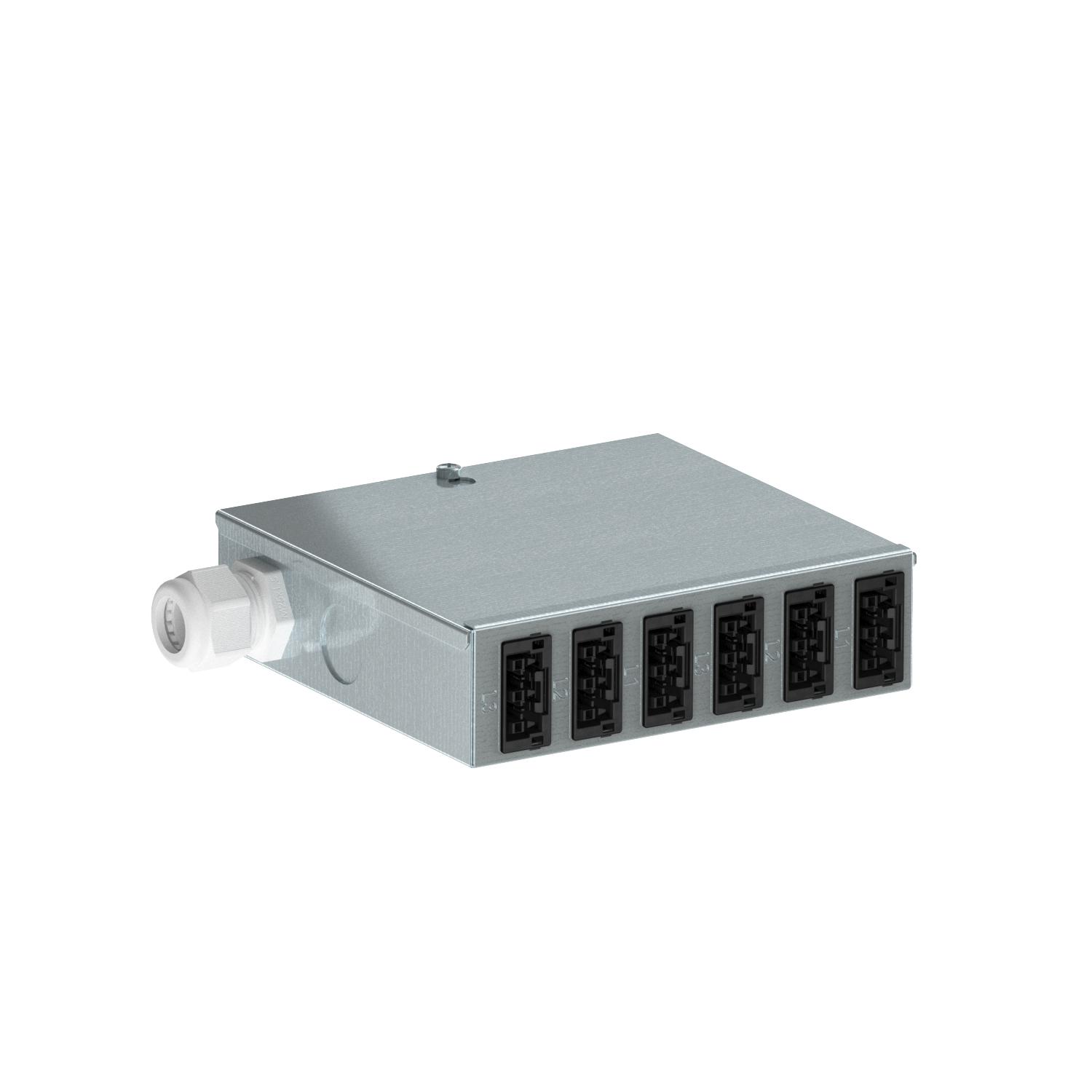

Product descriptionEnergy distributor for heavy current technology with fixed connection, equipped and pre-wired.
Input: 1x three-phase circuit via a screwless terminal block, 5-pin, for cable cross-sections of 0.5–4 mm².
Output: 6 self-locking plug connectors, 3-pin, in black, 25 A, type WINSTA (socket part: 2x L1, 2x L2, 2 x L3
Internal wiring: H07V-U2.5
Input: 1x three-phase circuit via a screwless terminal block, 5-pin, for cable cross-sections of 0.5–4 mm².
Output: 6 self-locking plug connectors, 3-pin, in black, 25 A, type WINSTA® MIDI (socket part: 2x L1, 2x L2, 2x L3).
Internal wiring: PVC non-sheathed cable H07V-U2.5.
- Technical data
-
Technical data
Colour of the plug connector system Black Connection type Terminal block Cross-section of the connection cable 4 mm² Dimension 150x196x46 Height 46 mm Input 5-pole Length 196 mm Material Steel No. of outlets 6 Number of input circuits 1 Plug connector system, system-specific yes Width 149 mm - All types
- Downloads
-
Data sheet UVS-WIN F6S / 6107980 , 0.18MB , pdfCatalogue Installation systems , 28.45MB , pdfEU declaration of conformity UVS-WIN F6S / 6107980 , 0.13MB , pdfMounting instructions Mounting instructions, UVS Winsta Midi for 1 circuit , 0.10MB , pdf
