UVS-WIN energy distributor with fixed connection, special circuit
Item no. 6107982 | EAN 4012196688159
- Product description
-

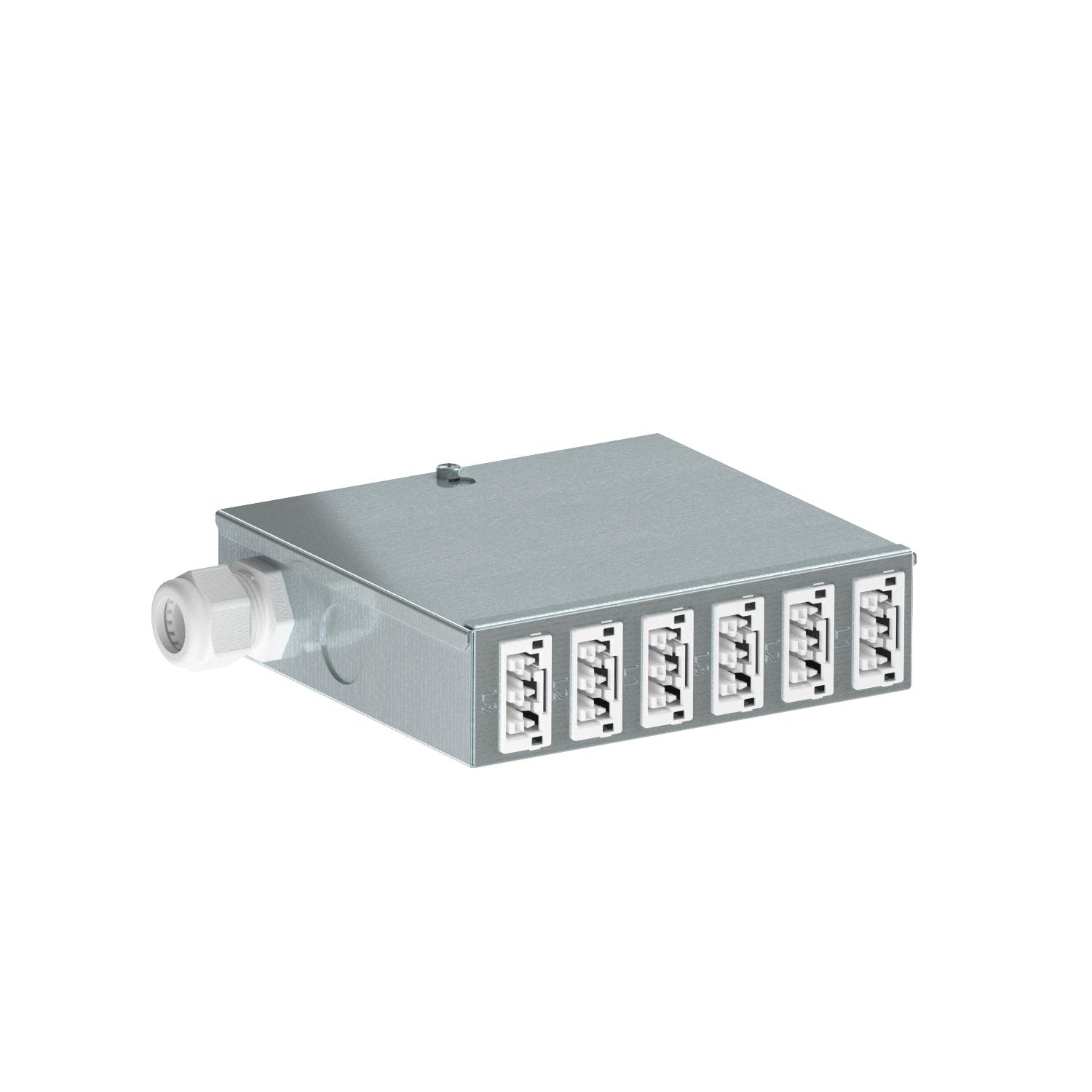

Product descriptionEnergy distributor for heavy current technology with fixed connection, equipped and pre-wired.
Input: 1x three-phase circuit via a screwless terminal block, 5-pin, for cable cross-sections of 0.5–4 mm².
Output: 6 self-locking plug connectors, 3-pin, in white, 25 A, type WINSTA (socket part 2x L1, 2x L2, 2 x L3)
Internal wiring: H07V-U2.5
Input: 1x rotary current circuit via a screwless terminal block, 5-pin, for cable cross-sections of 0.5–4 mm².
Output: 6 self-locking plug connectors, 3-pin, in white, 25 A, type WINSTA® MIDI (socket part: 2x L1, 2x L2, 2x L3).
Internal wiring: PVC non-sheathed cable H07V-U2.5.
- Technical data
-
Technical data

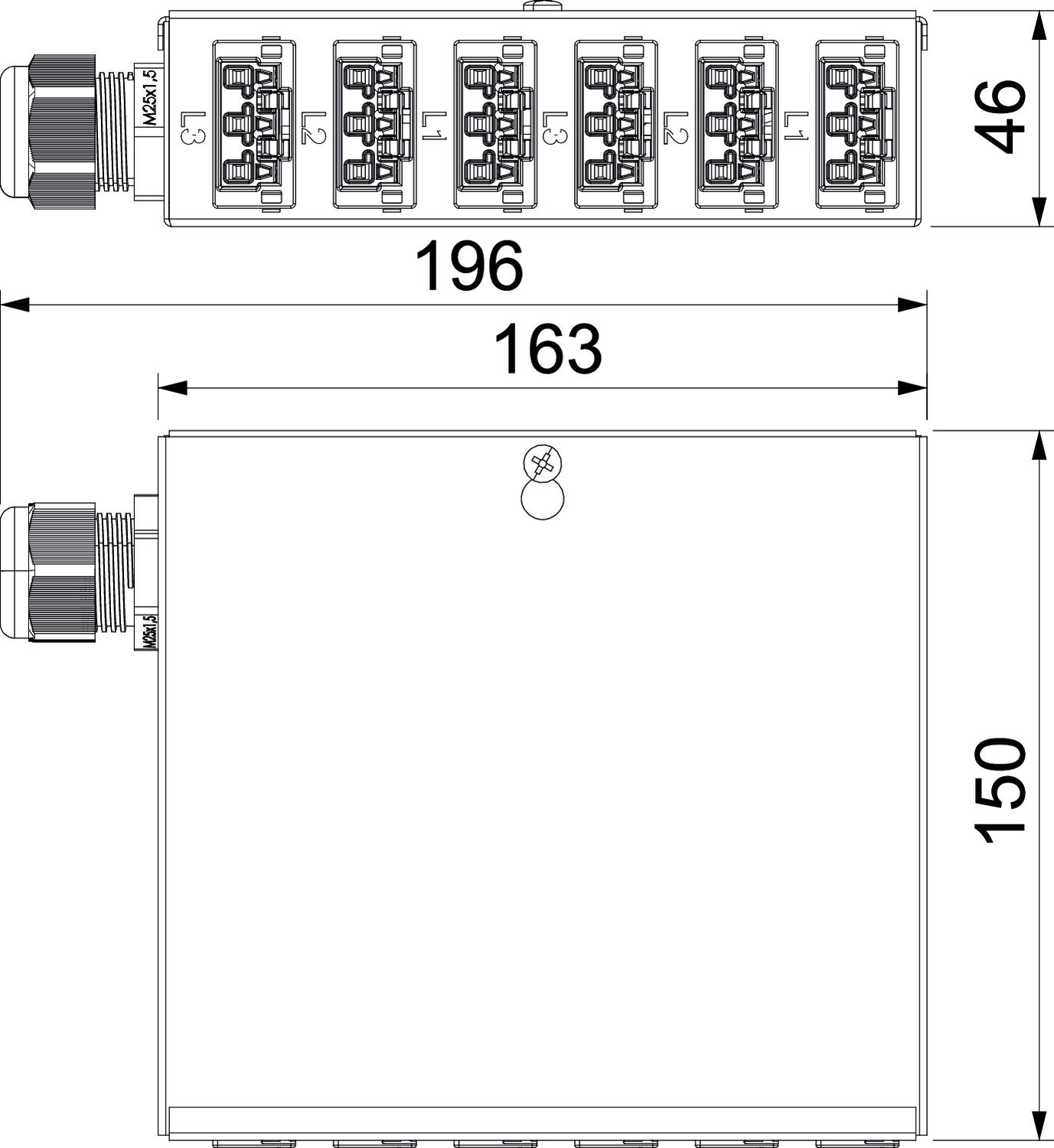

Colour of the plug connector system White Connection type Terminal block Cross-section of the connection cable 4 mm² Dimension 150x196x46 Height 46 mm Input 5-pole Length 196 mm Material Steel No. of outlets 6 Number of input circuits 1 Plug connector system, system-specific yes Width 149 mm - All types
