VA cable bracket with tightening strap

Item no. 5408052 | EAN 4012195674726

Product description

Product description

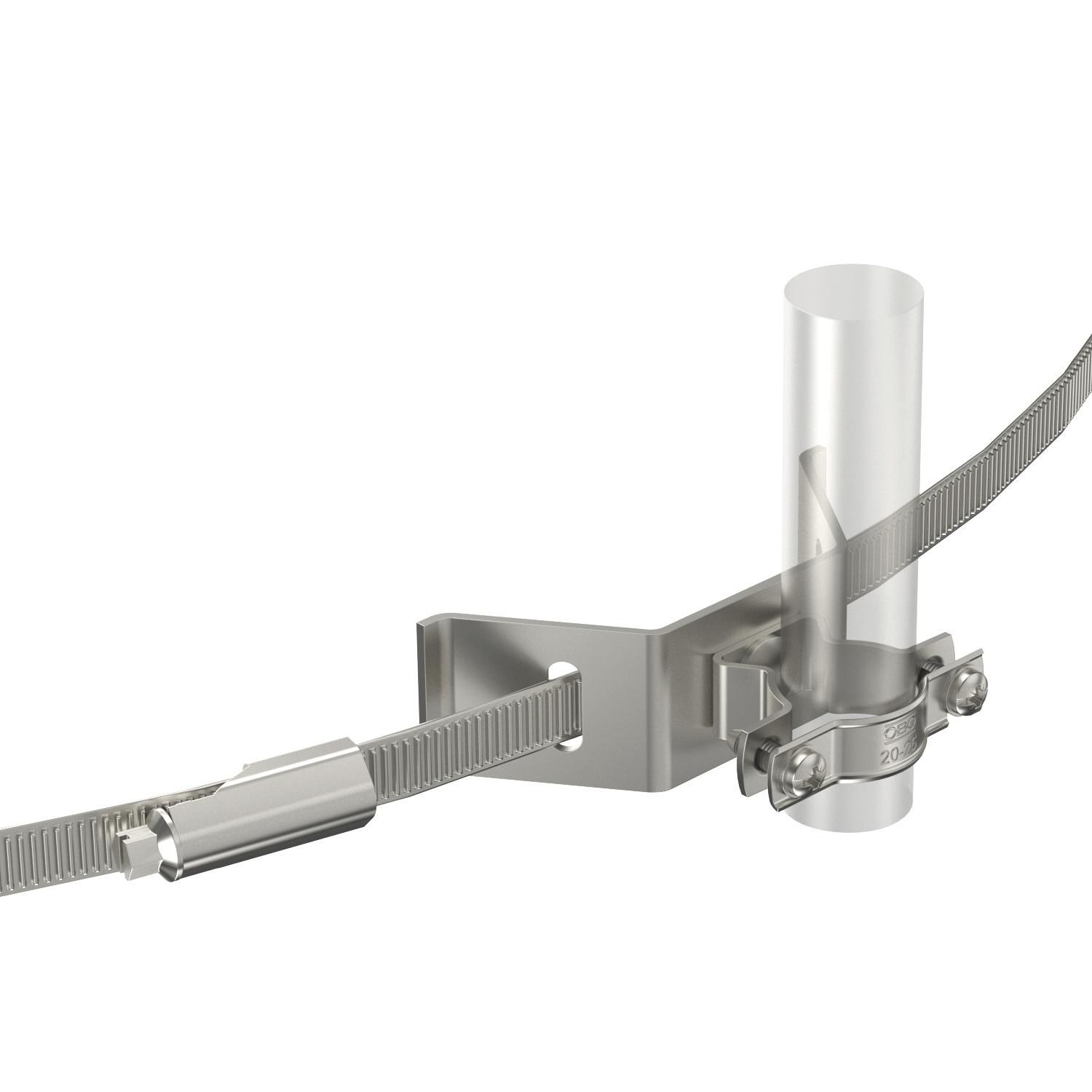

Cable bracket with tightening strap for isCon® conductor, for mounting on pipes with Ø ≤ 600 mm. Including sprung discs to protect the screws against loosening.

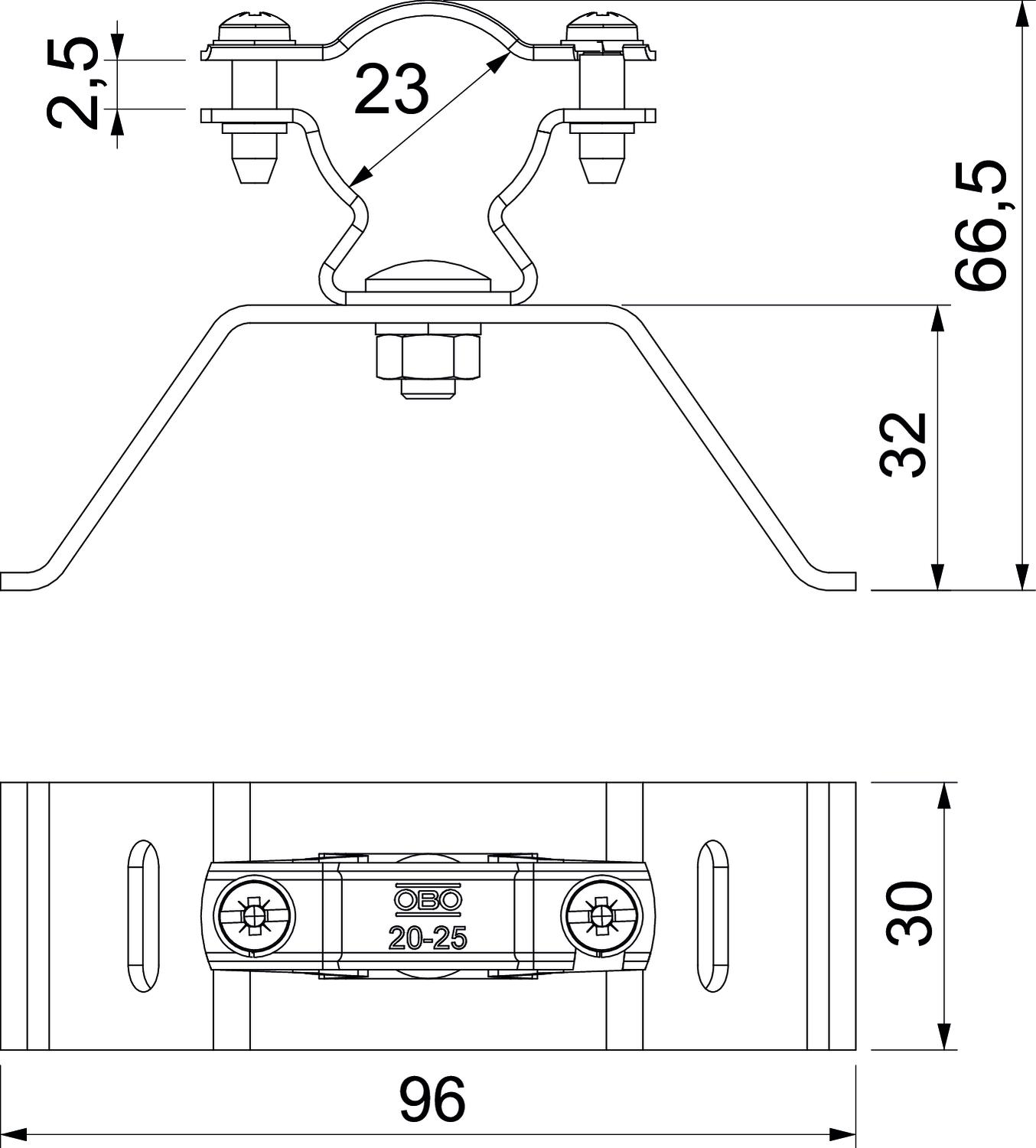

Technical data

Technical data

Colour Black
Dimension Ø23mm
Dimension d min. 23 mm
Dimension H 66,5 mm
Dimension L 2,5 mm
Material Stainless steel
Material lower part V2A
Material of the base Stainless steel, rustproof 1.4301
Material of the crossbar Stainless steel, rustproof 1.4301
Material upper part V2A
All types

All types

Types Dimension d min. Item no. Quantity SSU
isCon HS VA 23 mm 5408052
10 piece
isCon HS 26 VA 26 mm 5408068
10 piece
