- Product description
-
Product description

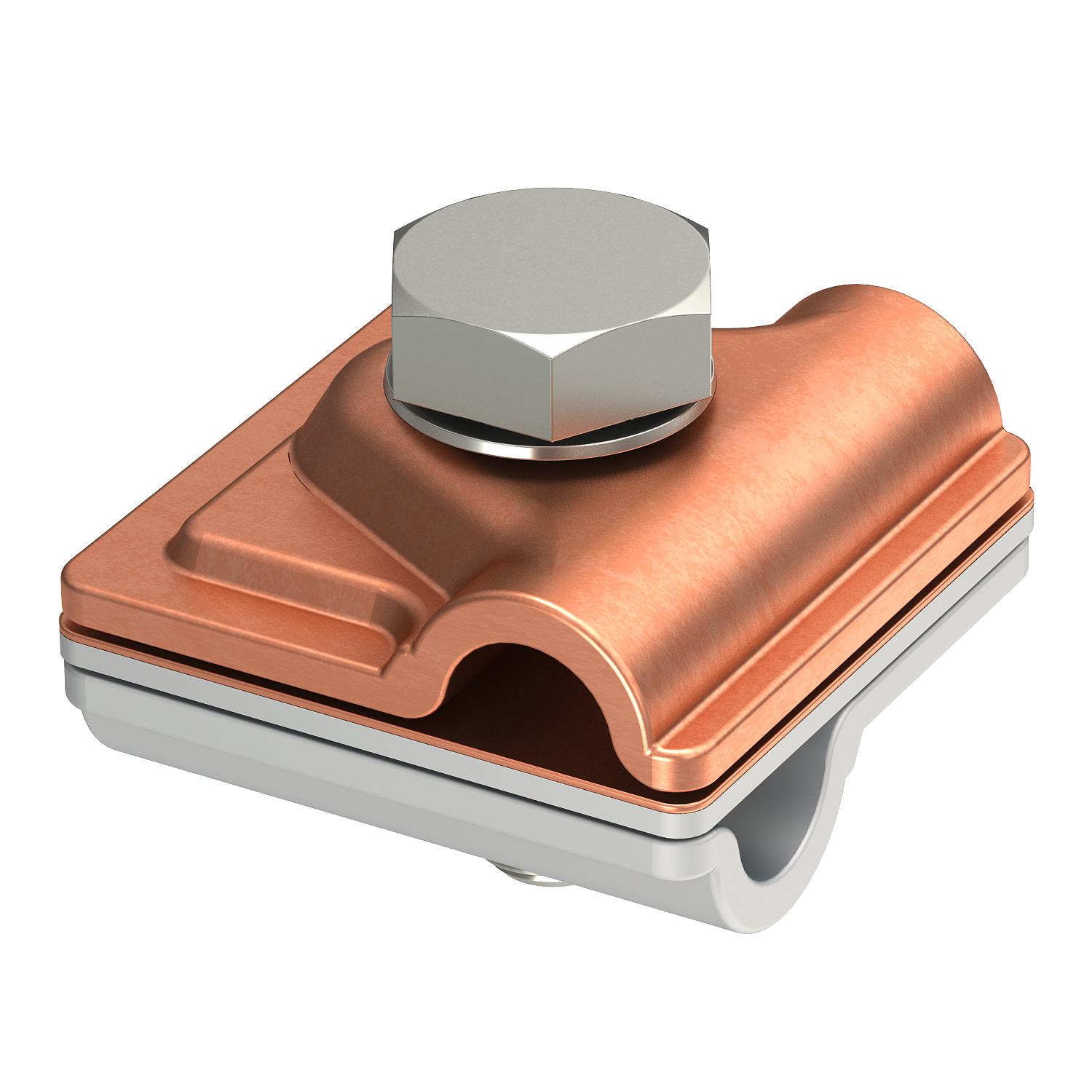

• Intermediate plate, copper/aluminium, top section copper and aluminium

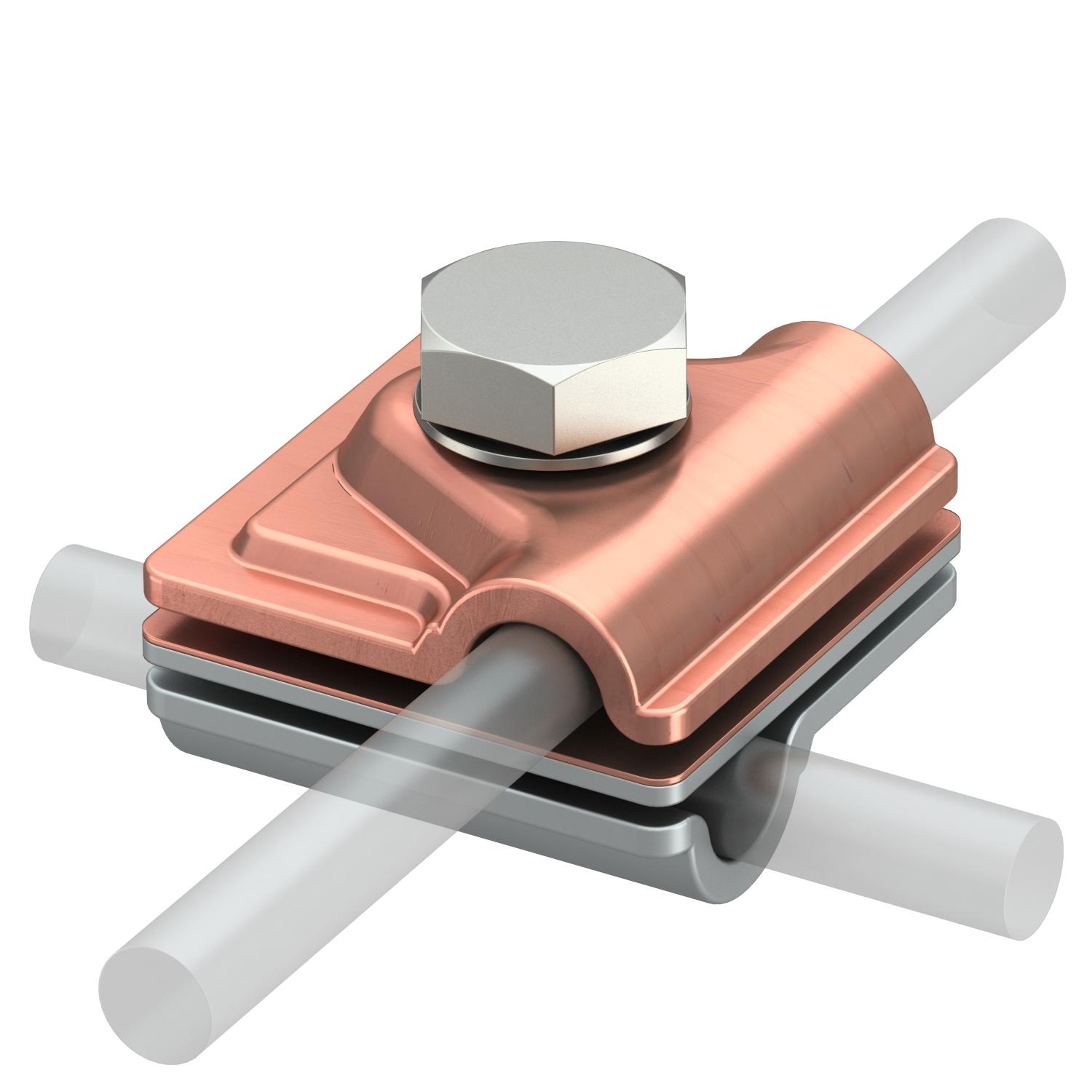

• For T, cross and parallel connectors
• Quick installation using hexagonal bolt M10 x 30, high-grade stainless steel
• With spring washer according to DIN 137
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
- Technical data
-
Technical data

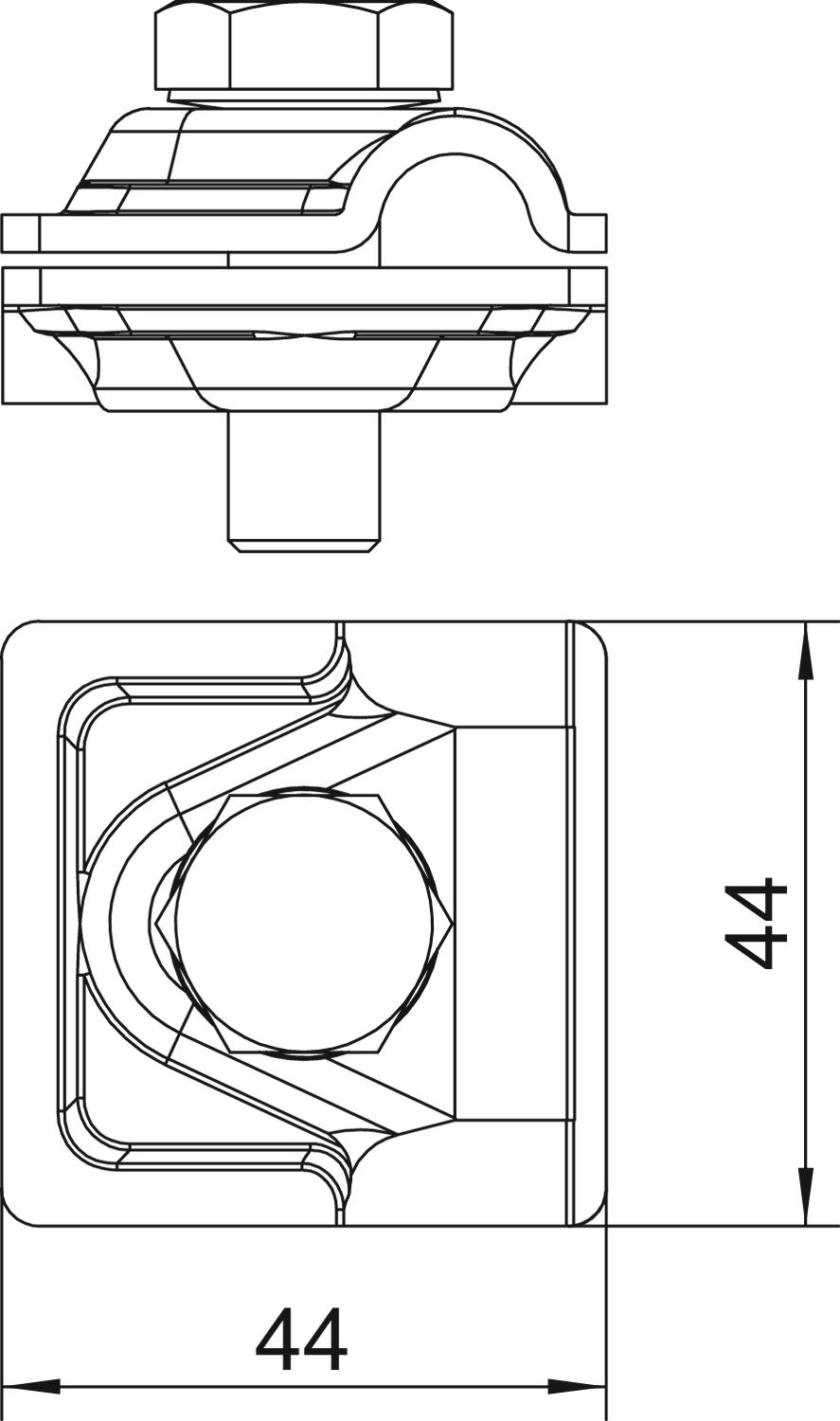

Dimension 44x44mm Dimension A 44 mm Fit Rd 8-10 mm Intermediate plate yes Lightning current carrying capacity H/100 kA Material Copper Material lower part Cu Material upper part Al Round conductor diameter, conductor 1, max. 10 mm Round conductor diameter, conductor 1, min. 8 mm Round conductor diameter, conductor 2, max. 10 mm Round conductor diameter, conductor 2, min. 8 mm Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Type of connector Multipurpose connection clamp Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 249 8-10 ZV / 5311535 , 0.21MB , pdfREACH Declaration of conformity 249 8-10 ZV / 5311535 , 0.12MB , pdfRoHS Declaration of conformity 249 8-10 ZV / 5311535 , 0.12MB , pdfMounting instructions Variable bi-metal quick connector , 0.92MB , pdf
