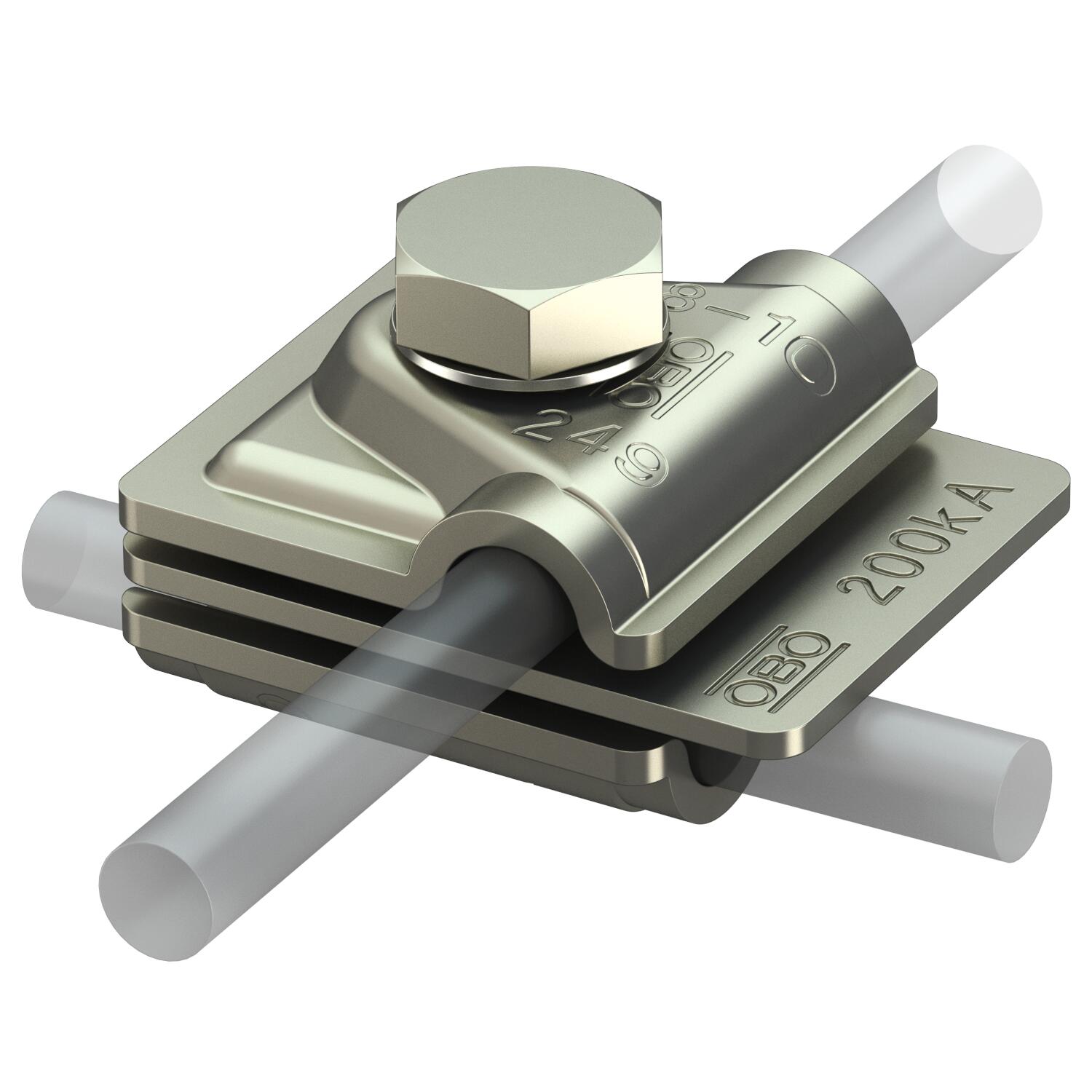

Vario quick connector 200 kA

Item no. 5311595 | EAN 4012196656141

5311595 / 249 8-10 V2A 200
Rd 8-10 mm
Product description

Product description

• For T, intersection and parallel connections
• Quick mounting using an M10 x 30 bolt, made from rustproof stainless steel
• Meets the requirements of VDE 0185-305 (IEC 62305)
• Tested according to VDE 0185-561-1 (IEC/EN 62561-1) with 200 kA
• For use in lightning protection class I with the isCon® Premium conductor



  • Lightning current-tested
Technical data

Technical data

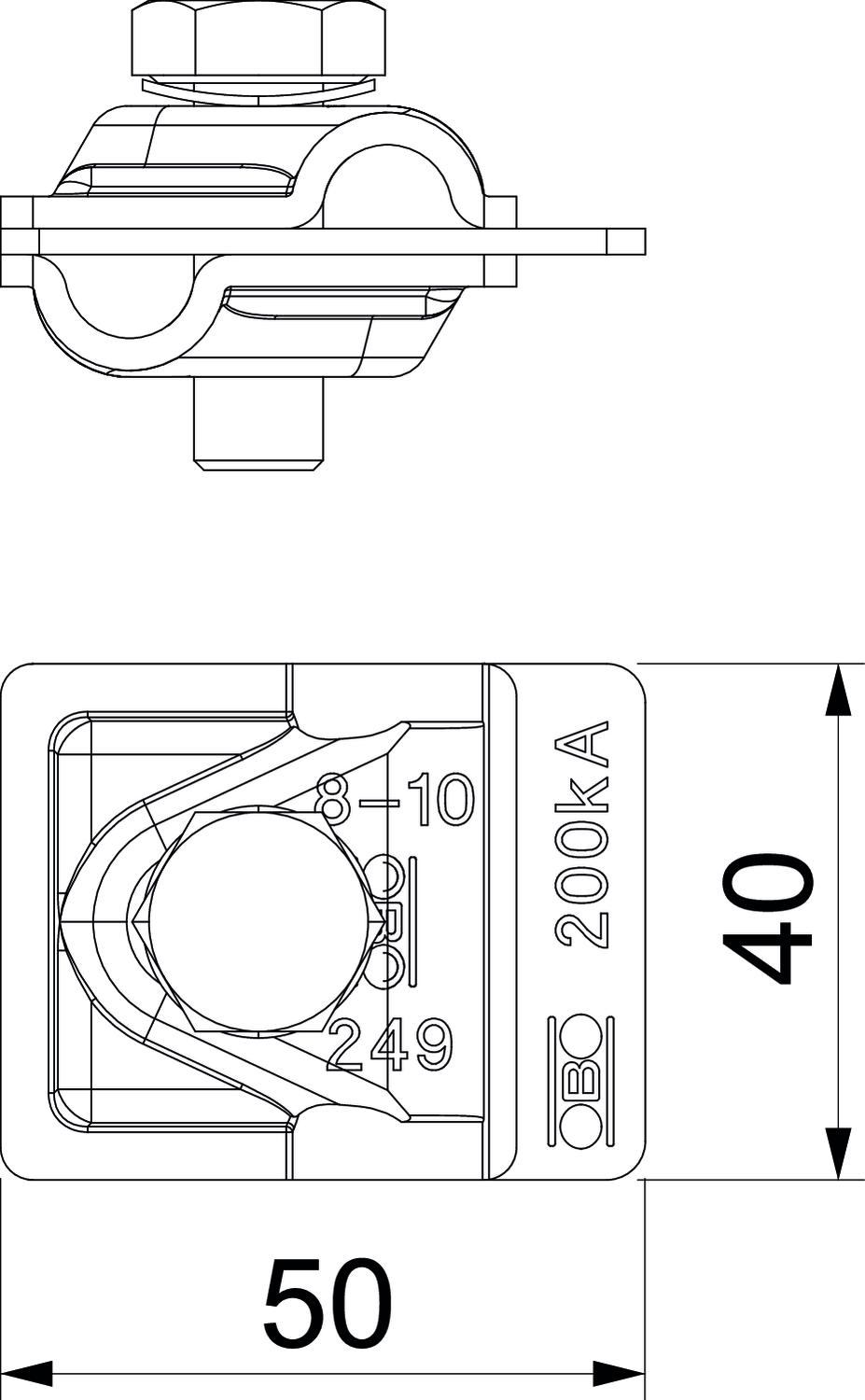

Dimension 50x40mm
Fit Rd 8-10 mm
Intermediate plate no
Lightning current carrying capacity H2/200 kA
Material Stainless steel
Round conductor diameter, conductor 1, max. 10 mm
Round conductor diameter, conductor 1, min. 8 mm
Round conductor diameter, conductor 2, max. 10 mm
Round conductor diameter, conductor 2, min. 8 mm
Suitable for connection Round conductor Rd 8–10 / Rd 8–10
Type of connector Multipurpose connection clamp
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Item no. Quantity SSU
249 8-10 V2A 200 Rd 8-10 mm 5311595
10 piece
