- Product description
-

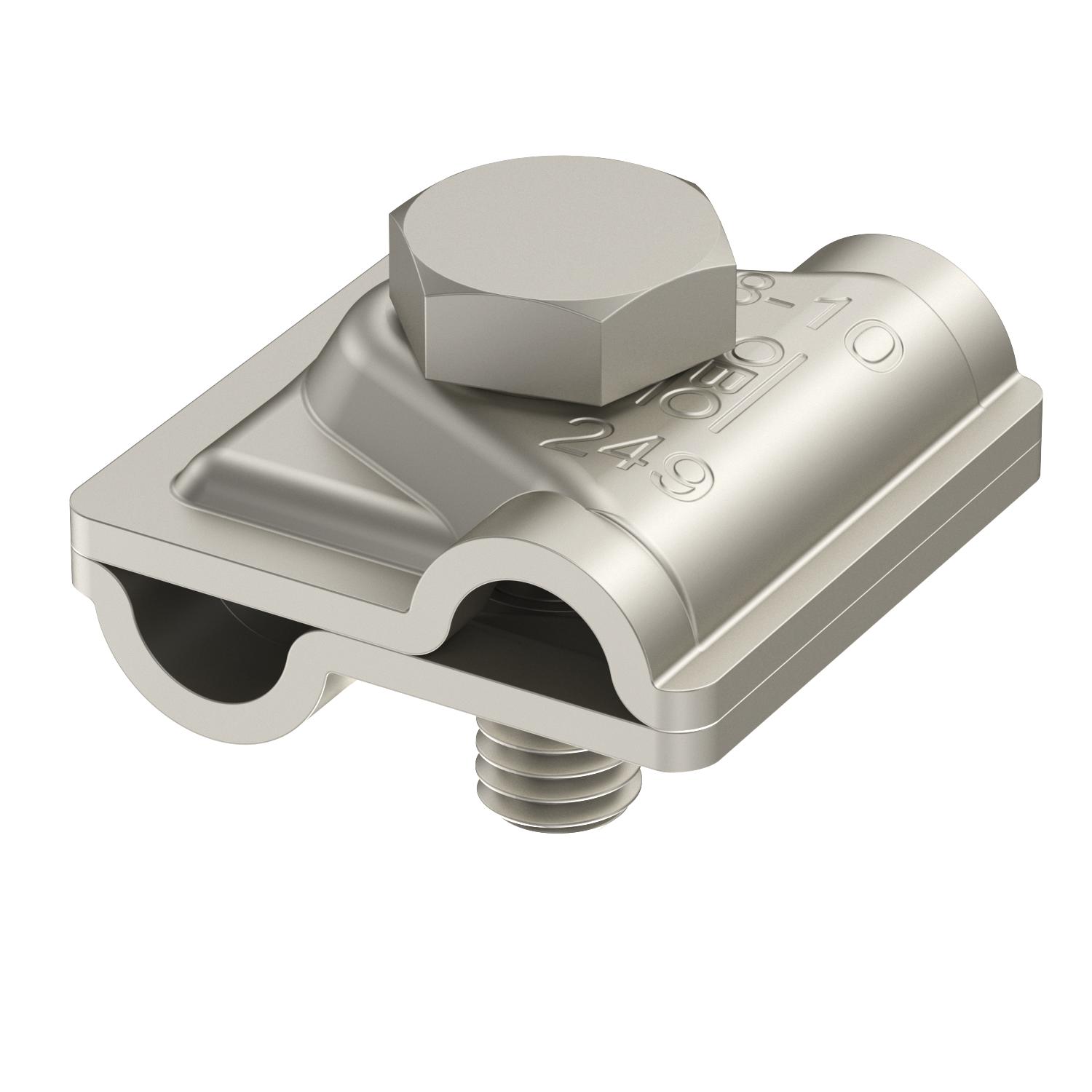

Product description

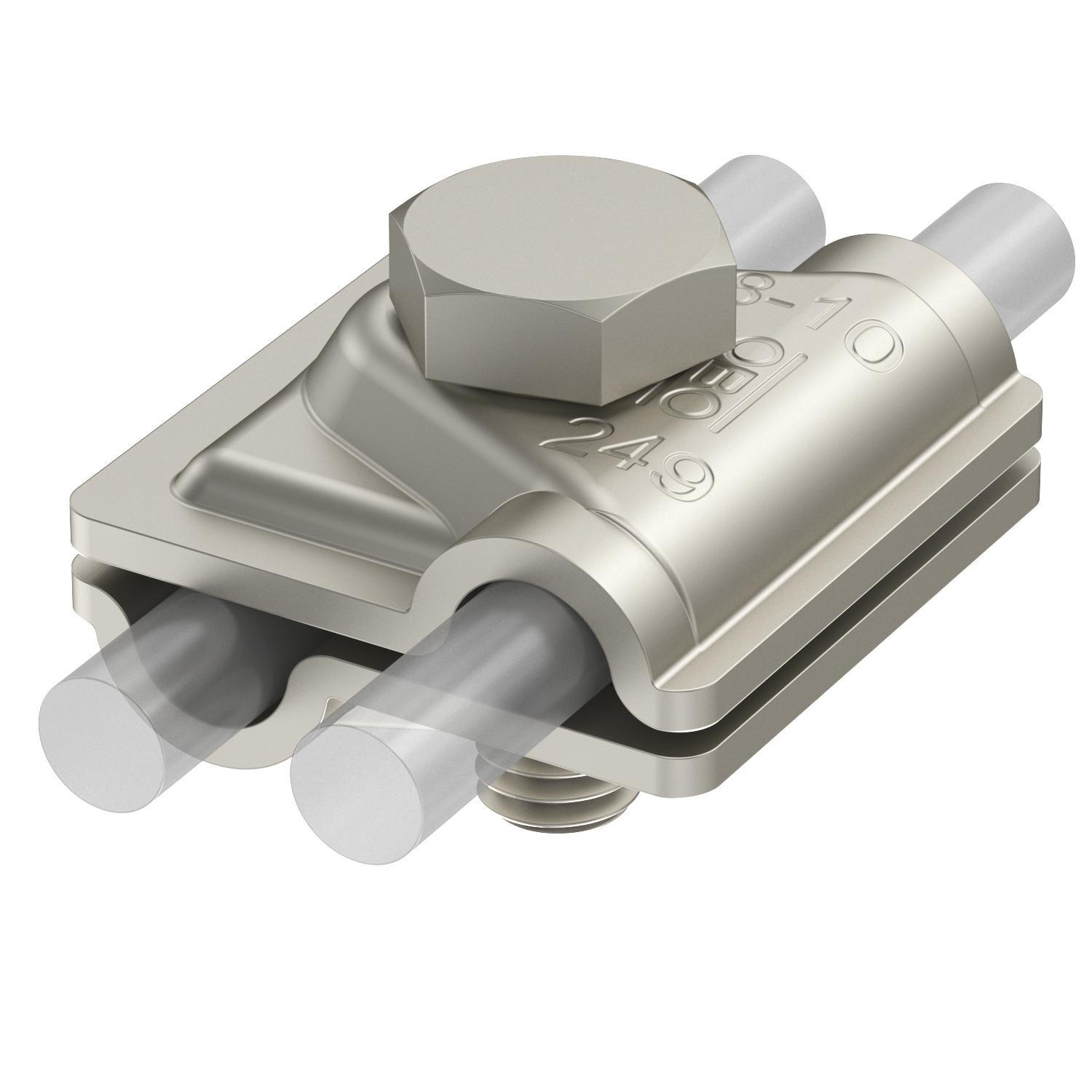

• For T, intersection and parallel connections
• Quick mounting using an M10 x 35 bolt, made from V4A
• Meets the requirements of VDE 0185-305 (IEC 62305)
- Technical data
-
Technical data
Dimension 40x40mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity H/100 kA Material Stainless steel Round conductor diameter, conductor 1, max. 10 mm Round conductor diameter, conductor 1, min. 8 mm Round conductor diameter, conductor 2, max. 10 mm Round conductor diameter, conductor 2, min. 8 mm Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Type of connector Multipurpose connection clamp Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 249 S7 V4A / 5311405 , 0.20MB , pdf
English
