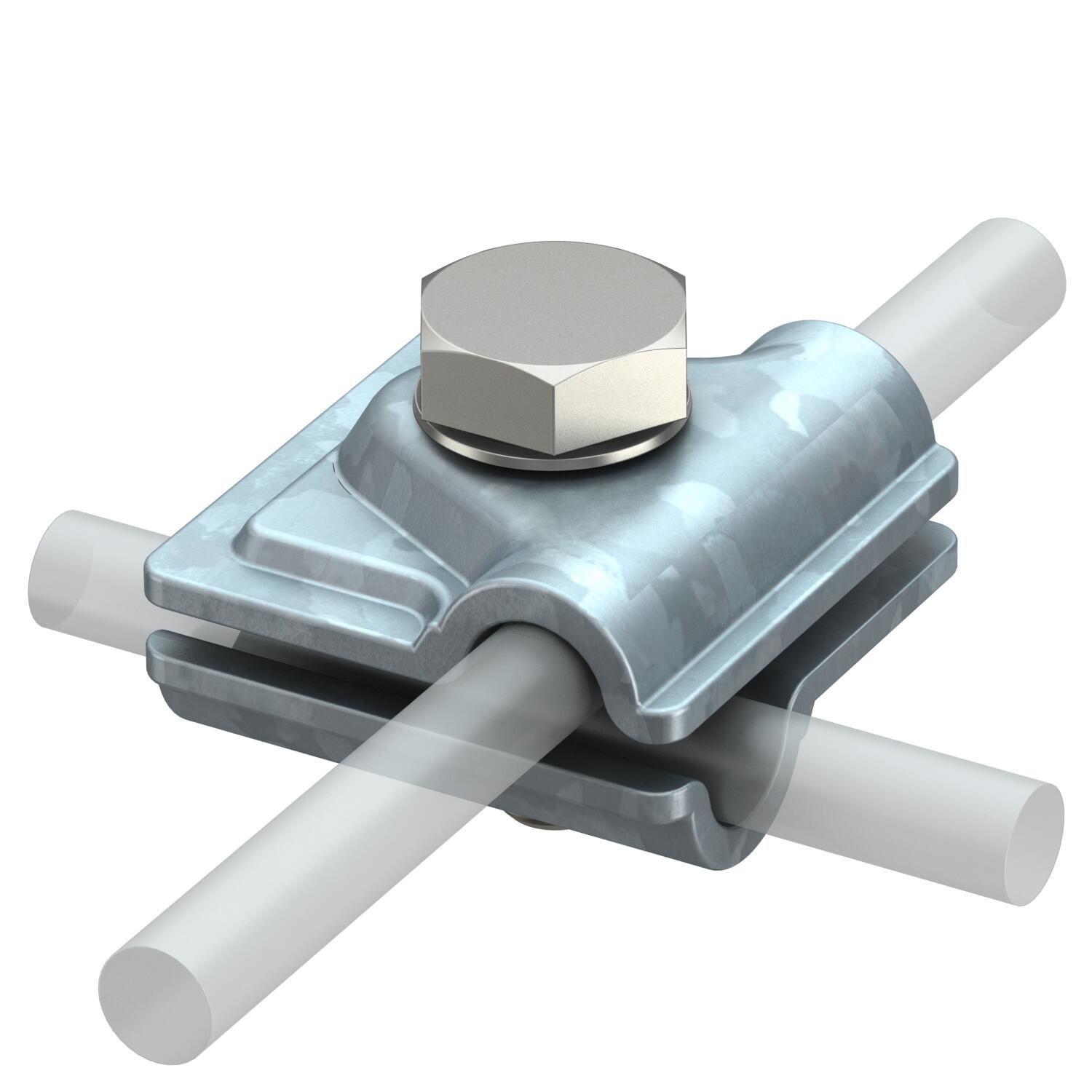

Vario quick connector FT
Item no. 5311500 | EAN 4012195417675
- Product description
-
Product description
• For T, cross and parallel connectors
• Quick installation using hexagonal bolt M10 x 30, high-grade stainless steel
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)
-
- Technical data
-
Technical data

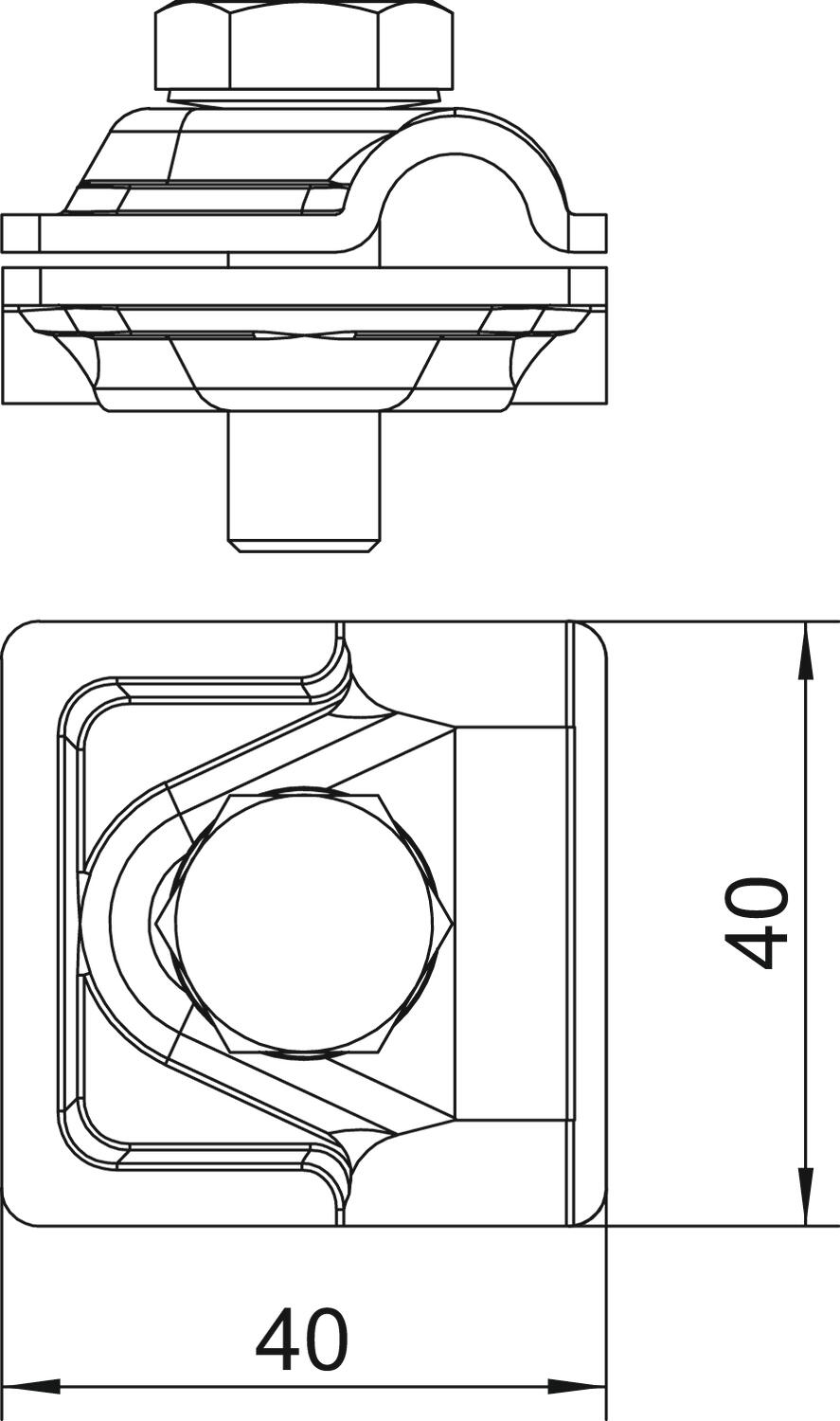

Dimension 40x40mm Dimension A 40 mm Fit Rd 8-10 mm Intermediate plate no Lightning current carrying capacity H/100 kA Material Steel Round conductor diameter, conductor 1, max. 10 mm Round conductor diameter, conductor 1, min. 8 mm Round conductor diameter, conductor 2, max. 10 mm Round conductor diameter, conductor 2, min. 8 mm Short-circuit current (50 HZ)(1 s;≤300°C) 5,6 Suitable for connection Round conductor Rd 8–10 / Rd 8–10 Surface Hot-dip galvanised Type of connector Multipurpose connection clamp Type of fastening screw Hexagonal bolt - All types
