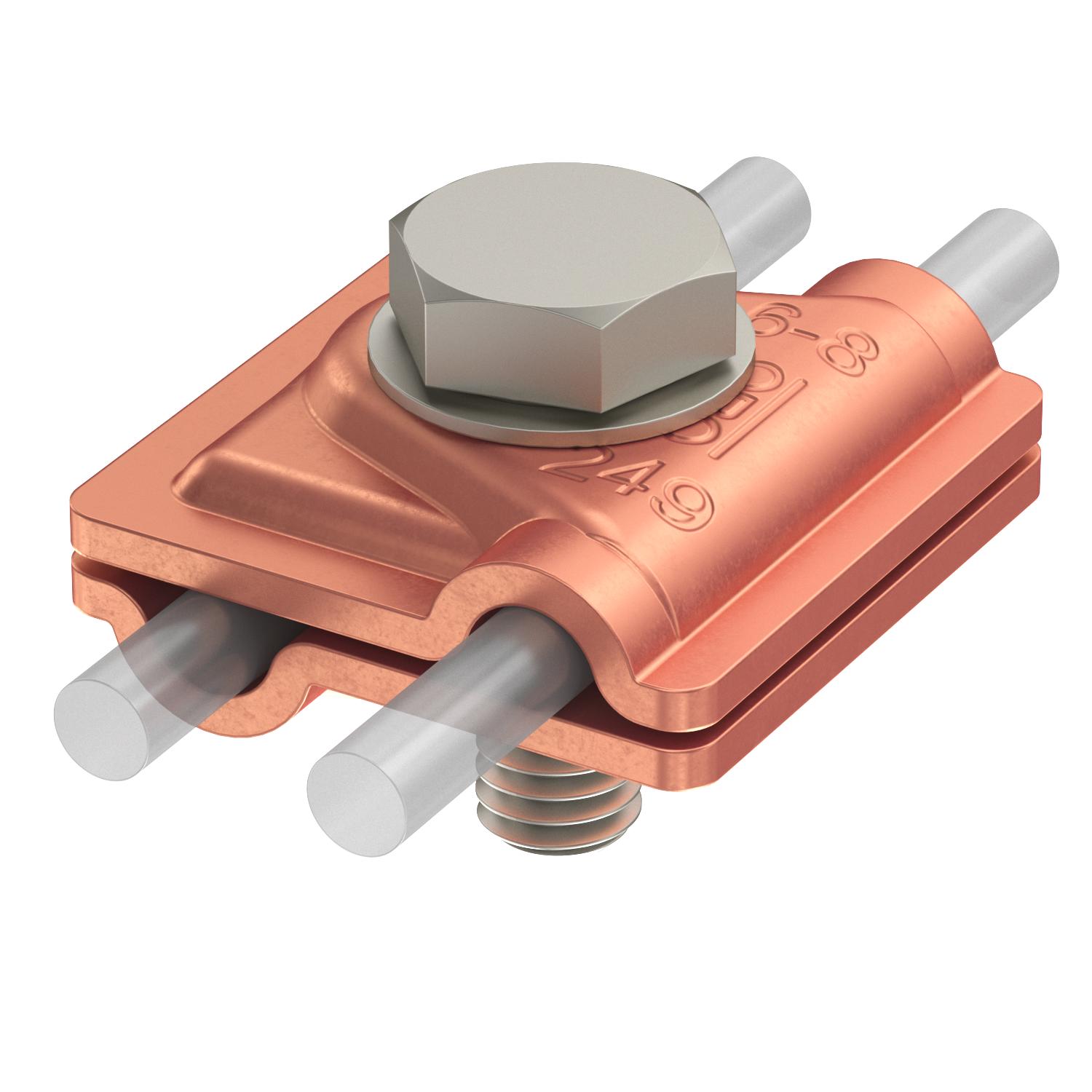

Vario quick connector Rd 6-8 / Rd 6-8 mm Cu

Item no. 5311421 | EAN 4012196787968

5311421 / 249 6-8 CU CH
RD 6-8 / 6-8 mm
Product description
Product description
• For T, cross-over and parallel connections
• Quick mounting using an M10 x 30 bolt, made from rustproof stainless steel (A2)
• Meets the requirements of VDE 0185-305 (IEC 62305)
  • Lightning current-tested
Technical data

Technical data

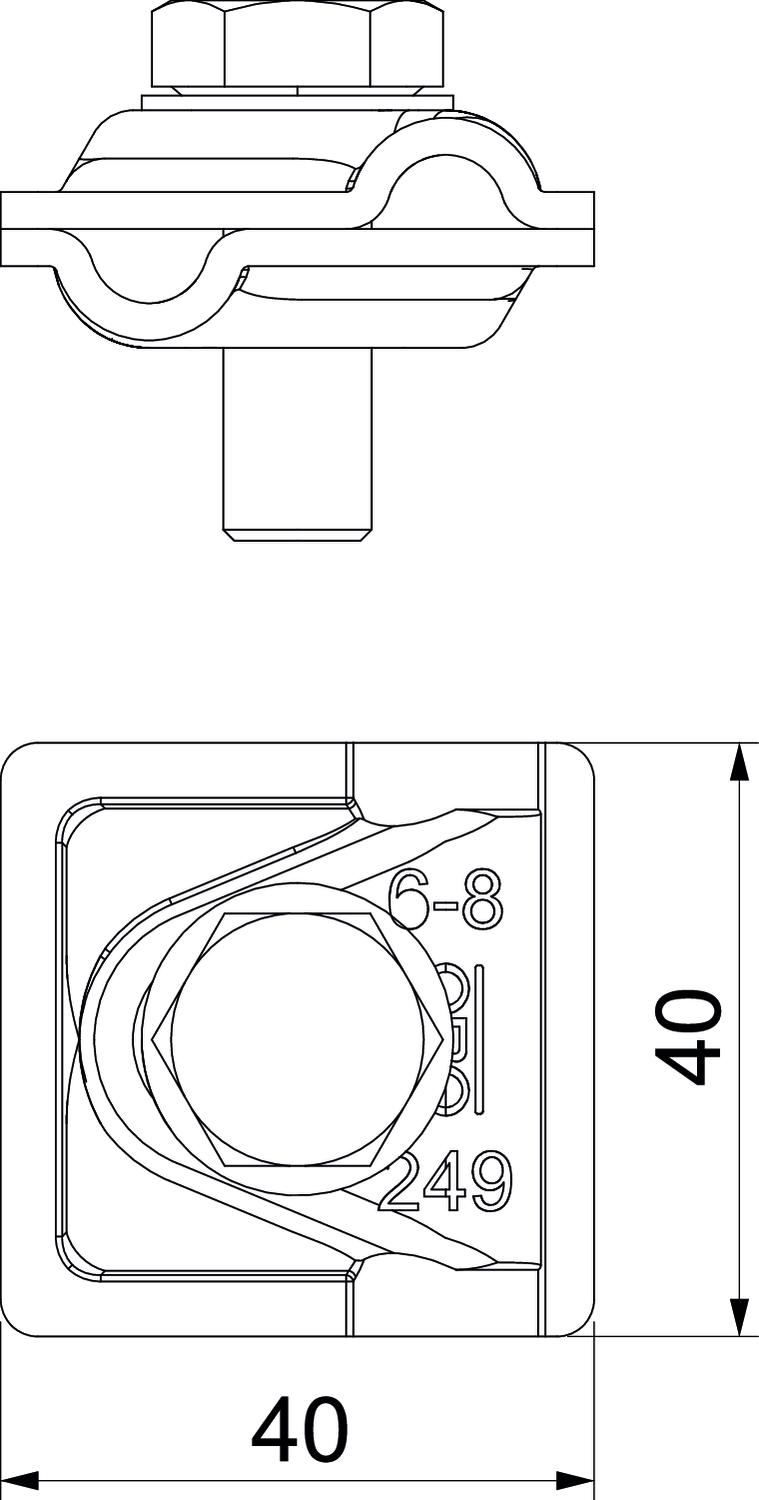

Dimension 40x40mm
Dimension A 40 mm
Fit RD 6-8 / 6-8 mm
Intermediate plate no
Lightning current carrying capacity H/100 kA
Material Copper
Suitable for connection Round conductor Rd 6-8 / Rd 6-8
Type of connector Multipurpose connection clamp
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Item no. Quantity SSU
249 6-8 CU CH RD 6-8 / 6-8 mm 5311421
10 piece
