Vertical bend, falling, duct height 120 mm, FS
Item no. 7218110 | EAN 4012197332150
- Product description
-

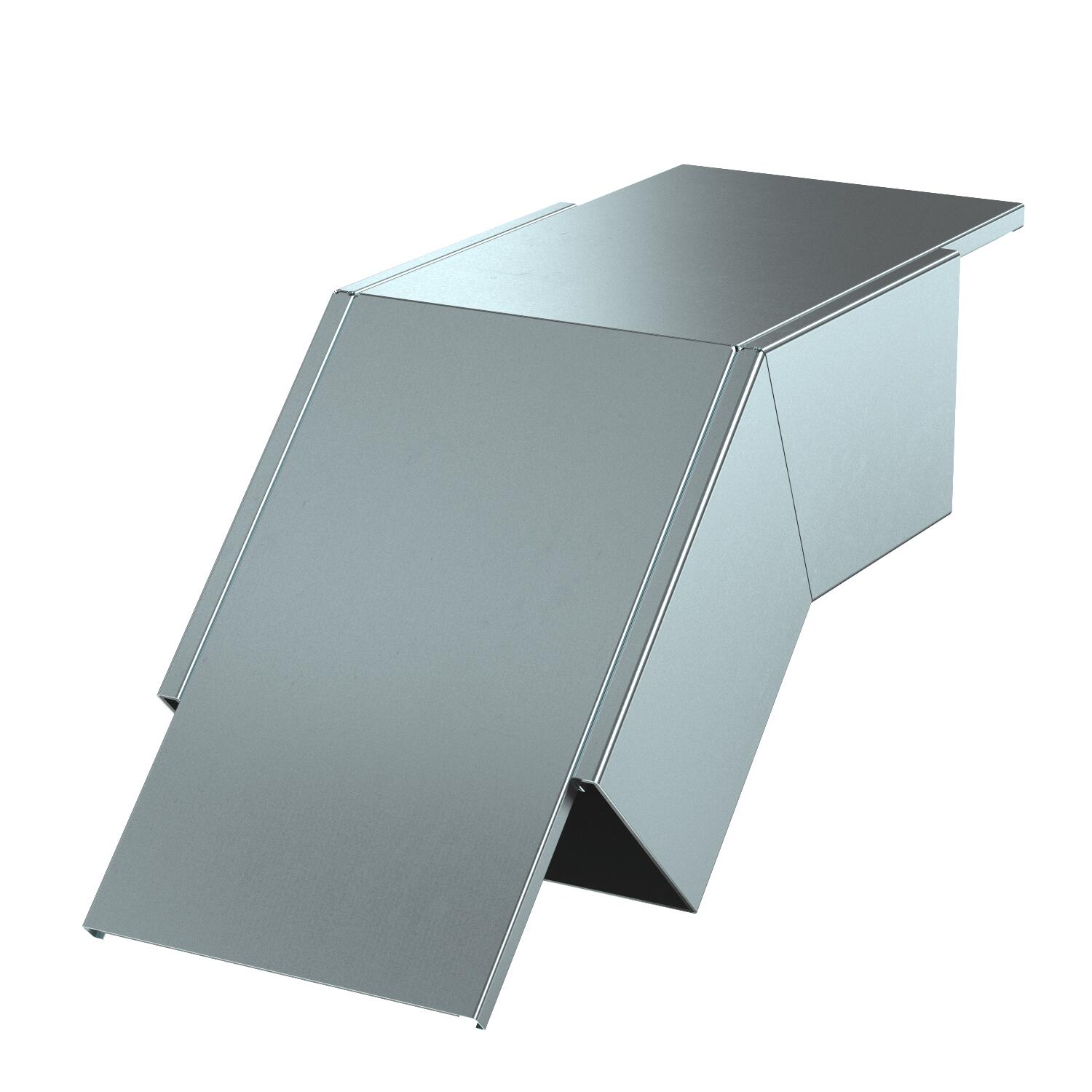

Product description45° vertical bend, falling version, with intumescent fire protection mesh for PYROLINE® Rapid PLM installation duct. Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. The cover is snapped on without tools, allowing rapid inspection and retroassignment. The cover overhang allows offset cover mounting for continuous equipotential bonding of the entire duct section.
-
- Technical data
-
Technical data

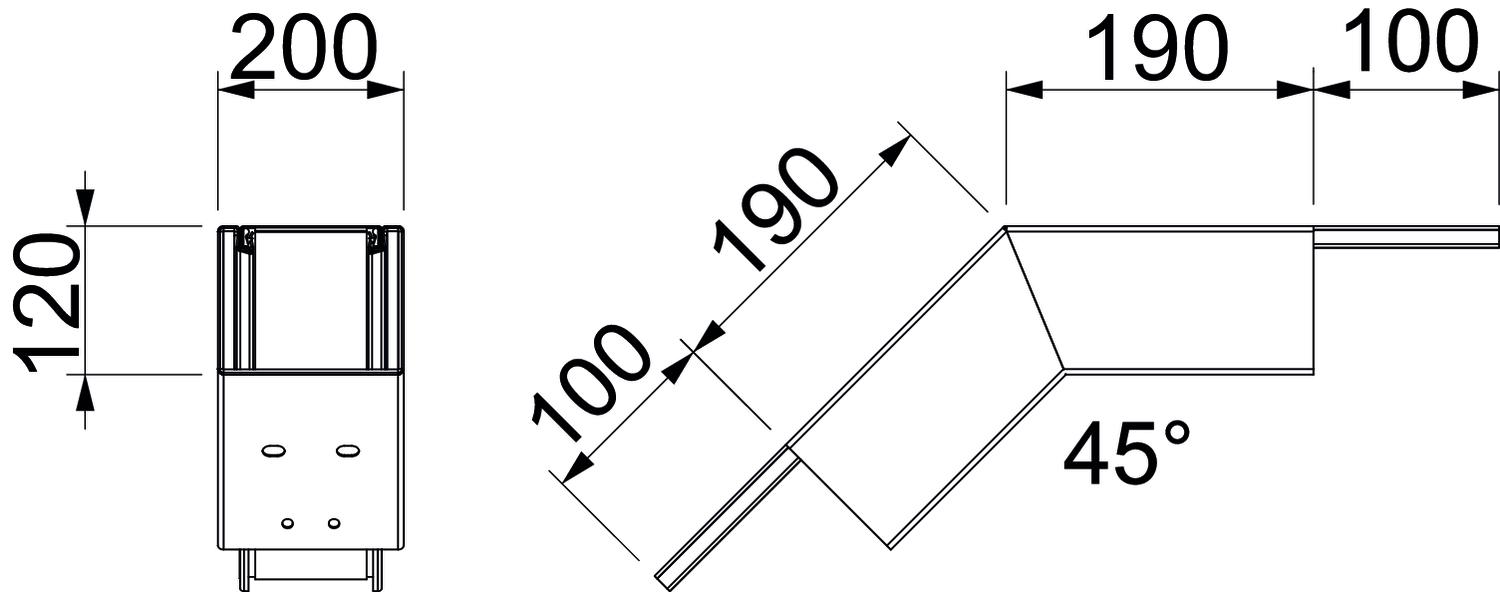

Angle of the bend 45 ° Classification EI − installation duct 90 Cover fastening Miscellaneous Dimension 498x100x215 Dimension A 190 mm Dimension B 200 mm Dimension H 120 mm Jacketing Steel Material Steel Number of flammable sides 4 Partitions possible no Surface Strip galvanized Usable cross-section 18500 mm² With perforation yes - All types
- Downloads
-
Data sheet PLM BF 1220 FS / 7218110 , 0.19MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfEU declaration of conformity PLM BF 1220 FS / 7218110 , 0.11MB , pdfDeclaration of performance PLM BF 1220 FS / 7218110 , 0.78MB , pdfApproval certificate Fire protection ducts PYROLINE® Rapid PLM , 2.15MB , pdfNo invitation to tender text is available for this product.
