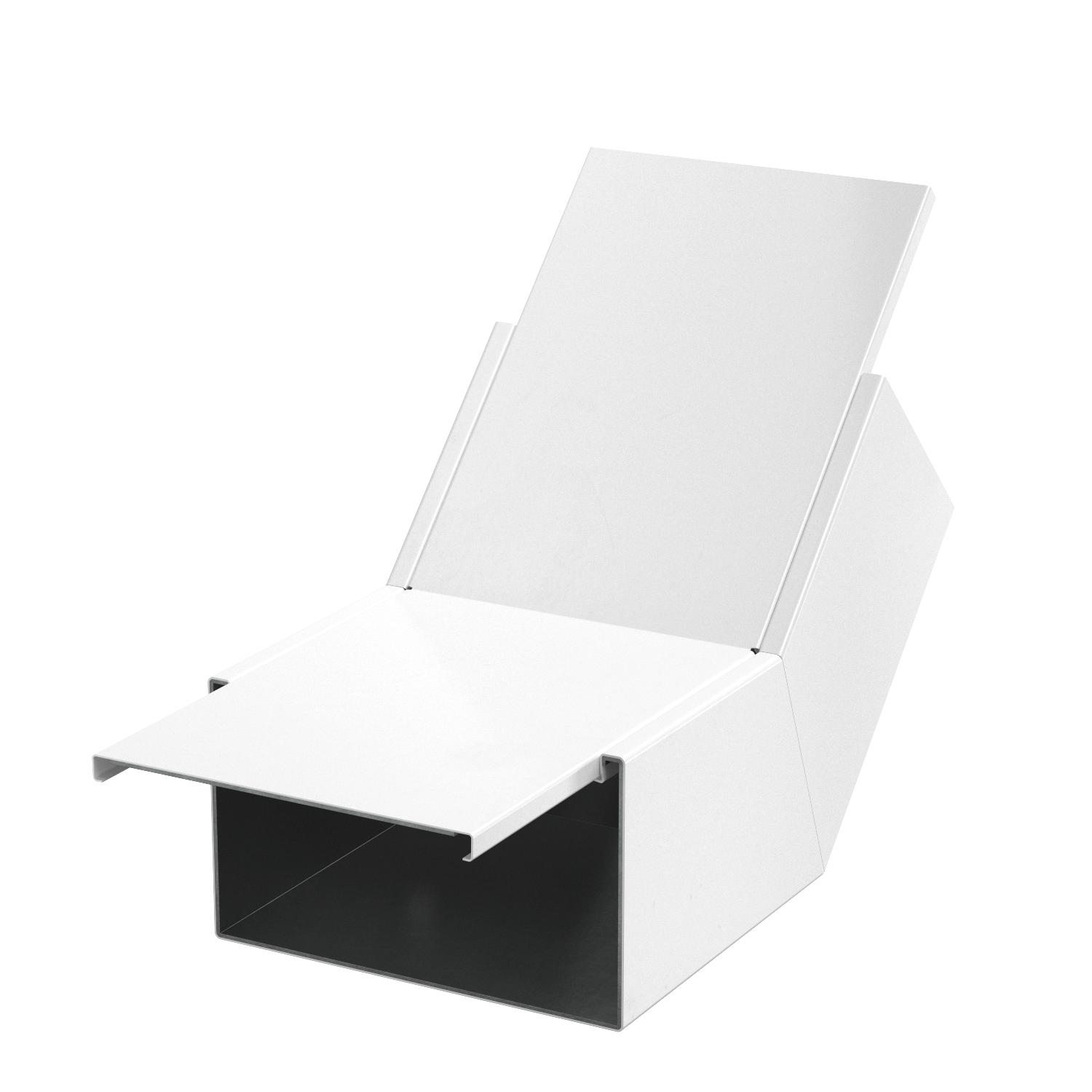

Vertical bend, rising, duct height 120 mm, pure white

Item no. 7218120 | EAN 4012197357818

7218120 / PLM BR 1220 RW
200 mm
120 mm
Product description

Product description

45° vertical bend, rising version, with intumescent fire protection mesh for PYROLINE® Rapid PLM installation duct. Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. The cover is snapped on without tools, allowing rapid inspection and retroassignment. The cover overhang allows offset cover mounting for continuous equipotential bonding of the entire duct section.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Angle of the bend 45 °
Classification EI − installation duct 90
Colour Pure white; RAL 9010
Cover fastening Miscellaneous

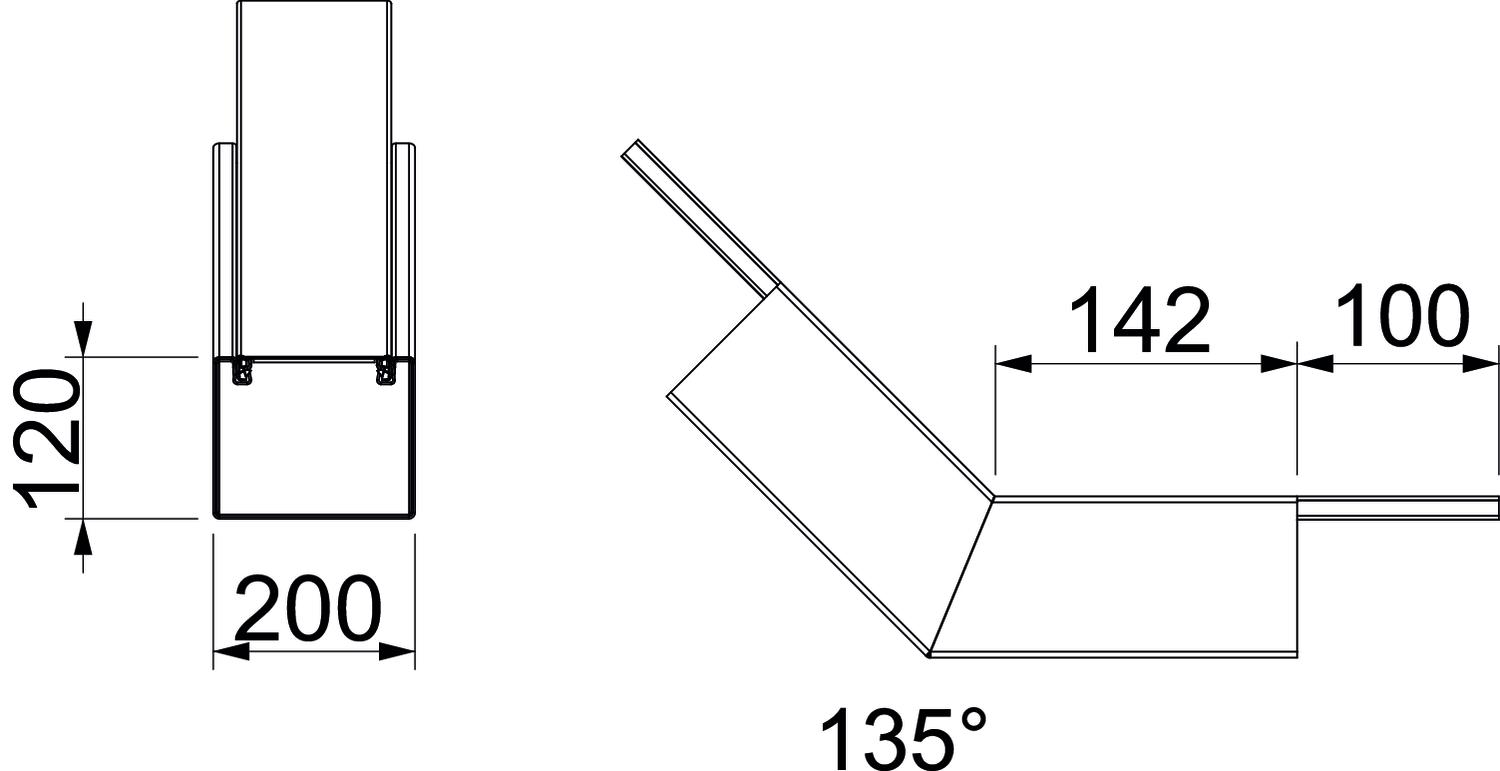

Dimension 422x200x291
Dimension A 142 mm
Dimension B 200 mm
Dimension H 120 mm
Jacketing Steel
Material Steel
Number of flammable sides 4
Partitions possible no
Surface Powder-coated
Usable cross-section 18500 mm²
With perforation yes
All types

All types

Types Dimension B Dimension H Item no. Quantity SSU
PLM BR 1220 RW 200 mm 120 mm 7218120
2 piece
