- Product description
-
Product description

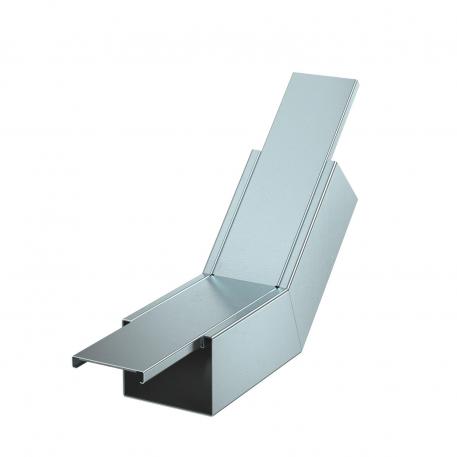

45° vertical bend, rising version, with intumescent fire protection mesh for PYROLINE® Rapid PLM installation duct. Suitable for direct wall and ceiling mounting, mounting below system floors and on support systems. Tool-free joint mounting with PLM SI joint connector. The cover is snapped on without tools, allowing rapid inspection and retroassignment. The cover overhang allows offset cover mounting for continuous equipotential bonding of the entire duct section.
- Technical data
-
Technical data
Angle of the bend 45 ° Classification EI − installation duct 90 Cover fastening Miscellaneous Dimension 435x100x257 Dimension A 150 mm Dimension B 100 mm Dimension H 80 mm Jacketing Steel Material Steel Number of flammable sides 4 Partitions possible no Surface Strip galvanized Usable cross-section 5180 mm² With perforation yes - All types
- Downloads
-
Data sheet PLM BR 0810 FS / 7218114 , 0.16MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfDeclaration of conformity PLM BR 0810 FS / 7218114 , 0.11MB , pdfApproval certificate Fire protection ducts PYROLINE® Rapid PLM , 2.15MB , pdf
