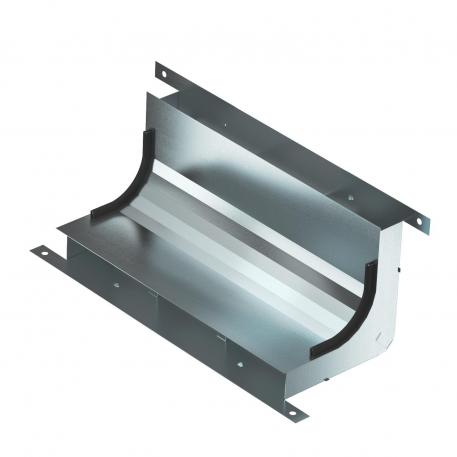

Vertical bend, three-compartment, height 38 mm
Item no. 7400662 | EAN 4012197349745
- Product description
-
Product descriptionVertical bend, two-compartment, for vertical direction changes of screed-covered underfloor ducts (wall connections, supplies).
-
- Technical data
-
Technical data

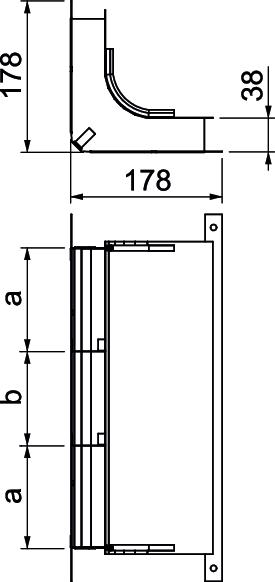

Cross-section, draw a 4060 mm² Cross-section, draw b 3934 mm² Dimension 430x177,7x177,7 Dimension a 120 mm Dimension b 110 mm Dimension h 38 mm Duct height, min. 38 mm Height 38 mm Length 178 mm Material Steel Number of compartments 3 St. Number of fixed partitions 2 Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts no Surface Strip galvanized Trunking width, min. 350 mm Width 350 mm - All types
- Downloads
-
Data sheet KV3 35038-2 / 7400662 , 0.16MB , pdfEU declaration of conformity KV3 35038-2 / 7400662 , 0.11MB , pdfDeclaration of performance KV3 35038-2 / 7400662 , 0.34MB , pdfMounting instructions Im-Beton-Kanalsystem IBK , 3.27MB , pdfMounting instructions EÜK screed-covered duct system generation 3 , 76.05MB , pdfMounting instructions EÜK screed-covered duct system generation 4 , 10.26MB , pdf
