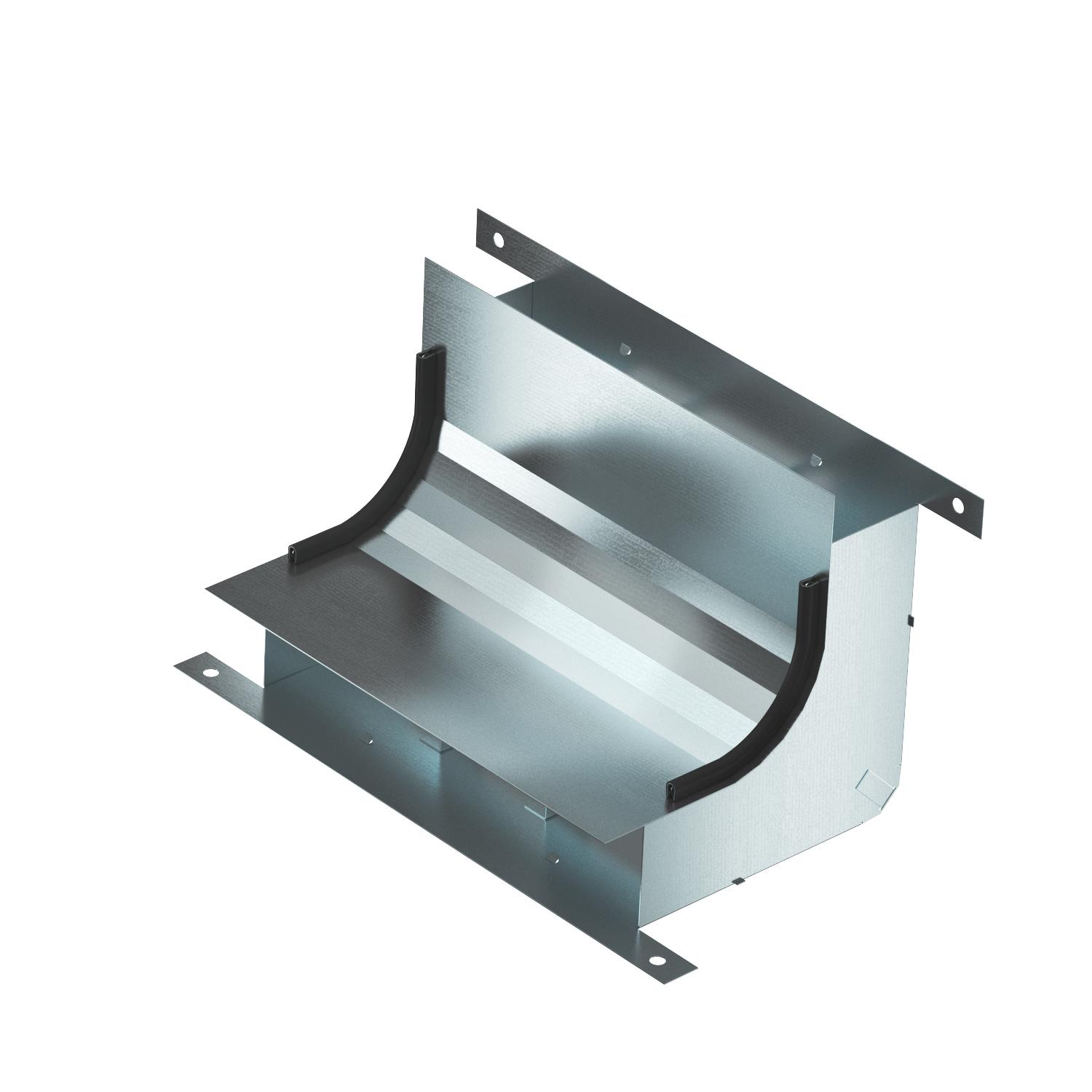

Vertical bend, three-compartment, height 58 mm

Item no. 7400655 | EAN 4012197350673

3 St.
Product description
Product description
Vertical bend, two-compartment, for vertical direction changes of screed-covered underfloor ducts (wall connections, supplies). Only compatible with the UZD250-4/350-4
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Nail device
Technical data

Technical data

Cross-section, draw a 4670 mm²
Cross-section, draw b 3884 mm²

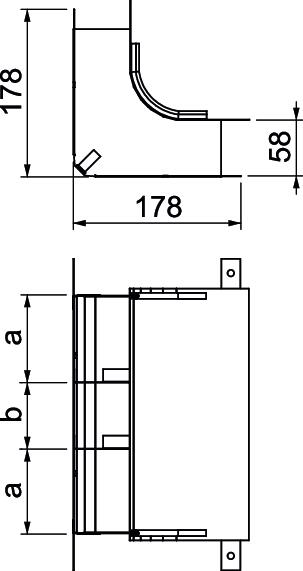

Dimension 330x177,7x177,7
Dimension a 90 mm
Dimension b 70 mm
Dimension h 58 mm
Duct height, min. 58 mm
Height 58 mm
Length 178 mm
Material Steel
Number of compartments 3 St.
Number of fixed partitions 2
Suitable for screed-covered underfloor ducts yes
Suitable for screed-flush closed underfloor ducts no
Surface Strip galvanized
Trunking width, min. 250 mm
Width 250 mm
All types

All types

Types Width Number of compartments Item no. Quantity SSU
KV3 25058-2 250 mm 3 St. 7400655
4 piece
KV3 35058-2 350 mm 3 St. 7400667
4 piece
Downloads

Download

EU declaration of conformity KV3 25058-2 / 7400655 , 0.11MB , pdf
Download

Download
Download

KV3 25058-2 / 7400655
Download
