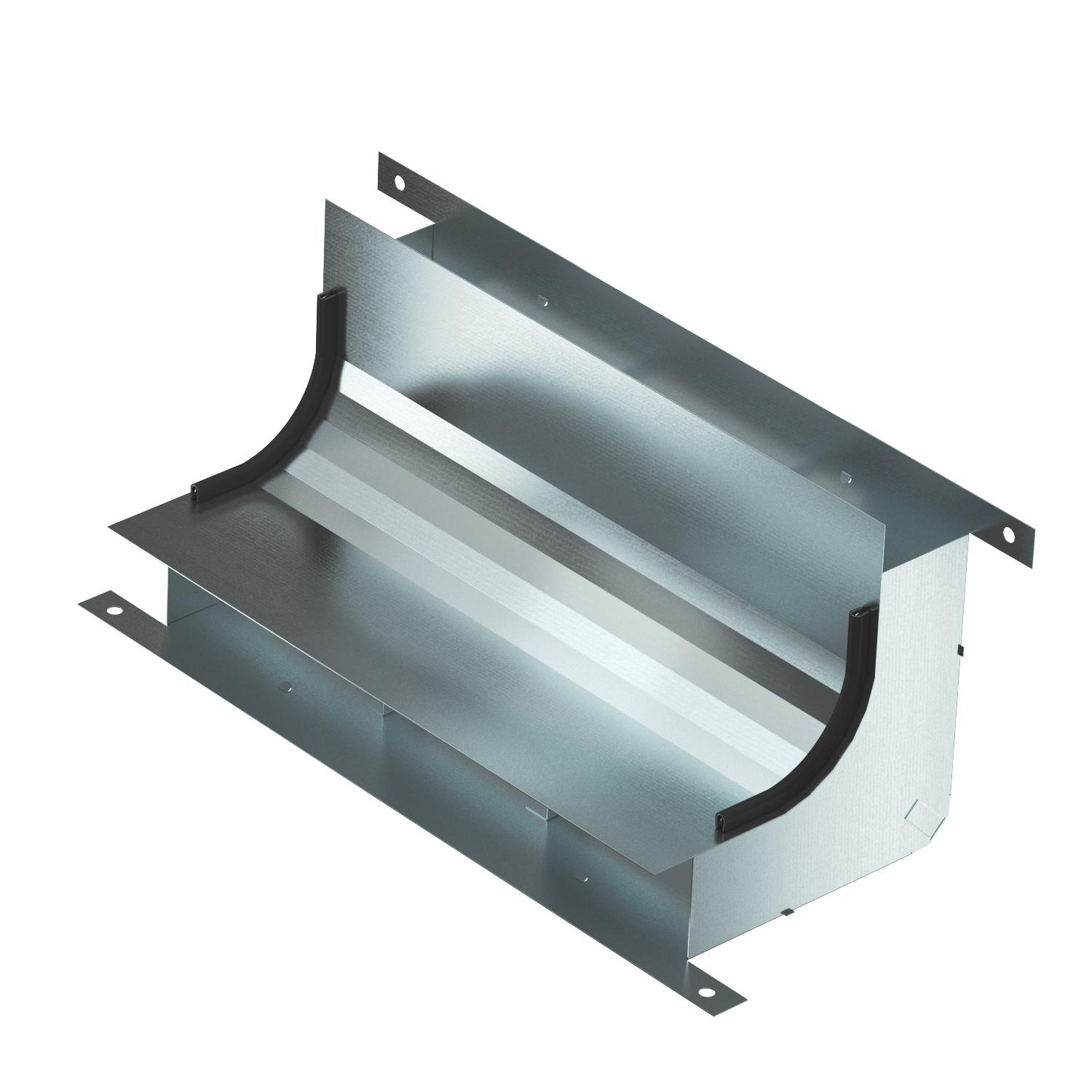

Product descriptionVertical bend, two-compartment, for vertical direction changes of screed-covered underfloor ducts (wall connections, supplies). Only compatible with the UZD250-4/350-4
- Technical data
-
Technical data

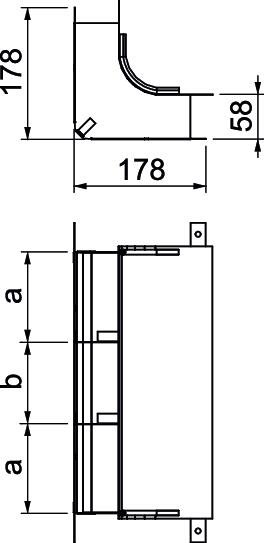

Cross-section, draw a 6341 mm² Cross-section, draw b 6112 mm² Dimension 430x177,7x177,7 Dimension a 120 mm Dimension b 110 mm Dimension h 58 mm Duct height, min. 58 mm Height 58 mm Length 178 mm Material Steel Number of compartments 3 St. Number of fixed partitions 2 Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts no Surface Strip galvanized Trunking width, min. 350 mm Width 350 mm - All types
