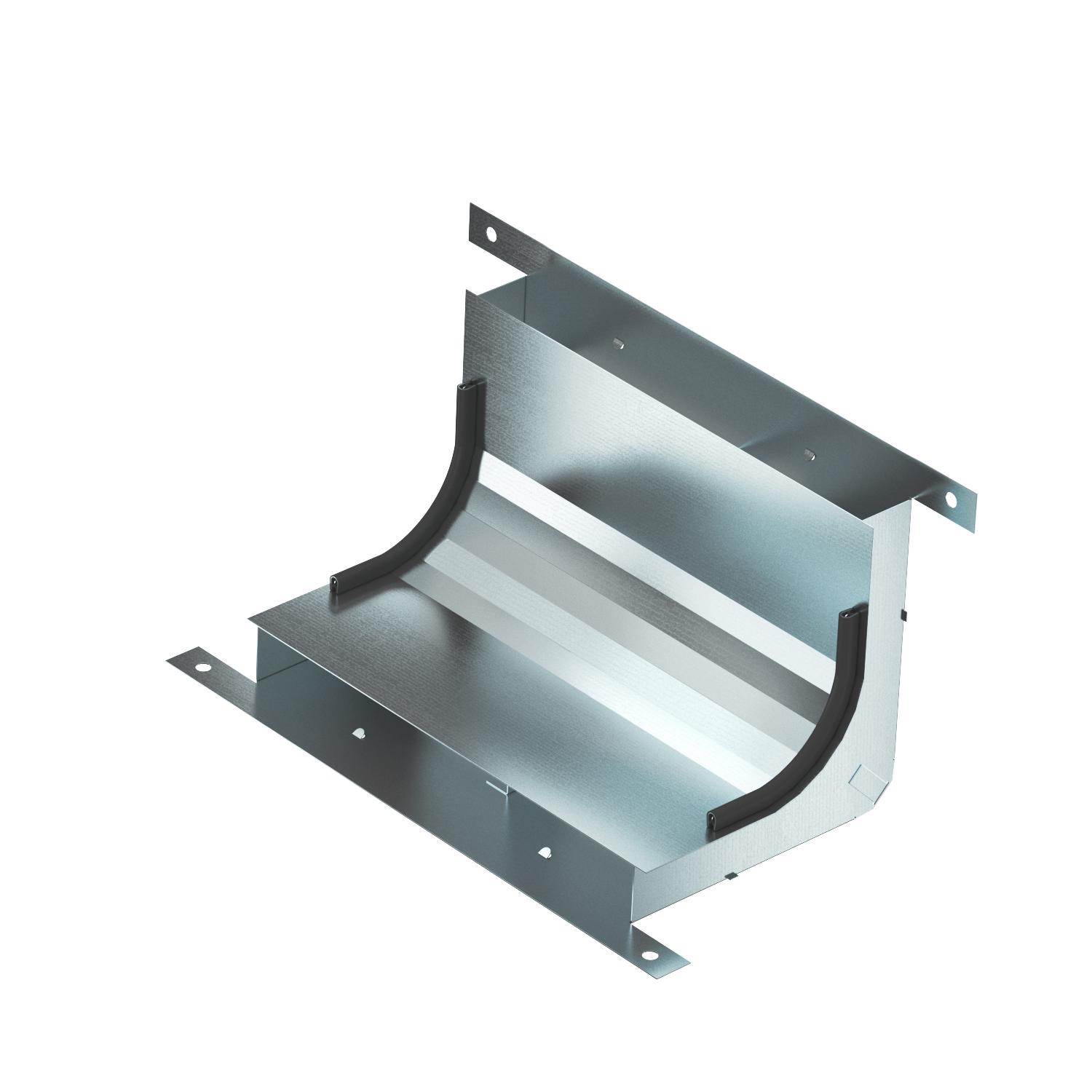

Vertical bend, two-compartment, height 28 mm

Item no. 7400633 | EAN 4012197349509

2 St.
Product description

Product description

Vertical bend, two-compartment, for vertical direction changes of screed-covered underfloor ducts (wall connections, supplies).
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cross-section, draw a 2701 mm²
Cross-section, draw b 3483 mm²

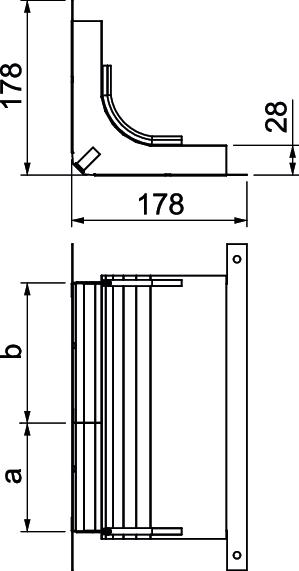

Dimension 330x177,7x177,7
Dimension a 110 mm
Dimension b 140 mm
Dimension h 28 mm
Duct height, min. 28 mm
Height 28 mm
Length 178 mm
Material Steel
Number of compartments 2 St.
Number of fixed partitions 1
Suitable for screed-covered underfloor ducts yes
Suitable for screed-flush closed underfloor ducts no
Surface Strip galvanized
Trunking width, min. 250 mm
Width 250 mm
All types

All types

Types Width Number of compartments Item no. Quantity SSU
KV2 19028-2 190 mm 2 St. 7400621
4 piece
KV2 25028-2 250 mm 2 St. 7400633
4 piece
