Vertical bend, two-compartment, height 38 mm
Item no. 7400637 | EAN 4012197349530
- Product description
-
Product description

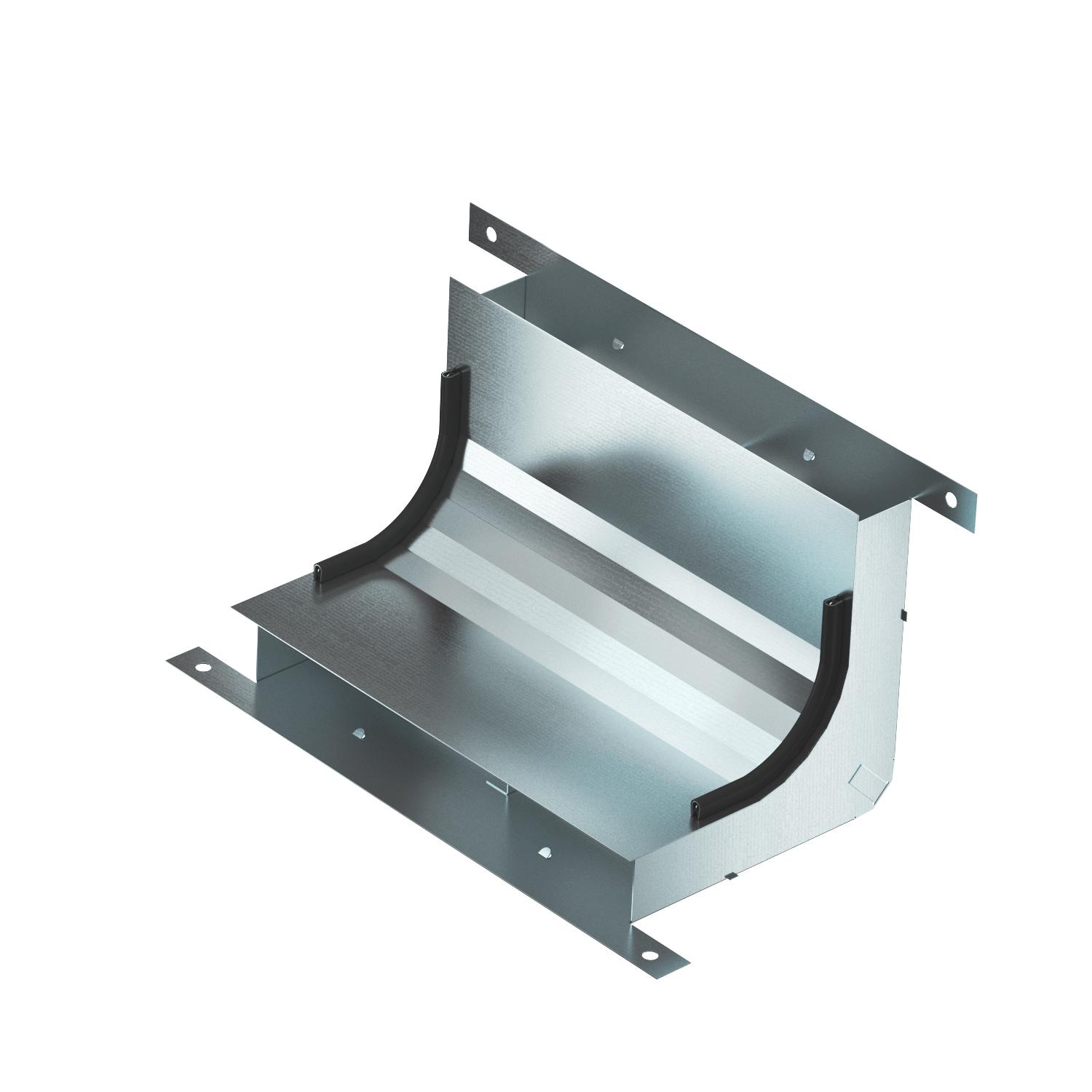

Vertical bend, two-compartment, for vertical direction changes of screed-covered underfloor ducts (wall connections, supplies).
-
- Technical data
-
Technical data

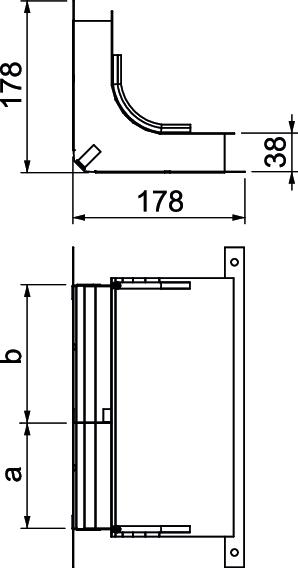

Cross-section, draw a 3717 mm² Cross-section, draw b 4807 mm² Dimension 330x177,7x177,7 Dimension a 110 mm Dimension b 140 mm Dimension h 38 mm Duct height, min. 38 mm Height 38 mm Length 178 mm Material Steel Number of compartments 2 St. Number of fixed partitions 1 Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts no Surface Strip galvanized Trunking width, min. 250 mm Width 250 mm - All types
- Downloads
-
Data sheet KV2 25038-2 / 7400637 , 0.16MB , pdfDeclaration of conformity KV2 25038-2 / 7400637 , 0.11MB , pdfMounting instructions Im-Beton-Kanalsystem IBK , 3.27MB , pdfMounting instructions EÜK screed-covered duct system generation 3 , 76.05MB , pdfMounting instructions EÜK screed-covered duct system generation 4 , 10.26MB , pdf
