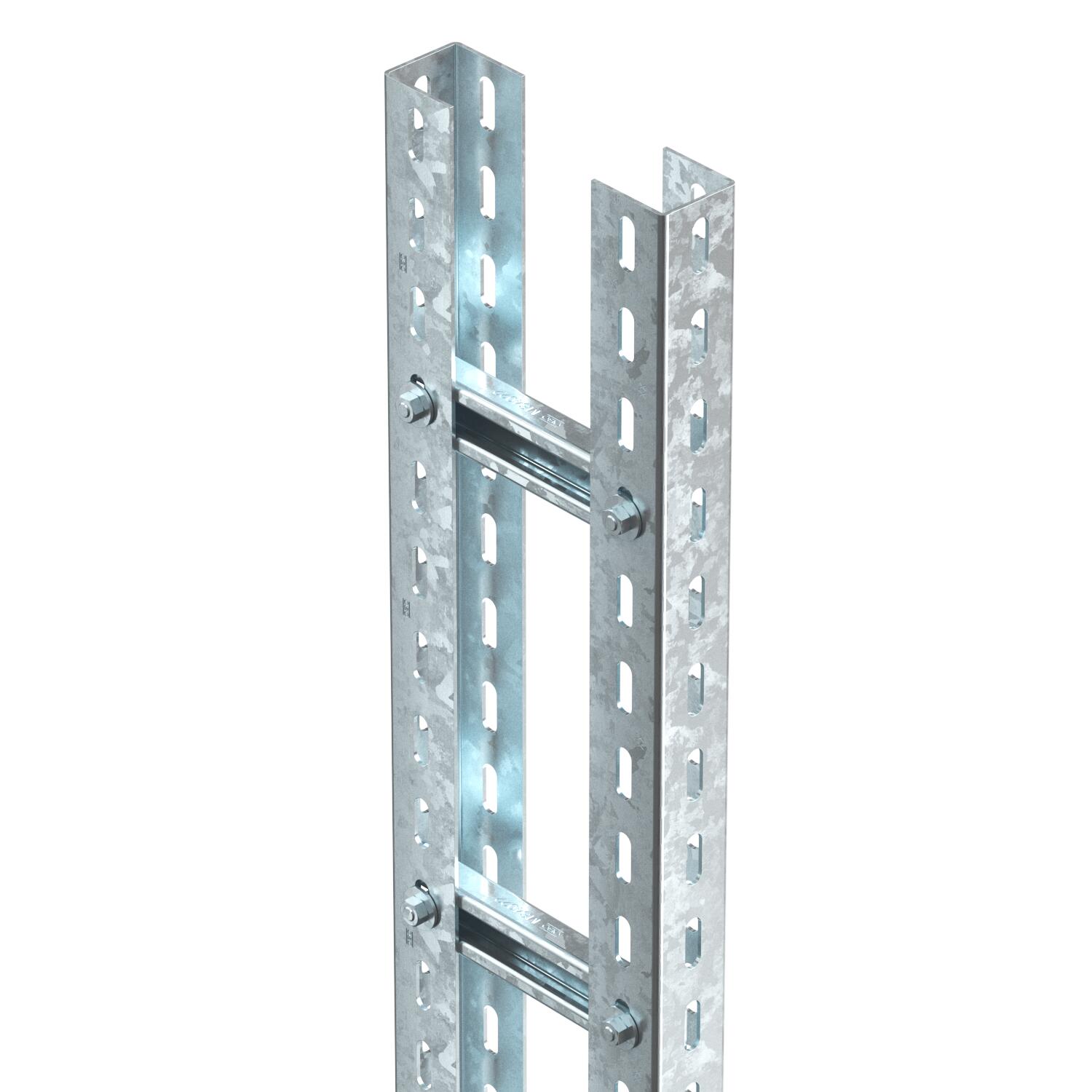

Vertical ladder, SLM50

Item no. 6010004 | EAN 4012196814206

Product description
Product description
Heavyweight vertical ladder system for the maintenance of electrical function to DIN 4102 Part 12. Approved clips, type BS-U1-M-… FT. Supplied unmounted.

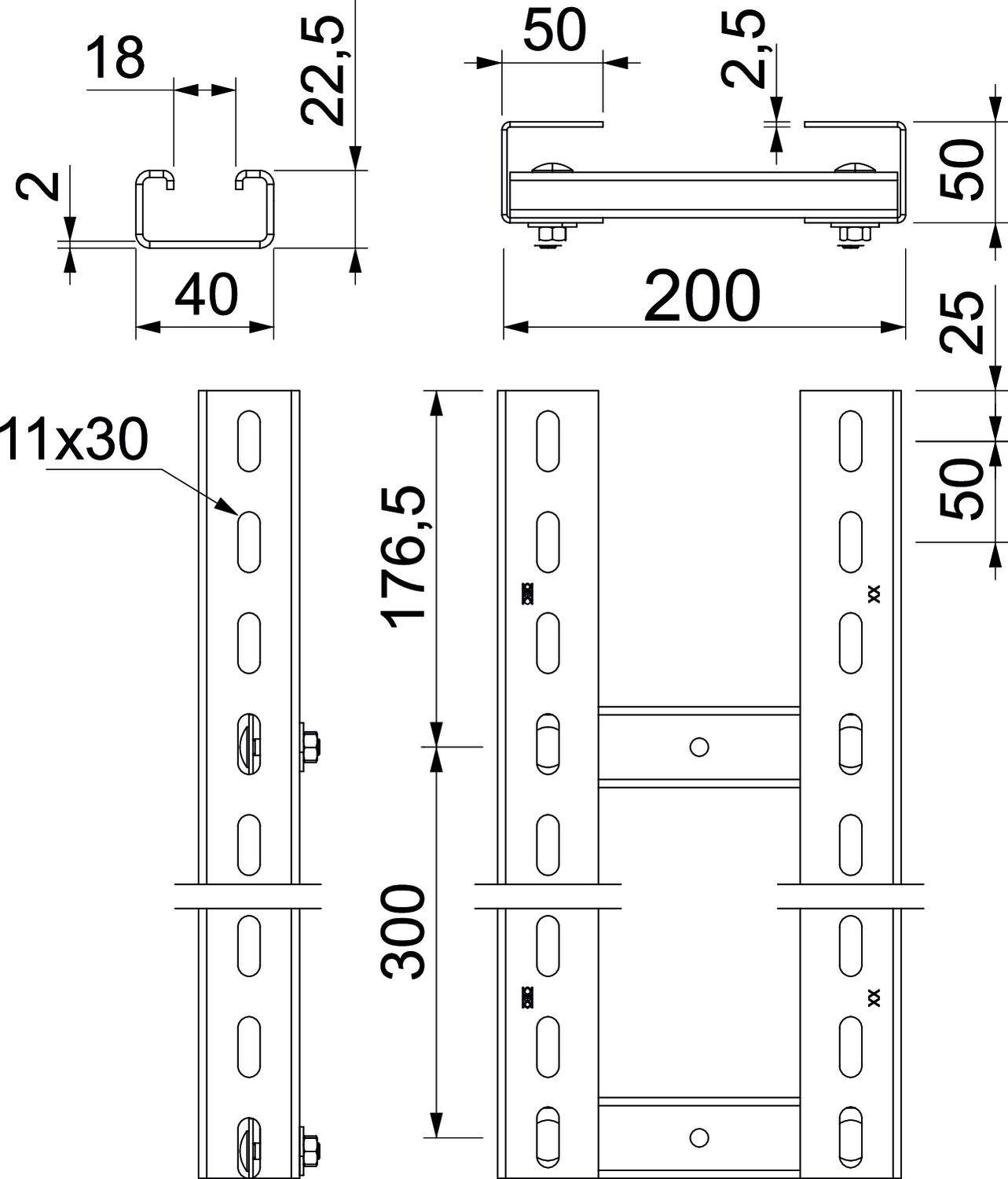

Technical data

Technical data

Colour zinc
Dimension 200x3000mm
Dimension B 200 mm
Fire protection Maintenance of electrical function of standard support structure
Height 50 mm
Length 3000 mm
Maintain electrical functions yes
Material Steel
Rung distance 300 mm
Rung slot dimension 2,00
Rustproof steel, pickled no
Side perforation yes
Surface Hot-dip galvanised
Version of the rungs Profile unperforated
Width 200 mm
All types

All types

Types Width Item no. Quantity SSU
SLM50C40F 20 FT 200 mm 6010004
3 m
SLM50C40F 30 FT 300 mm 6010006
3 m
SLM50C40F 40 FT 400 mm 6010008
3 m
SLM50C40F 50 FT 500 mm 6010016
3 m
SLM50C40F 60 FT 600 mm 6010024
3 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Strain relief on three sides, with mineral wool, internal height 115 mm Strain relief on three sides, with mineral wool, internal height 115 mm ZSE90-25-11 7215702
1 piece
Strain relief on three sides, with mineral wool, internal height 175 mm Strain relief on three sides, with mineral wool, internal height 175 mm ZSE90-25-17 7215713
1 piece

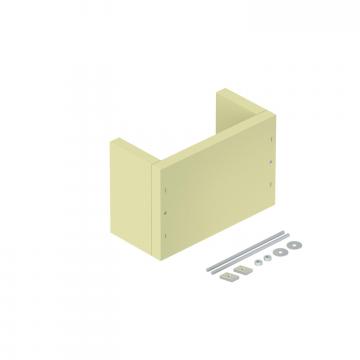

Strain relief on three sides, empty housing, internal height 115 mm Strain relief on three sides, empty housing, internal height 115 mm ZSE90-25-11 L 7215760
1 piece

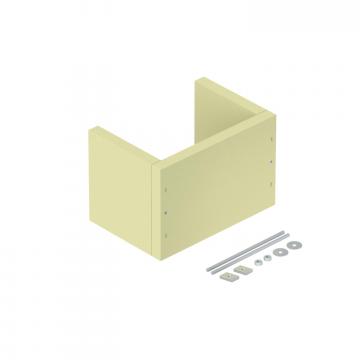

Strain relief on three sides, empty housing, internal height 175 mm Strain relief on three sides, empty housing, internal height 175 mm ZSE90-25-17 L 7215766
1 piece

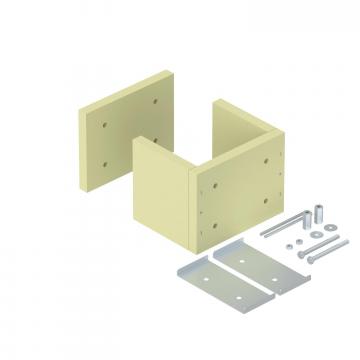

Strain relief on four sides, empty housing, internal height 175 mm Strain relief on four sides, empty housing, internal height 175 mm ZSE90-21-17 LH 7215780
1 piece
Identification plate for maintenance of electrical function Identification plate for maintenance of electrical function KS-E DE 7205423
10 piece

Mounting accessories

Products Types Item no. Quantity SSU
U support connector FT U support connector FT VUS 5 FT 6018505
10 piece

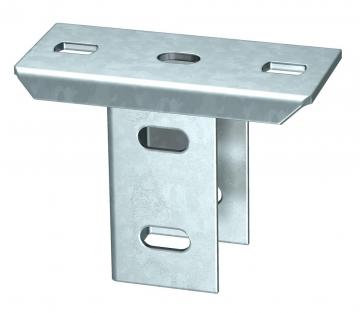

Head plate US 5 NOK FT Head plate US 5 NOK FT KUS 5 NOK FT 6348939
1 piece
Head plate US 5 Head plate US 5 KUS 5 FT 6348904
1 piece

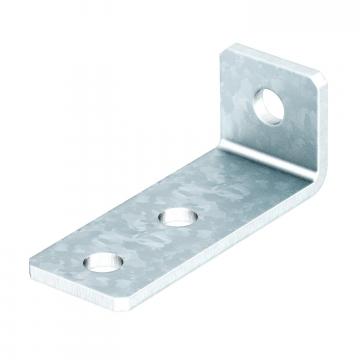

Mounting bracket, 90° with 3 holes FT Mounting bracket, 90° with 3 holes FT GMS 3 VW 90 FT 1124661
10 piece
Downloads

Download

EU declaration of conformity SLM50C40F 20 FT / 6010004 , 0.15MB , pdf
Download

No invitation to tender text is available for this product.
