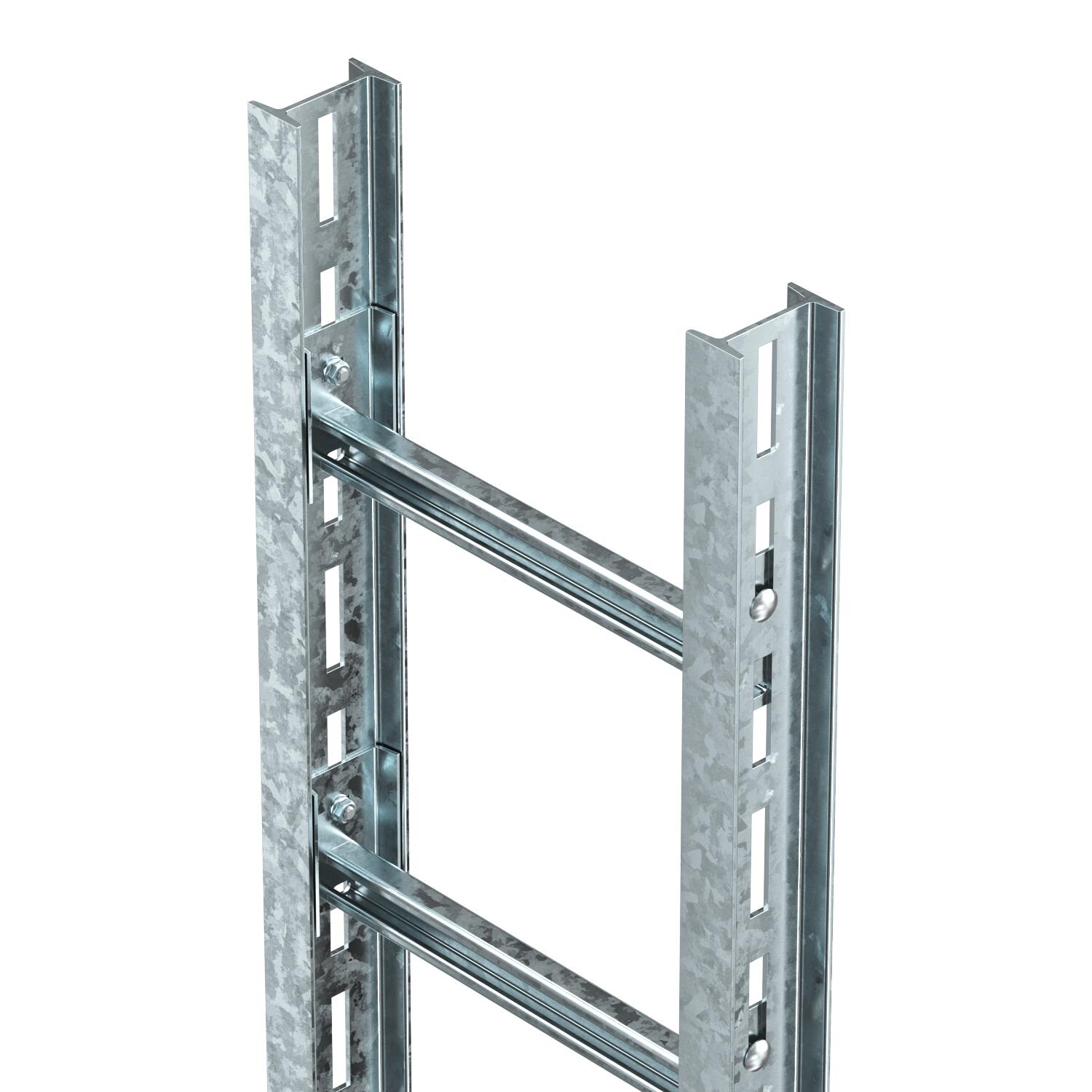

Vertical ladder, SLS80

Item no. 6010105 | EAN 4012196959907

Item no. / Types

Width

Product description

Product description

Industrial vertical ladder system for the maintenance of electrical function to DIN 4102 Part 12. Approved clips, type BS-U1-M-… FT. Supplied unmounted.

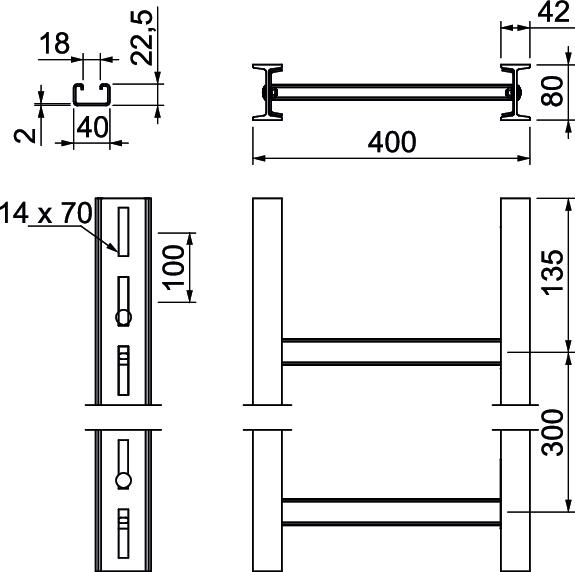

Technical data

Technical data

Colour	zinc
Dimension	400x3000mm
Dimension B	400 mm
Fire protection	Maintenance of electrical function of standard support structure
Height	80 mm
Length	3000 mm
Maintain electrical functions	yes
Material	Steel

Rung distance	300 mm
Rung slot dimension	2,00
Rustproof steel, pickled	no
Side perforation	yes
Surface	Hot-dip galvanised
Version of the rungs	Profile unperforated
Width	400 mm

All types

All types

Types	Width	Item no.	Quantity	SSU
SLS80C40F 40 FT	400 mm	6010105	m	3 m
SLS80C40F 50 FT	500 mm	6010113	m	3 m
SLS80C40F 60 FT	600 mm	6010121	m	3 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU

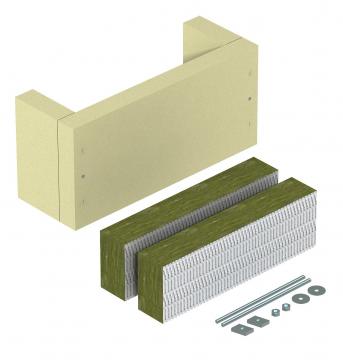

Strain relief on three sides, with mineral wool, internal height 115 mm	ZSE90-45-11	7215709	piece	1 piece
Strain relief on three sides, with mineral wool, internal height 175 mm	ZSE90-45-17	7215719	piece	1 piece

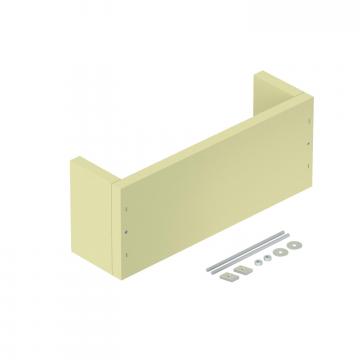

Strain relief on three sides, empty housing, internal height 115 mm	ZSE90-45-11 L	7215764	piece	1 piece

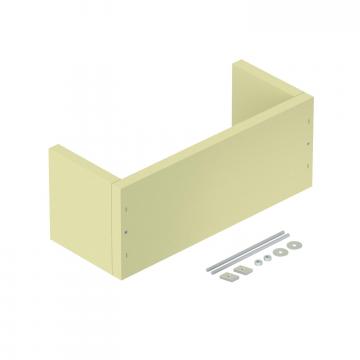

Strain relief on three sides, empty housing, internal height 175 mm	ZSE90-45-17 L	7215770	piece	1 piece
Identification plate for maintenance of electrical function	KS-E DE	7205423	piece	10 piece
