VH cover plate, for Modul 45 devices, double
Item no. 6109835 | EAN 4012196101528
- Product description
-
Product description
Cover plate to install a double Modul 45 socket or equipable with two Modul 45 devices.
Note: Observe VDE regulation.
-
- Technical data
-
Technical data
Blanking lid no Colour Pure white; RAL 9010 Dimension 95x95mm Fastening type Screw-on Halogen-free yes Installation technology Grid M45 Material Polyamide Number of units 2 Opening shape Rectangular Protection rating IP20 Dimensions

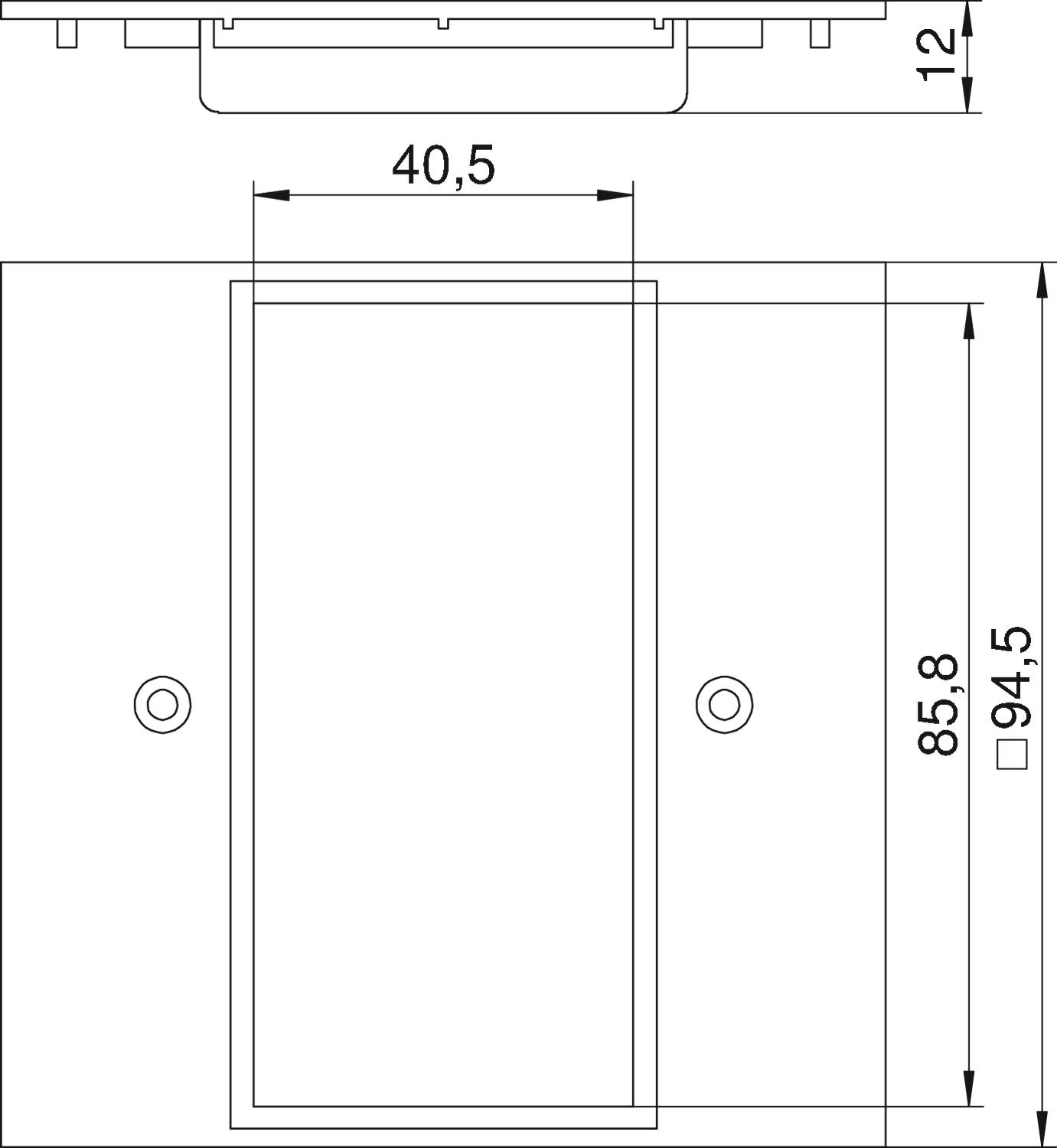

Height 94,5 mm Width 94,5 mm - All types
- Downloads
-
Data sheet VH-P5 RW / 6109835 , 0.18MB , pdfCatalogue Installation systems , 28.45MB , pdfREACH Declaration of conformity VH-P5 RW / 6109835 , 0.12MB , pdfRoHS Declaration of conformity VH-P5 RW / 6109835 , 0.13MB , pdf
