VH cover plate, for Modul 45 devices, single

Item no. 6109841 | EAN 4012196101566

Product description

Product description

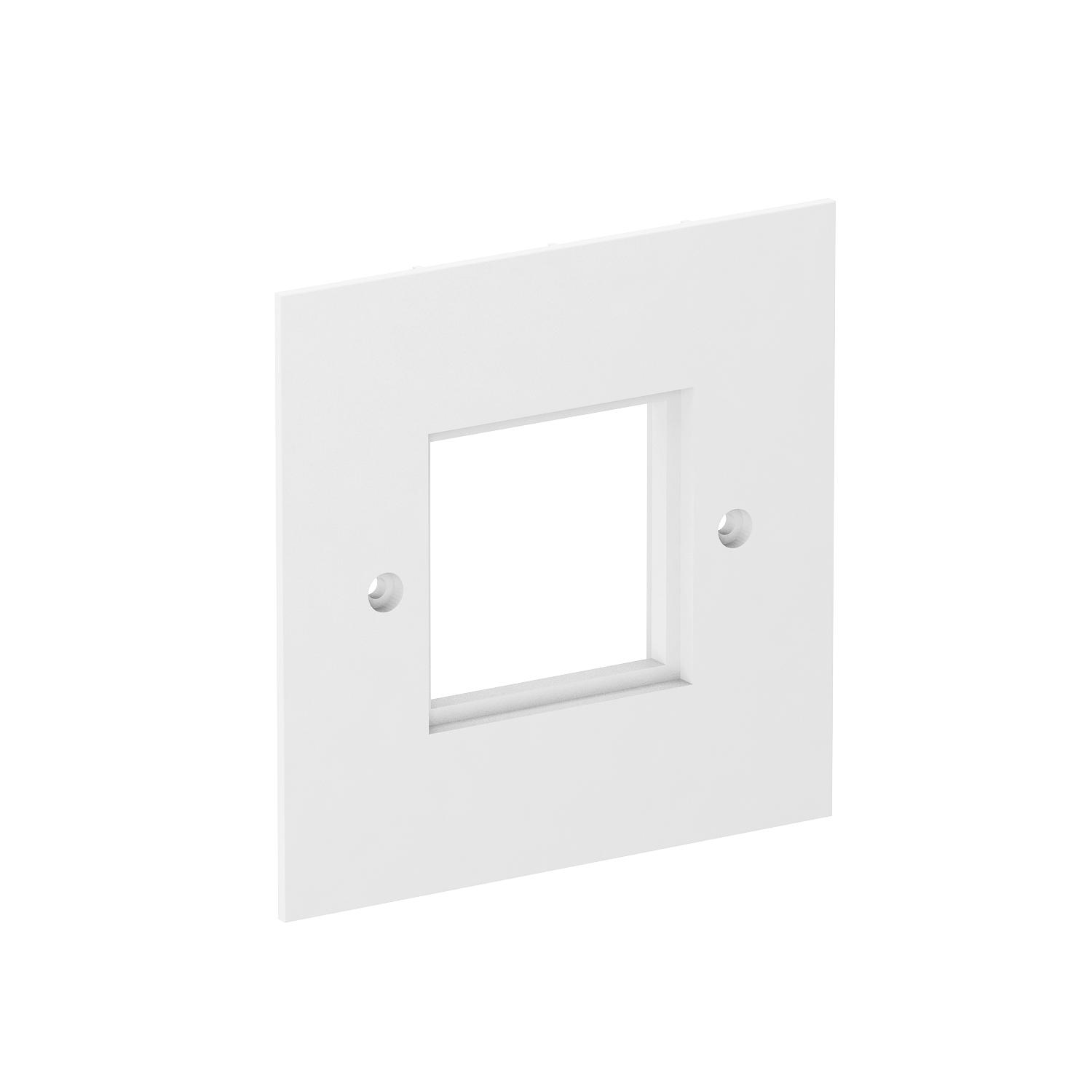

Cover plate to install a single Modul 45 socket.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Blanking lid no
Colour Pure white; RAL 9010

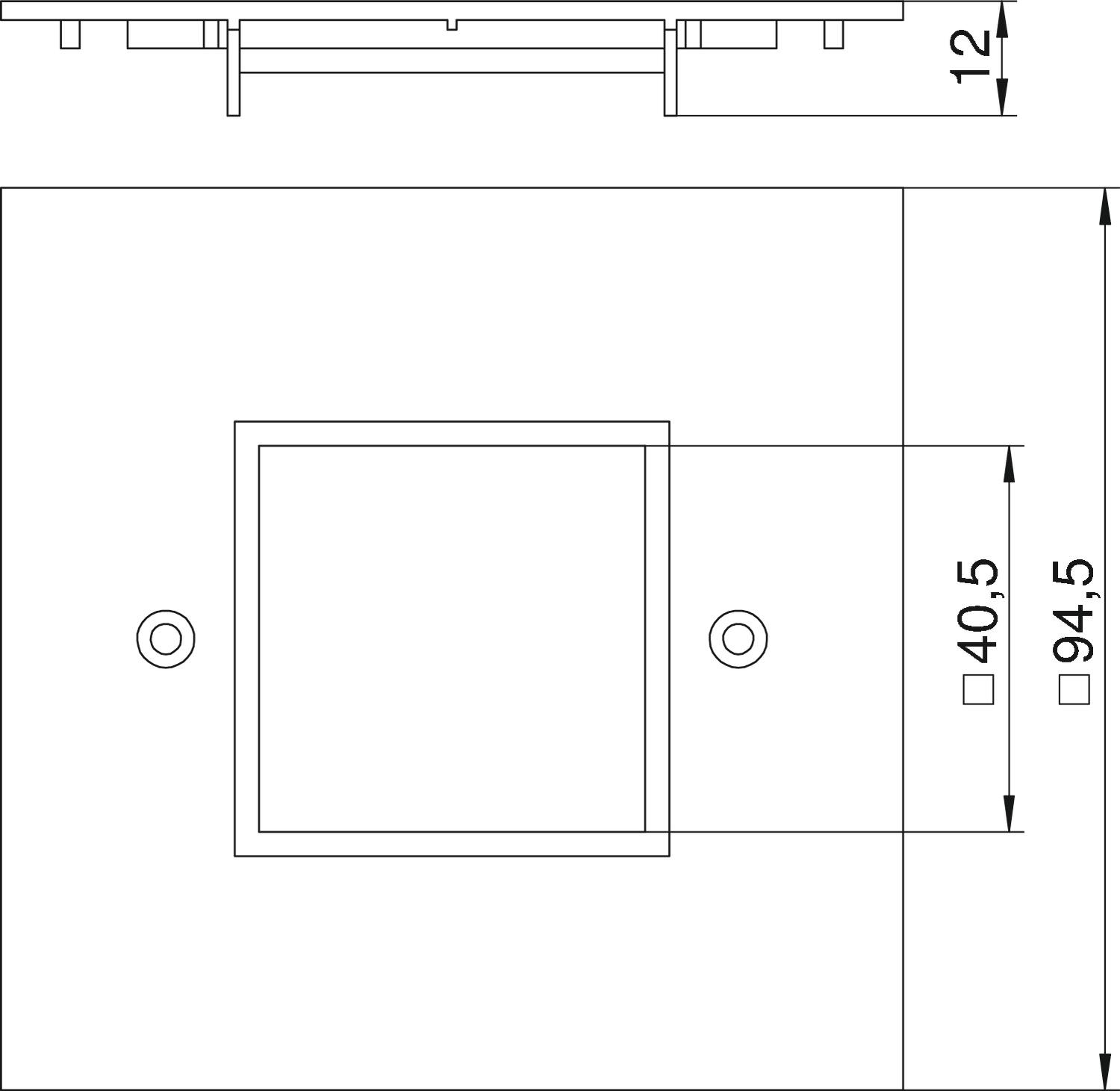

Dimension 95x95mm
Fastening type Screw-on
Halogen-free yes
Height 94,5 mm
Installation technology Grid M45
Material Polyamide
Number of units 1
Opening shape Rectangular
Protection rating IP20
Width 94,5 mm
All types

All types

Types Item no. Quantity SSU
VH-P4 RW 6109841
10 piece
Downloads

Download

Download

REACH Declaration of conformity VH-P4 RW / 6109841 , 0.12MB , pdf
RoHS Declaration of conformity VH-P4 RW / 6109841 , 0.13MB , pdf

VH-P4 RW / 6109841
