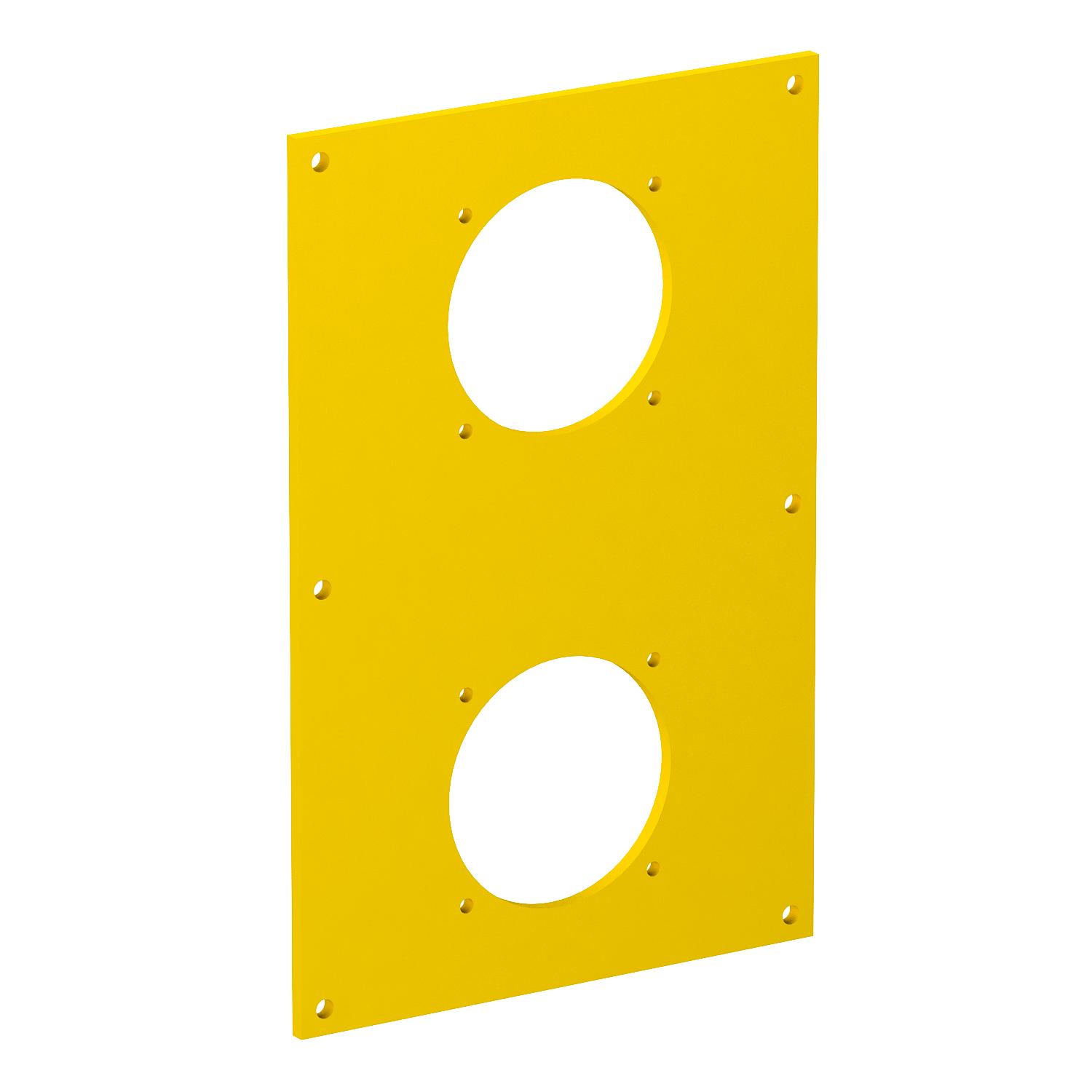

VHF cover plate, for 2x surface-mounted socket, type ASD

Item no. 6109879 | EAN 4012195477457

Product description

Product description

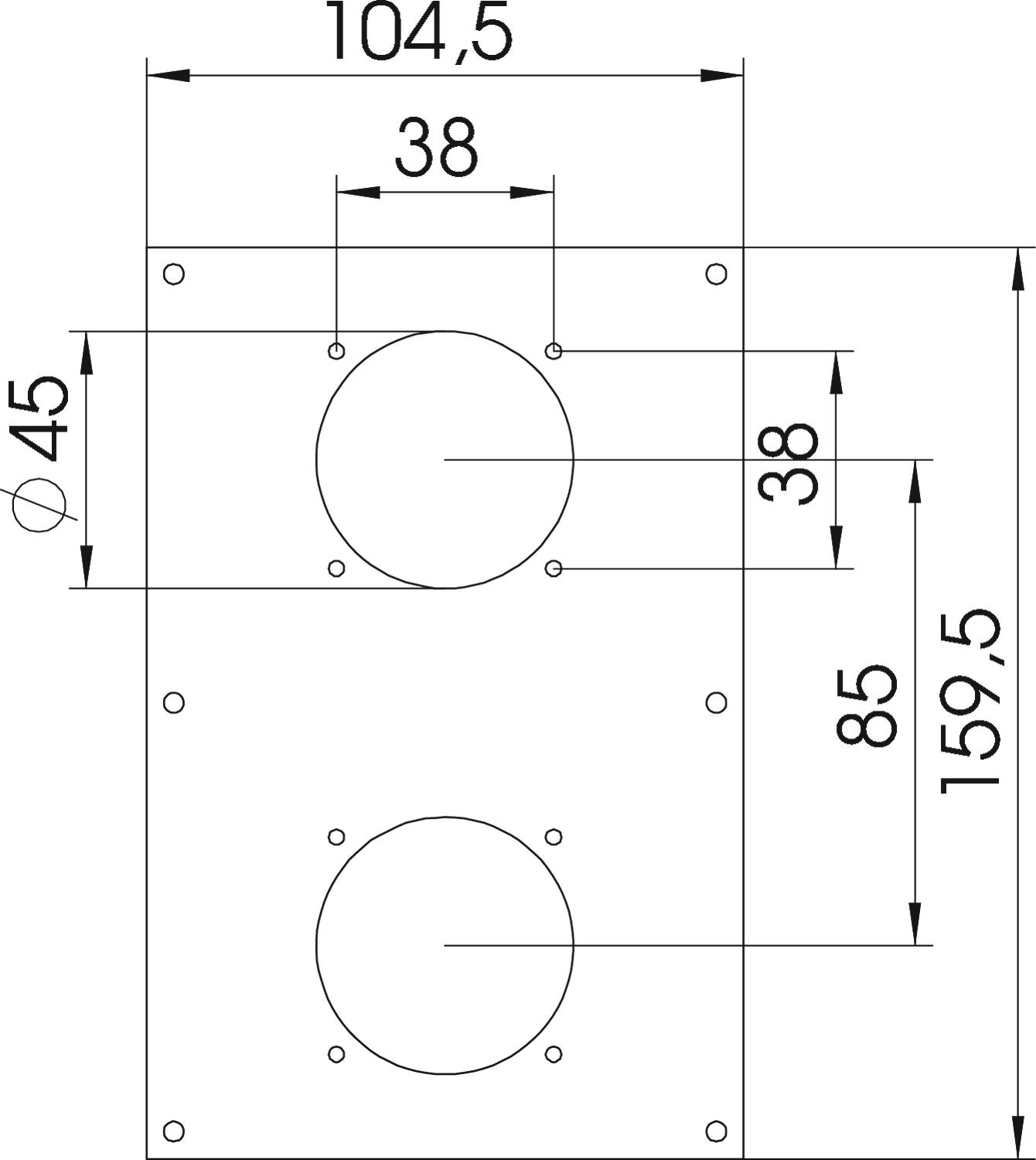

Cover plate with two Ø 45 mm openings for the installation of two extension sockets (type ASD-...) with 38 mm fastening track, including 8 screws for fastening the device.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Blanking lid no
Colour Rape yellow; RAL 1021
Dimension 160x105x3mm
Fastening type Screw-on
Halogen-free no
Height 159,5 mm
Installation technology Miscellaneous
Material Polyvinylchloride
Number of units 2
Opening shape Round
Protection rating IP44
Width 104,5 mm
All types

All types

Types Item no. Quantity SSU
VHF-P8 6109879
10 piece
Downloads

Download

Download

REACH Declaration of conformity VHF-P8 / 6109879 , 0.12MB , pdf
RoHS Declaration of conformity VHF-P8 / 6109879 , 0.13MB , pdf

VHF-P8 / 6109879
