VHF cover plate, with fastening system

Item no. 6109878 | EAN 4012195477440

Product description

Product description

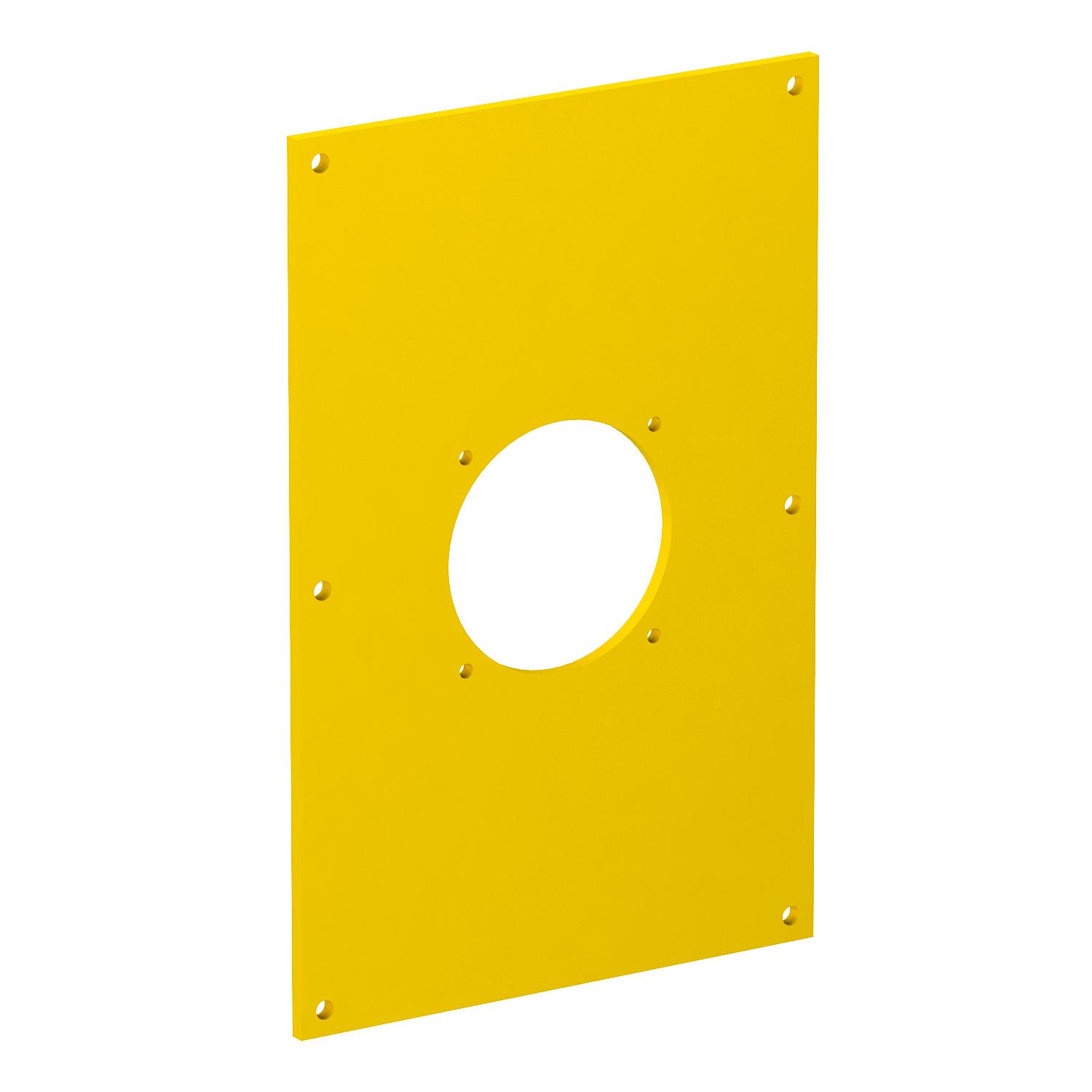

Cover plate with opening for the installation of a socket with 38 x 38 mm fastening system.

  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Blanking lid no
Colour Rape yellow; RAL 1021

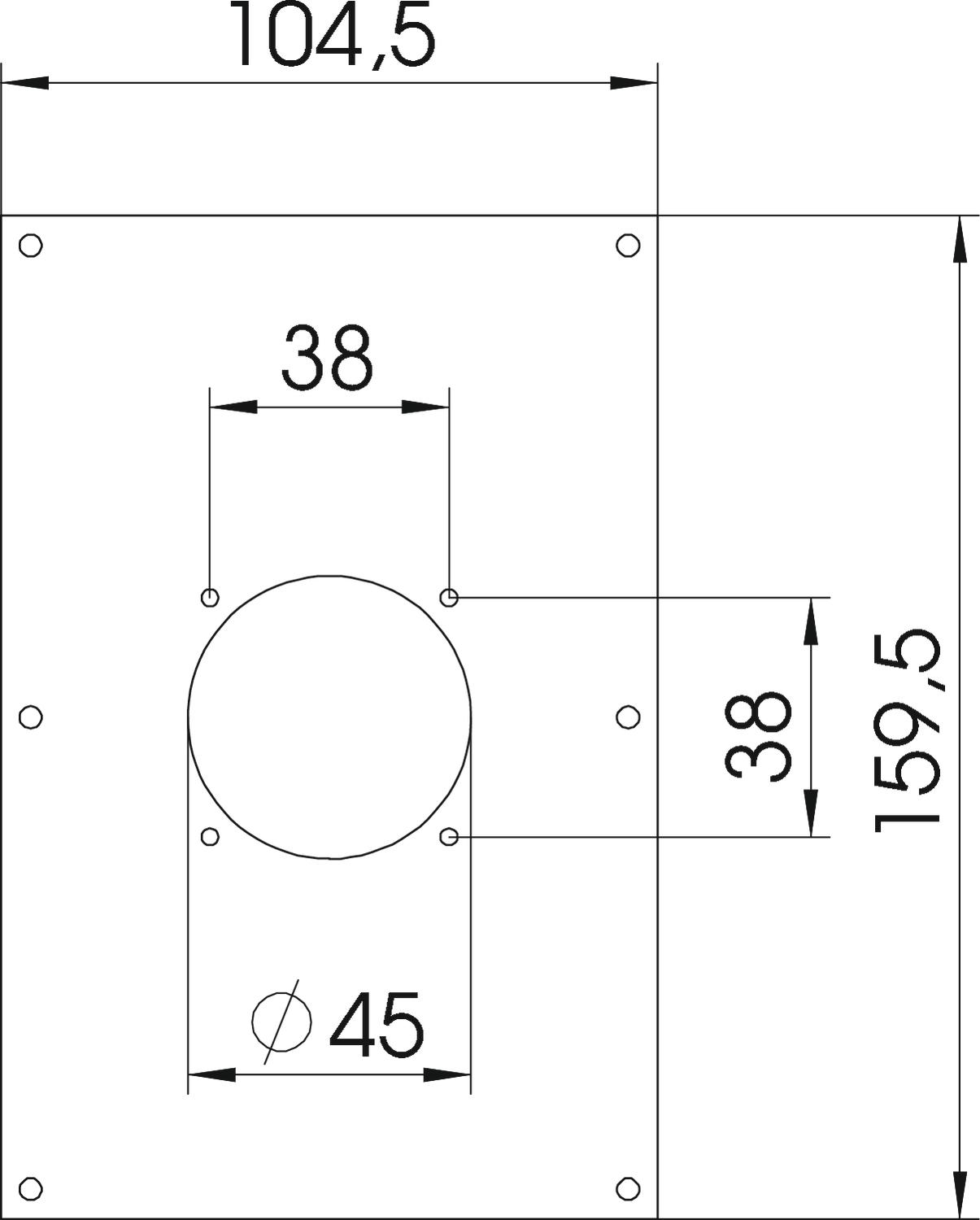

Dimension 160x105x3mm
Fastening type Screw-on
Halogen-free no
Height 159,5 mm
Installation technology Miscellaneous
Material Polyvinylchloride
Number of units 1
Opening shape Round
Protection rating IP44
Width 104,5 mm
All types

All types

Types Item no. Quantity SSU
VHF-P7 6109878
10 piece
Downloads

Download

Download

REACH Declaration of conformity VHF-P7 / 6109878 , 0.12MB , pdf
RoHS Declaration of conformity VHF-P7 / 6109878 , 0.13MB , pdf

VHF-P7 / 6109878
