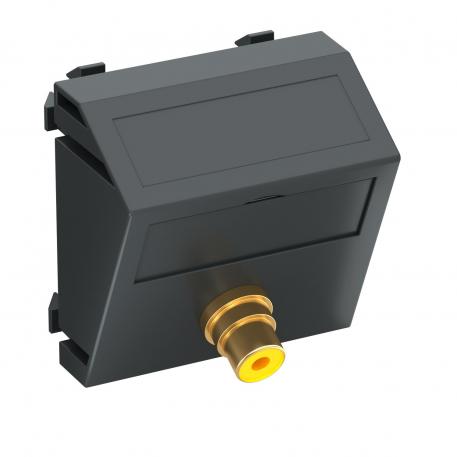

Video cinch connection, 1 module, slanting outlet, as 1:1 coupling, black-grey Sloping | | Cinch | Black-grey; RAL 7021

Video cinch connection, 1 module, slanting outlet, as 1:1 coupling, black-grey

Item no. 6105009 | EAN 4012195900306

Item no. / Types

Outlet direction

Use	Cinch

Colour	Black-grey; RAL 7021

Product description

Product description

Multimedia support with one cinch connection socket for composite video, slanting cable outlet, with labelling panel, cinch coupling (RCA), socket-socket version, colour coding yellow. Support plate with locking fastening, suitable for horizontal and vertical installation in the system environment.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

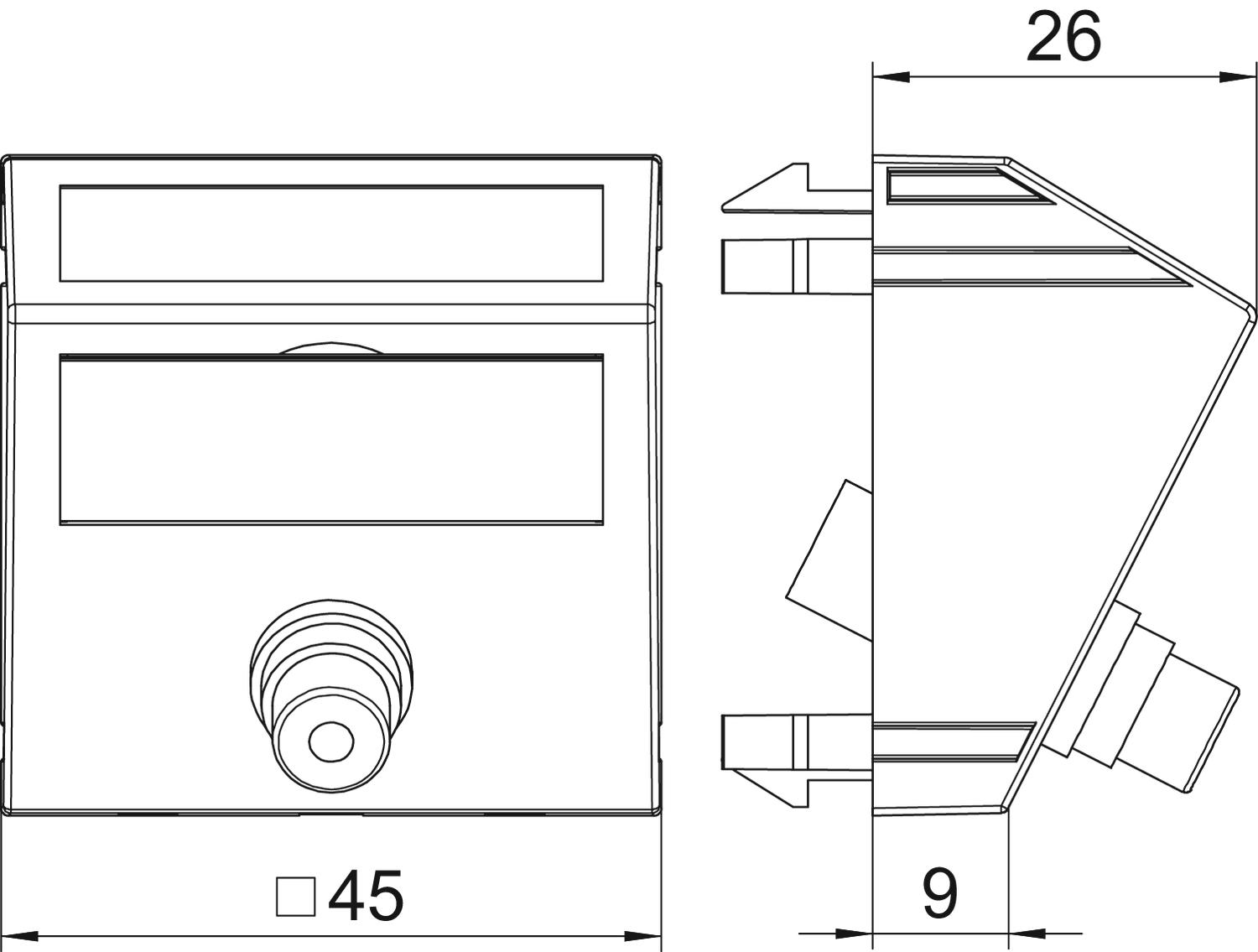

Technical data

Technical data

Colour	Black-grey; RAL 7021
Combination	Basic element with central cover plate
Depth	26 mm
Dimension	45x45mm
Fastening type	Lock
Halogen-free	yes
Height	45 mm
Hinged cover	no
Lamp-wire connector	no
Material	Polycarbonate
Number of units	1

Outlet direction	Sloping
Protection rating	IP20
Strain relief option	no
Support ring	no
Surface version	Matt
Transparent	no
Use	Cinch
Width	45 mm
With dust protection	no
With printed label	no

All types

All types

Types	Outlet direction	Use	Colour	Item no.	Quantity	SSU
MTG-R F SWGR1	Straight	Cinch	Black-grey; RAL 7021	6104997	piece	5 piece
MTG-3R F SWGR1	Straight	Cinch	Black-grey; RAL 7021	6105141	piece	5 piece
MTS-R F SWGR1	Sloping	Cinch	Black-grey; RAL 7021	6105009	piece	5 piece
MTS-3R F SWGR1	Sloping	Cinch	Black-grey; RAL 7021	6105153	piece	5 piece
