Wall and ceiling bracket A2
Item no. 6363746 | EAN 4012196862290
- Product description
-

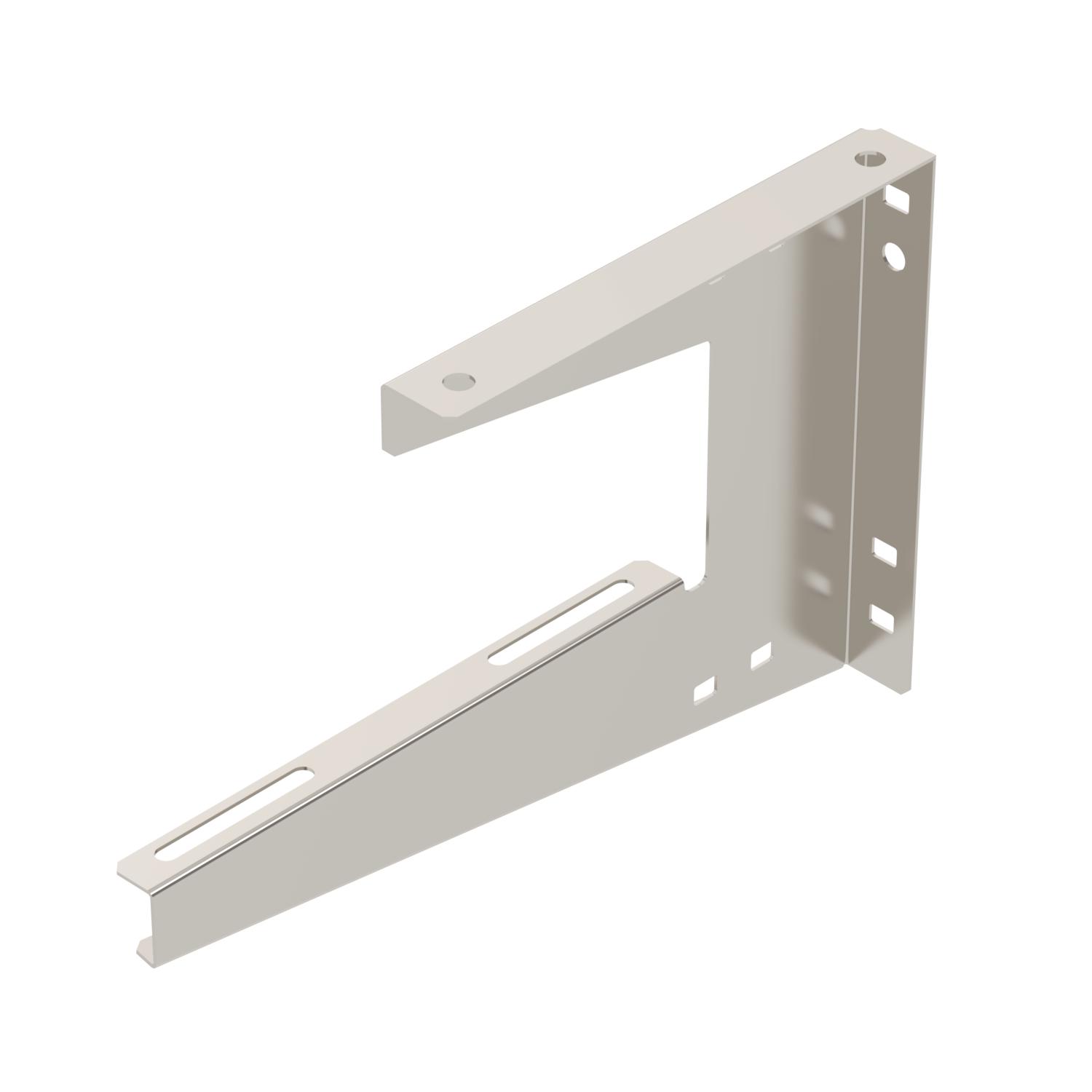

Product descriptionWall and ceiling clamp for universal structural fastening.
-
- Technical data
-
Technical data

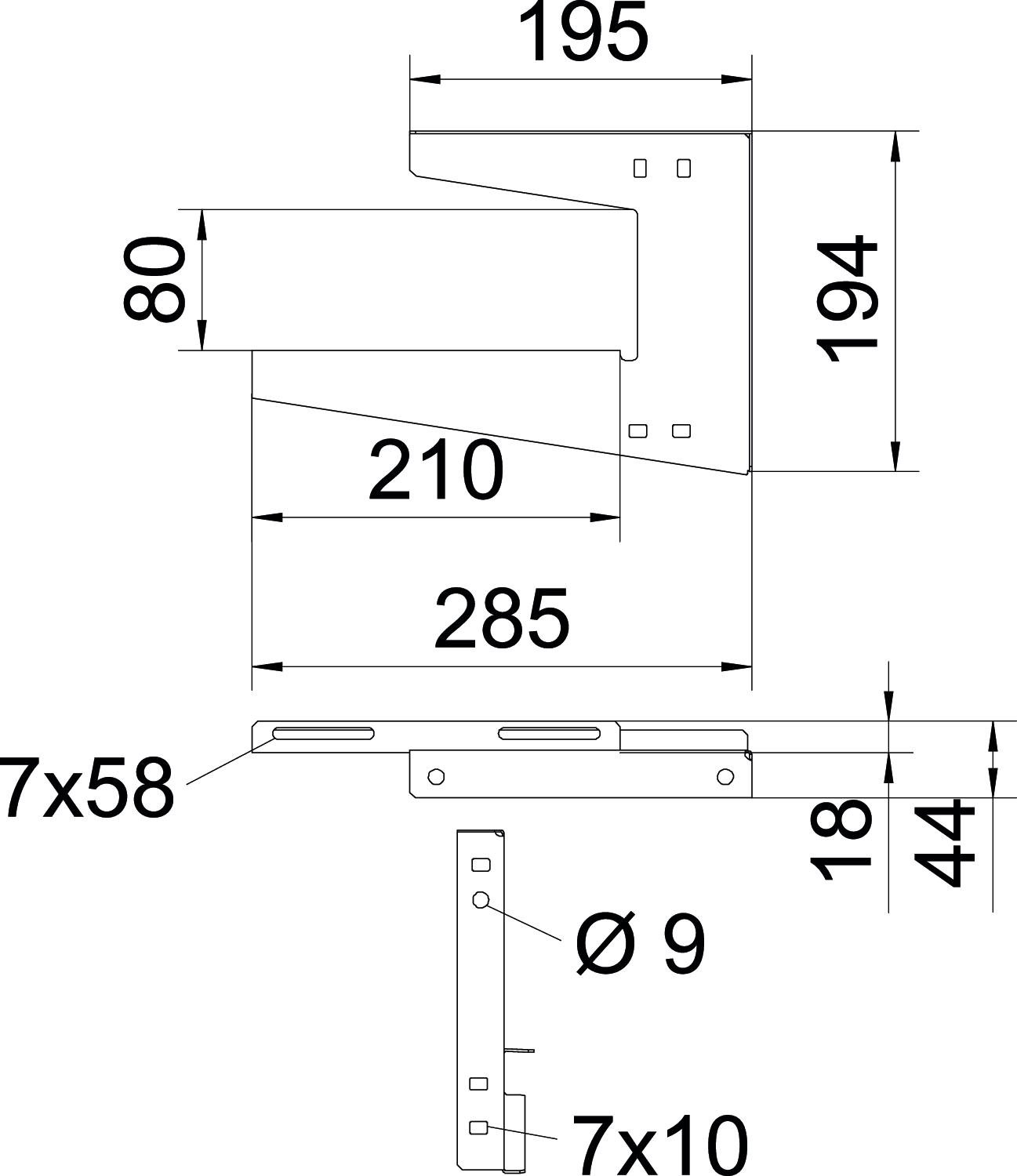

Adjustable no Colour stainless steel Dimension B200mm Dimension A 195 mm Dimension B 210 mm Dimension H 194 mm Dimension H1 (mm) 80 Dimension L 285 mm F in kN ceiling 0,3 kN F in kN wall 0,3 kN for width min. 200 Height 194 mm Hole diameter 7 mm Length 285 mm Maintain electrical functions no Material Stainless steel Material thickness 1,25 mm Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray yes Suitable for metric threaded rod 8 Surface Bright, treated Tray fastening Screw-on Version for Suspension bracket (C clamp) Width 210 mm - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut A2
FRSB 6x12 A2 6406138 100 piece - Downloads
-
Data sheet WDB L 200 A2 / 6363746 , 0.19MB , pdfEU declaration of conformity WDB L 200 A2 / 6363746 , 0.10MB , pdfREACH Declaration of conformity WDB L 200 A2 / 6363746 , 0.12MB , pdfRoHS Declaration of conformity WDB L 200 A2 / 6363746 , 0.09MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
