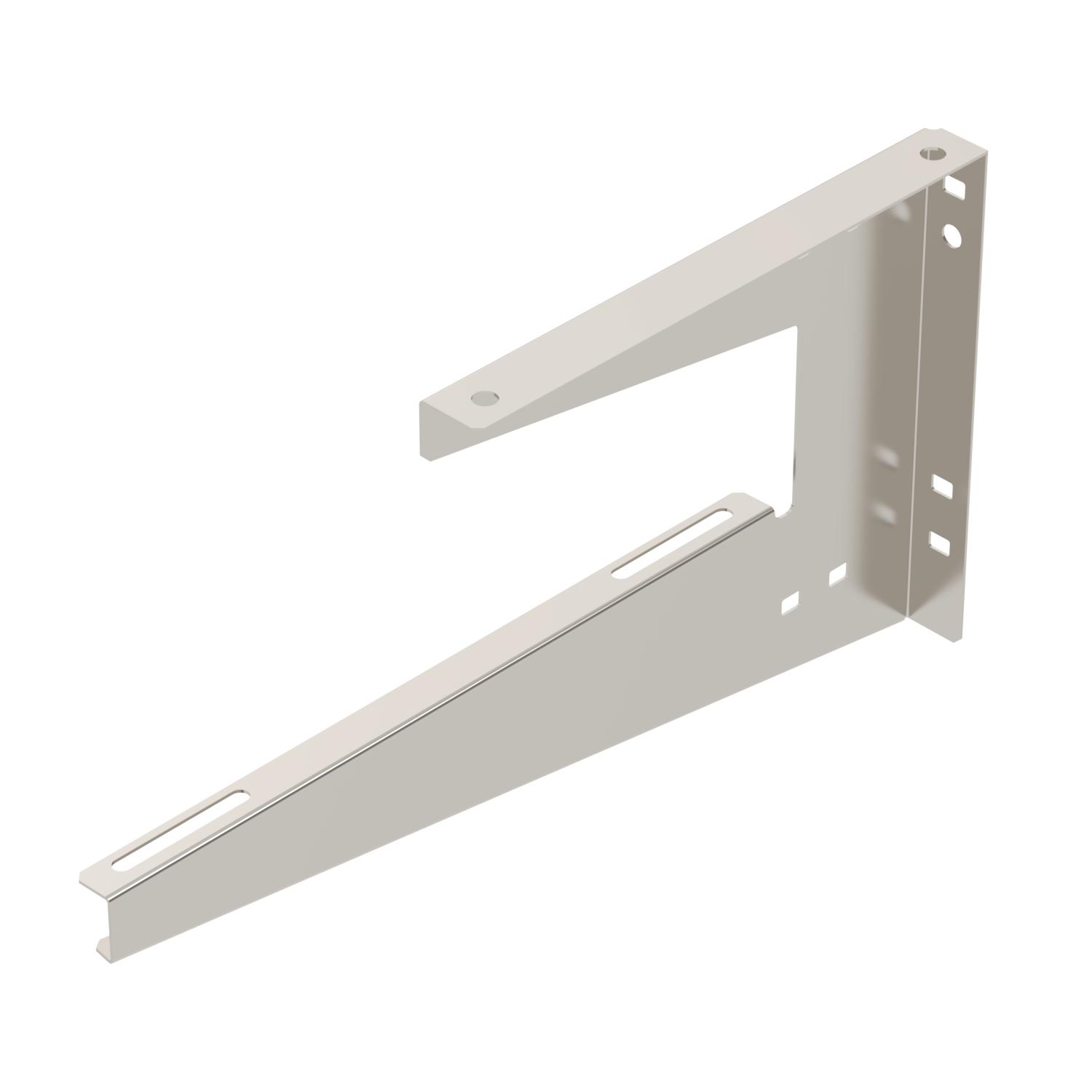

Wall and ceiling bracket A2
Item no. 6363748 | EAN 4012196862306
- Product description
-
Product descriptionWall and ceiling clamp for universal structural fastening.
-
- Technical data
-
Technical data

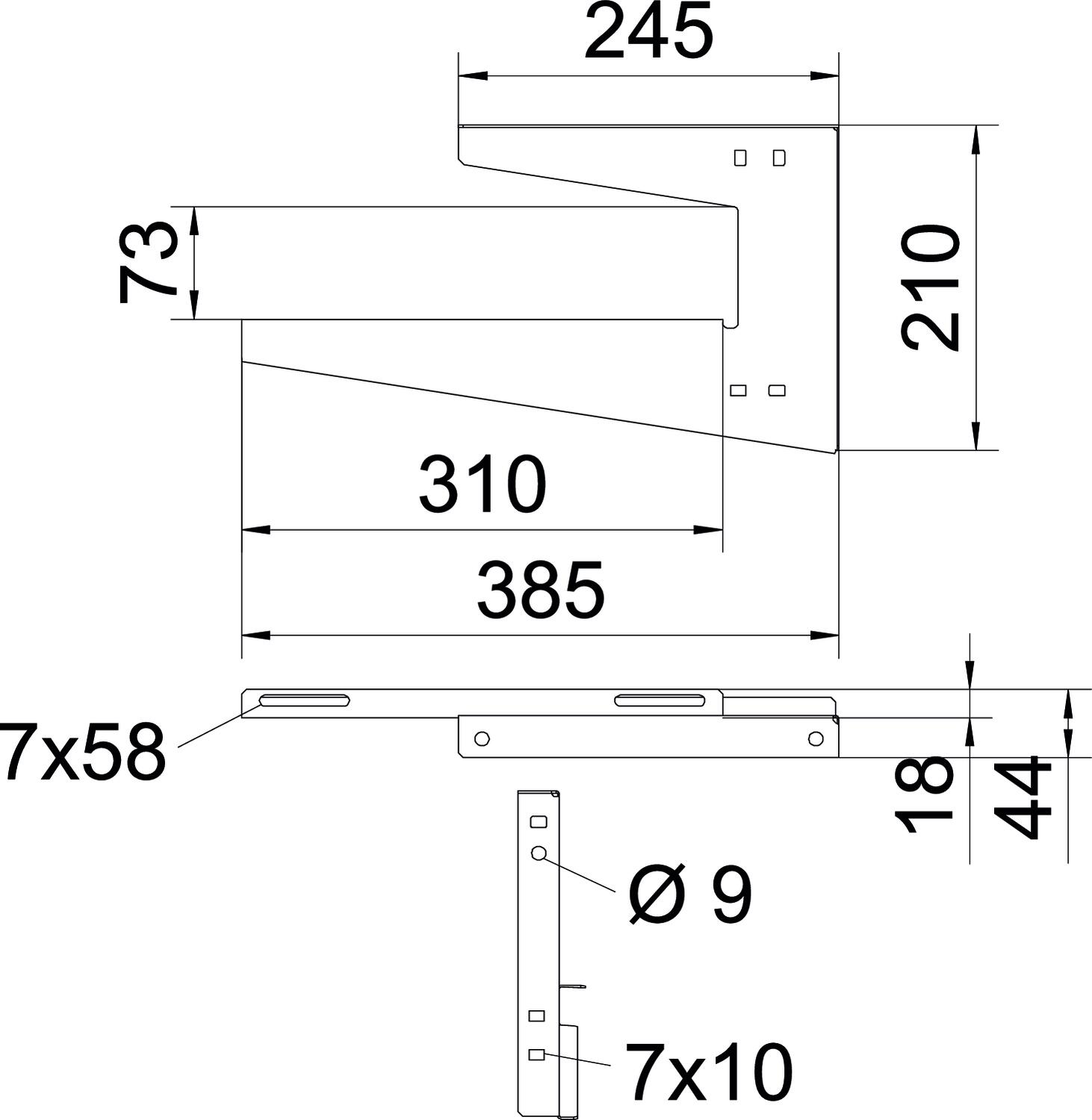

Adjustable no Colour stainless steel Dimension B300mm Dimension A 245 mm Dimension B 310 mm Dimension H 210 mm Dimension H1 (mm) 73 Dimension L 385 mm F in kN ceiling 0,2 kN F in kN wall 0,2 kN for width min. 300 Height 210 mm Hole diameter 7 mm Length 385 mm Maintain electrical functions no Material Stainless steel Material thickness 1,25 mm Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray yes Suitable for metric threaded rod 8 Surface Bright, treated Tray fastening Screw-on Version for Suspension bracket (C clamp) Width 310 mm - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut A2
FRSB 6x12 A2 6406138 100 piece - Downloads
-
Data sheet WDB L 300 A2 / 6363748 , 0.19MB , pdfEU declaration of conformity WDB L 300 A2 / 6363748 , 0.11MB , pdfREACH Declaration of conformity WDB L 300 A2 / 6363748 , 0.12MB , pdfRoHS Declaration of conformity WDB L 300 A2 / 6363748 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
