Wall and ceiling bracket FS 160 | 186 | 0.22 | 0.22 | | 7 | zinc
morepic-1 morepic-2

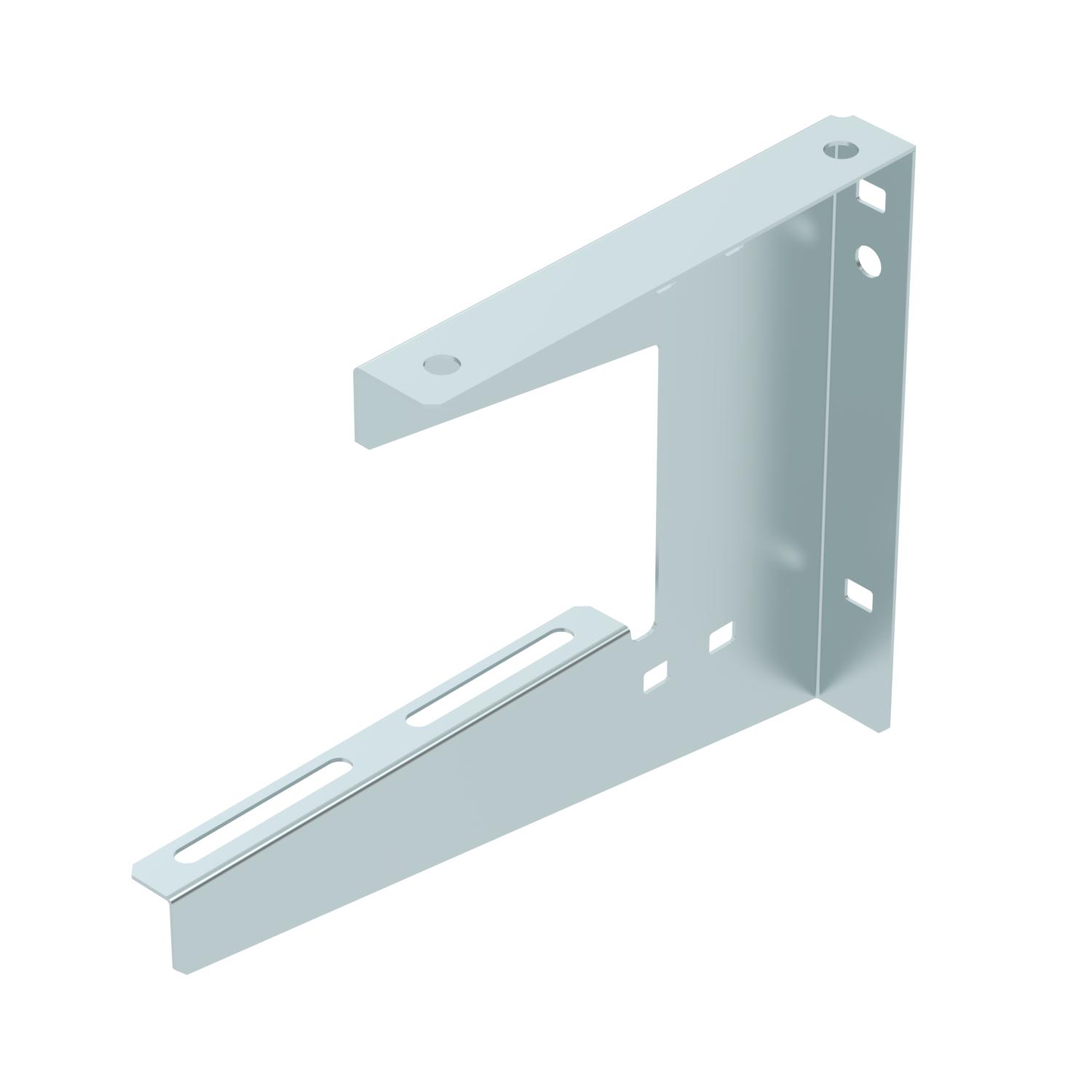

Wall and ceiling bracket FS

Item no. 6363704 | EAN 4012196862085

7 mm
zinc
Back to overview
Product description
Product description
Wall and ceiling bracket for universal structural fastening.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Adjustable no
Colour zinc

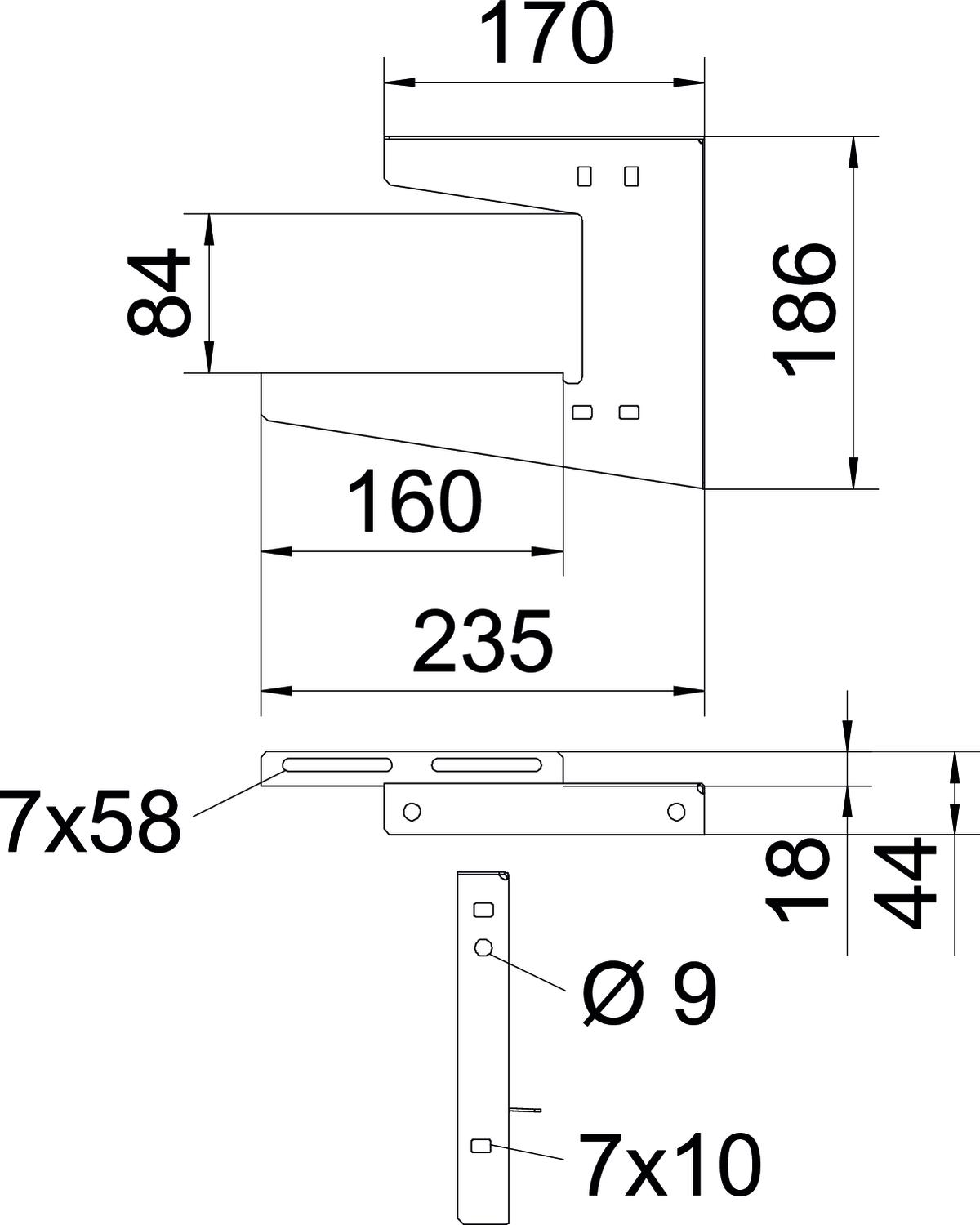

Dimension B150mm
Dimension A 170 mm
Dimension B 160 mm
Dimension H 186 mm
Dimension H1 (mm) 84
Dimension L 235 mm
F in kN ceiling 0,22 kN
F in kN wall 0,22 kN
for width min. 150
Height 186 mm
Hole diameter 7 mm
Length 235 mm
Maintain electrical functions no
Material Steel
Material thickness 1,25 mm
Suitable for cable ladder yes
Suitable for cable tray yes
Suitable for mesh cable tray yes
Suitable for metric threaded rod 8
Surface Strip galvanized
Tray fastening Screw-on
Version for Suspension bracket (C clamp)
Width 160 mm
All types

All types

Types Width Height F in kN ceiling F in kN wall Hole diameter Colour Item no. Quantity SSU
WDB L 50 FS 60 mm 170 mm 0.4 kN 0.4 kN 7 mm zinc 6363700
1 piece
WDB L 100 FS 110 mm 179 mm 0.25 kN 0.25 kN 7 mm zinc 6363702
1 piece
WDB L 150 FS 160 mm 186 mm 0.22 kN 0.22 kN 7 mm zinc 6363704
1 piece
WDB L 200 FS 210 mm 194 mm 0.3 kN 0.3 kN 7 mm zinc 6363706
1 piece
WDB L 300 FS 310 mm 210 mm 0.2 kN 0.2 kN 7 mm zinc 6363708
1 piece
WDB L 400 FS 410 mm 226 mm 0.12 kN 0.12 kN 7 mm zinc 6363710
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F Truss-head bolt with flange nut F FRSB 6x12 F 6406122
100 piece
