Wall and ceiling bracket FT 210 | 194 | 0.3 | 0.3 | | 7 | zinc
morepic-1 morepic-2

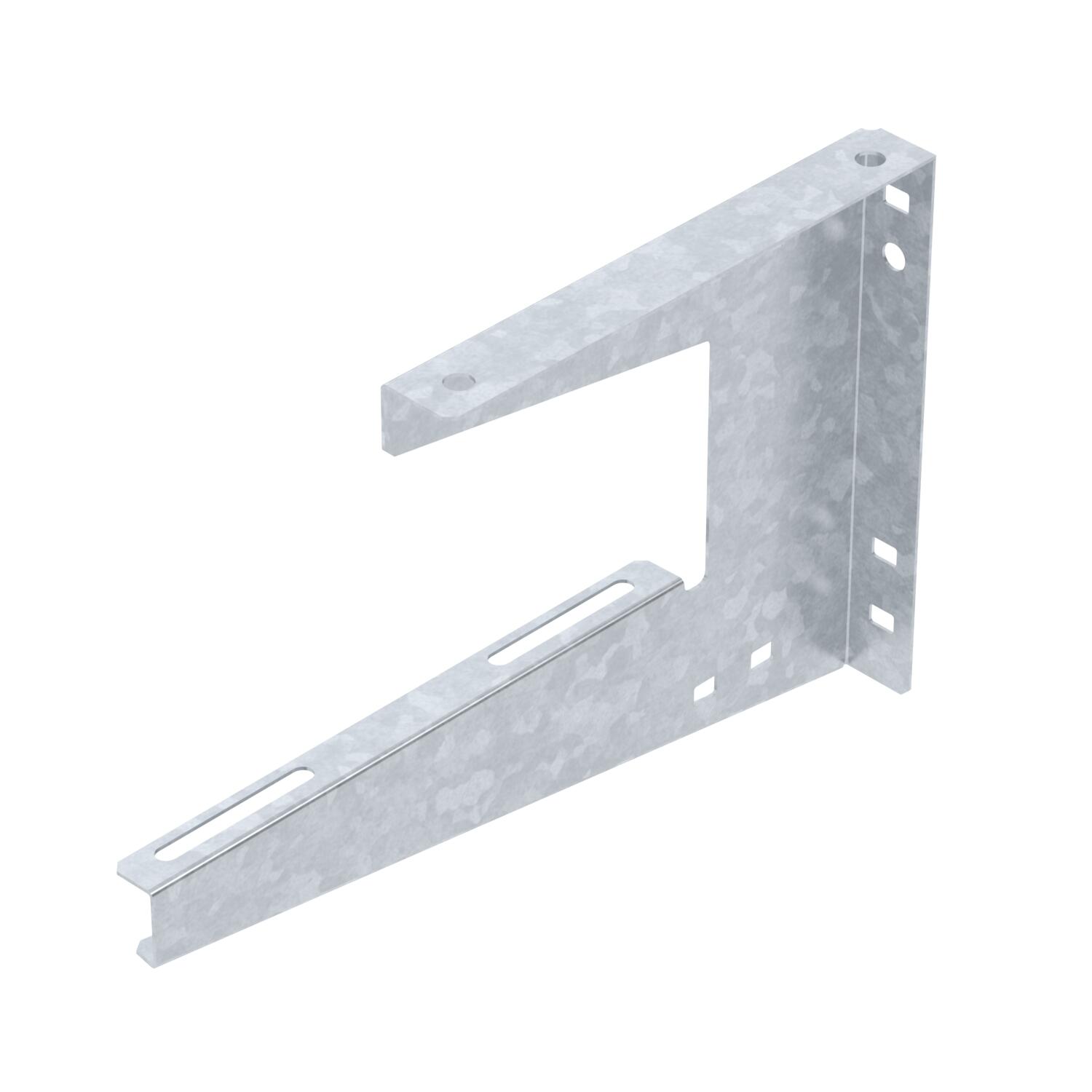

Wall and ceiling bracket FT

Item no. 6363726 | EAN 4012196862207

7 mm
zinc
Back to overview
Product description
Product description
Wall and ceiling bracket for universal structural fastening.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Adjustable no
Colour zinc

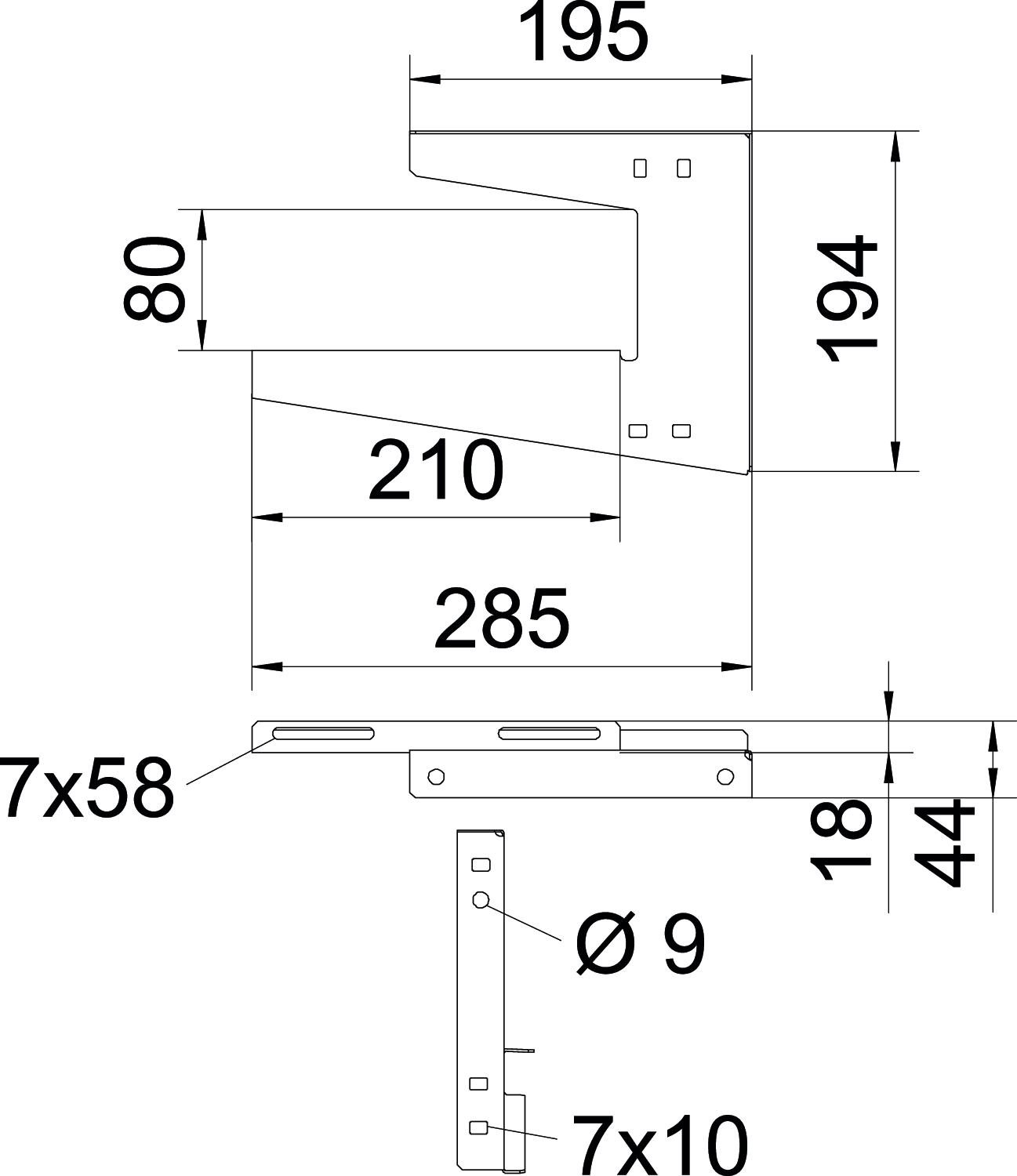

Dimension B200mm
Dimension A 195 mm
Dimension B 210 mm
Dimension H 194 mm
Dimension H1 (mm) 80
Dimension L 285 mm
F in kN ceiling 0,3 kN
F in kN wall 0,3 kN
for width min. 200
Height 194 mm
Hole diameter 7 mm
Length 285 mm
Maintain electrical functions no
Material Steel
Material thickness 1,25 mm
Suitable for cable ladder yes
Suitable for cable tray yes
Suitable for mesh cable tray yes
Suitable for metric threaded rod 8
Surface Hot-dip galvanised
Tray fastening Screw-on
Version for Suspension bracket (C clamp)
Width 210 mm
All types

All types

Types Width Height F in kN ceiling F in kN wall Hole diameter Colour Item no. Quantity SSU
WDB L 50 FT 60 mm 170 mm 0.4 kN 0.4 kN 7 mm zinc 6363720
1 piece
WDB L 100 FT 110 mm 179 mm 0.25 kN 0.25 kN 7 mm zinc 6363722
1 piece
WDB L 150 FT 160 mm 186 mm 0.22 kN 0.22 kN 7 mm zinc 6363724
1 piece
WDB L 200 FT 210 mm 194 mm 0.3 kN 0.3 kN 7 mm zinc 6363726
1 piece
WDB L 300 FT 310 mm 210 mm 0.2 kN 0.2 kN 7 mm zinc 6363728
1 piece
WDB L 400 FT 410 mm 226 mm 0.12 kN 0.12 kN 7 mm zinc 6363730
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F Truss-head bolt with flange nut F FRSB 6x12 F 6406122
100 piece
Downloads

Download

Download
Download

EU declaration of conformity WDB L 200 FT / 6363726 , 0.10MB , pdf
Download
REACH Declaration of conformity WDB L 200 FT / 6363726 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDB L 200 FT / 6363726 , 0.13MB , pdf
Download

Download

WDB L 200 FT / 6363726
