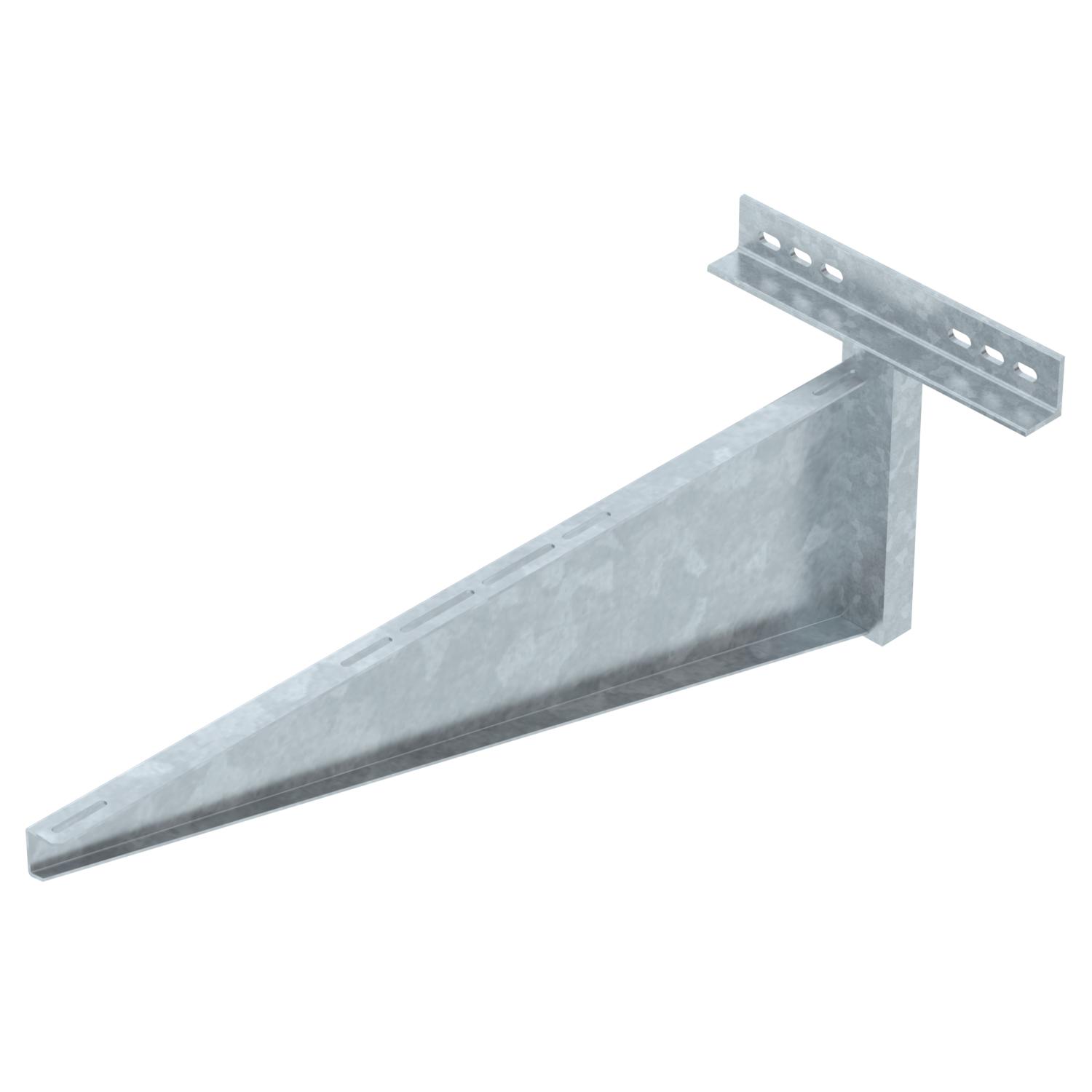

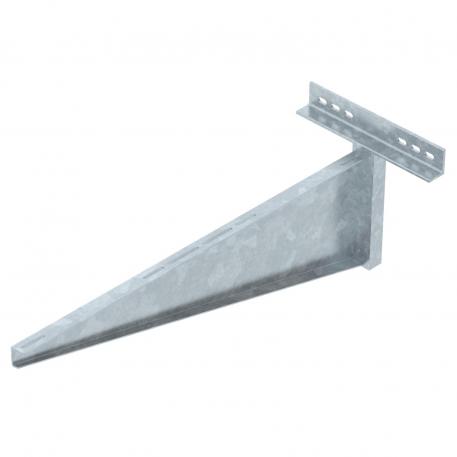

Wall and clamping bracket AWSS FT
Item no. 6417938 | EAN 4012196340750
- Product description
-
Product description
Wall bracket, heavy duty.
-
- Technical data
-
Technical data

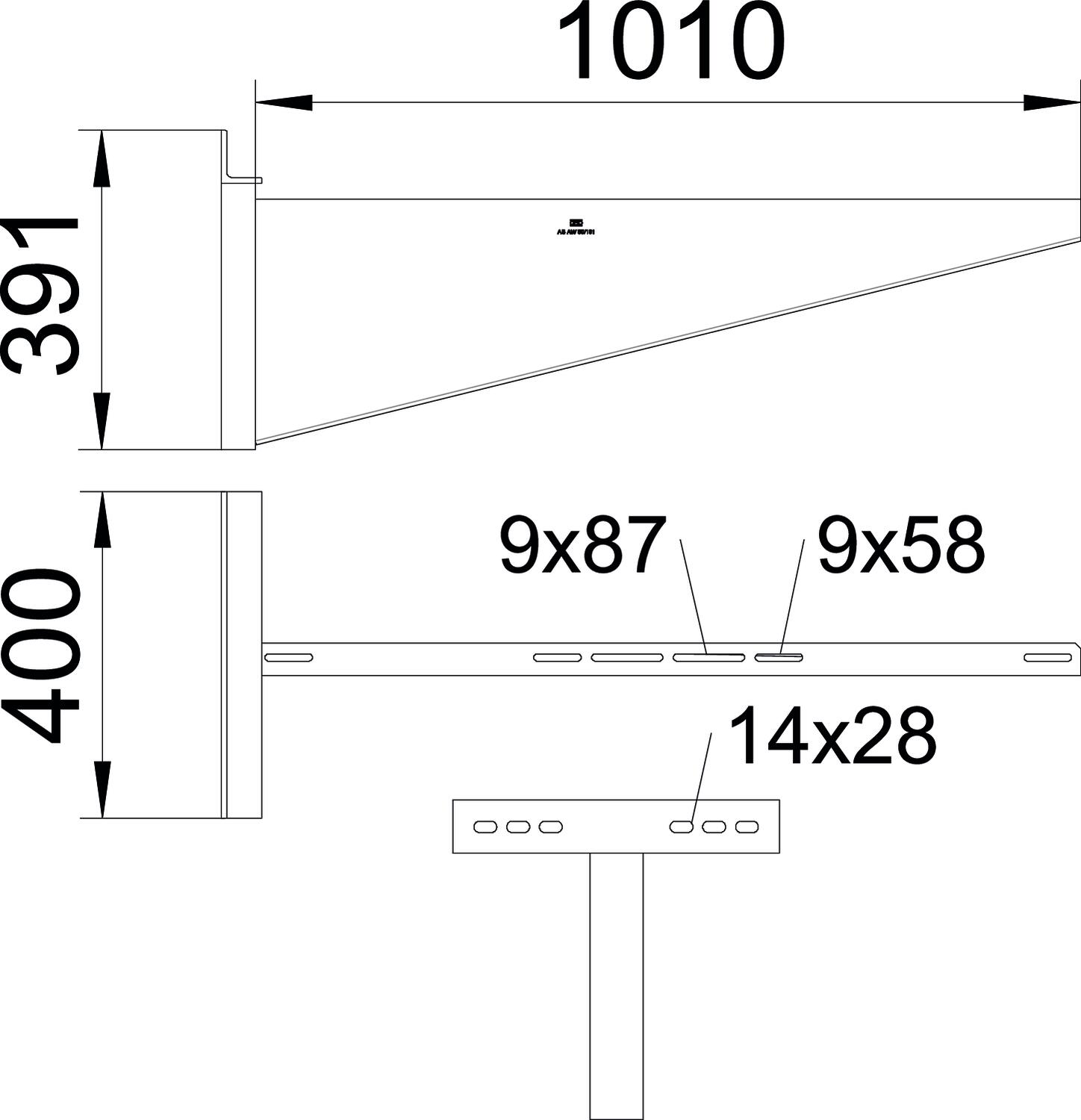

Dimension B1010mm Dimension A 400 mm Dimension b 160 mm Dimension B 1010 mm Dimension b1 240 mm Dimension b2 320 mm Dimension H 391 mm F in kN 6 kN Height 391 mm Hole diameter 14 mm Length 400 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Wall brackets Width 1010 mm - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
