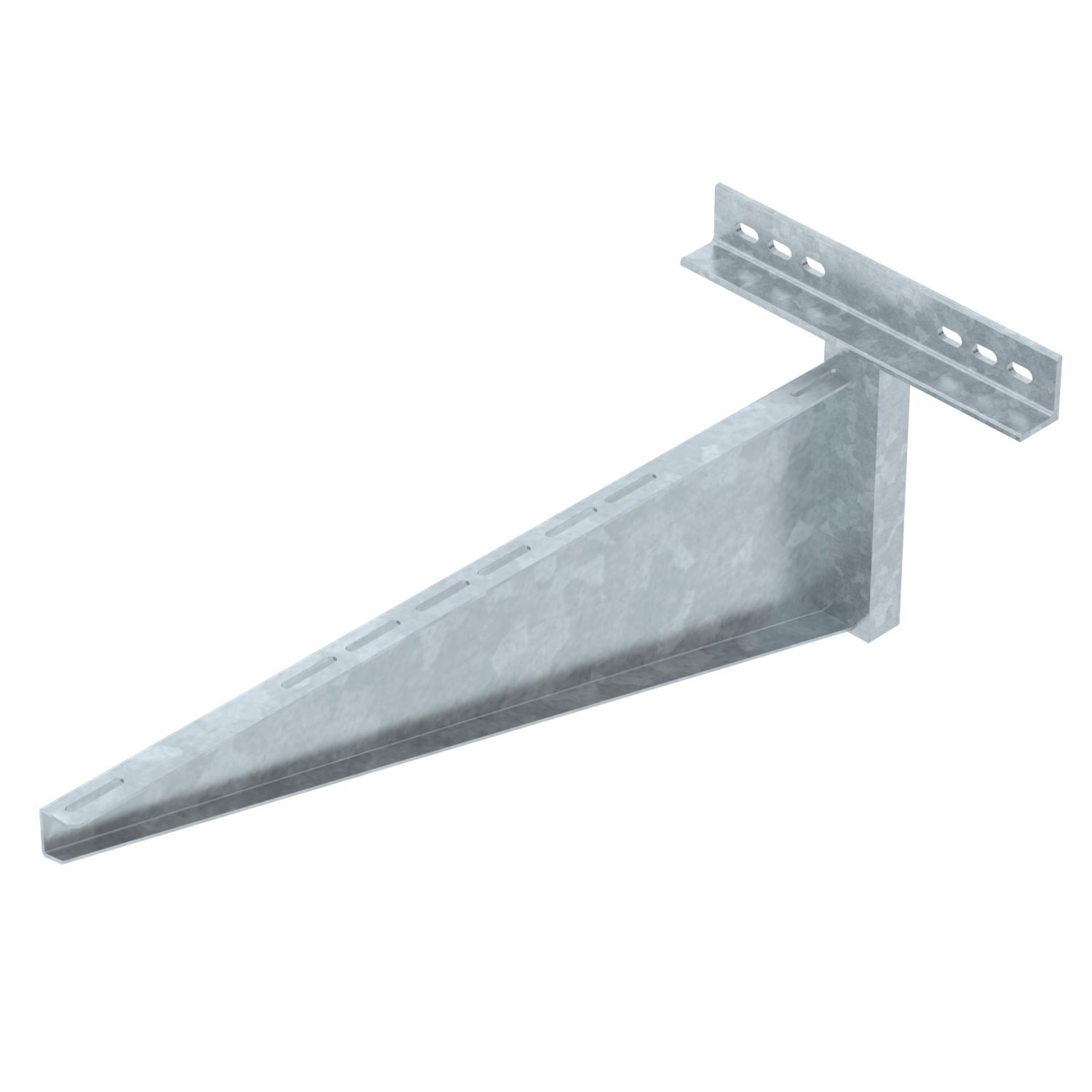

Wall and clamping bracket AWSS FT
Item no. 6417934 | EAN 4012196340699
- Product description
-
Product descriptionWall bracket, heavy duty.
-
- Technical data
-
Technical data

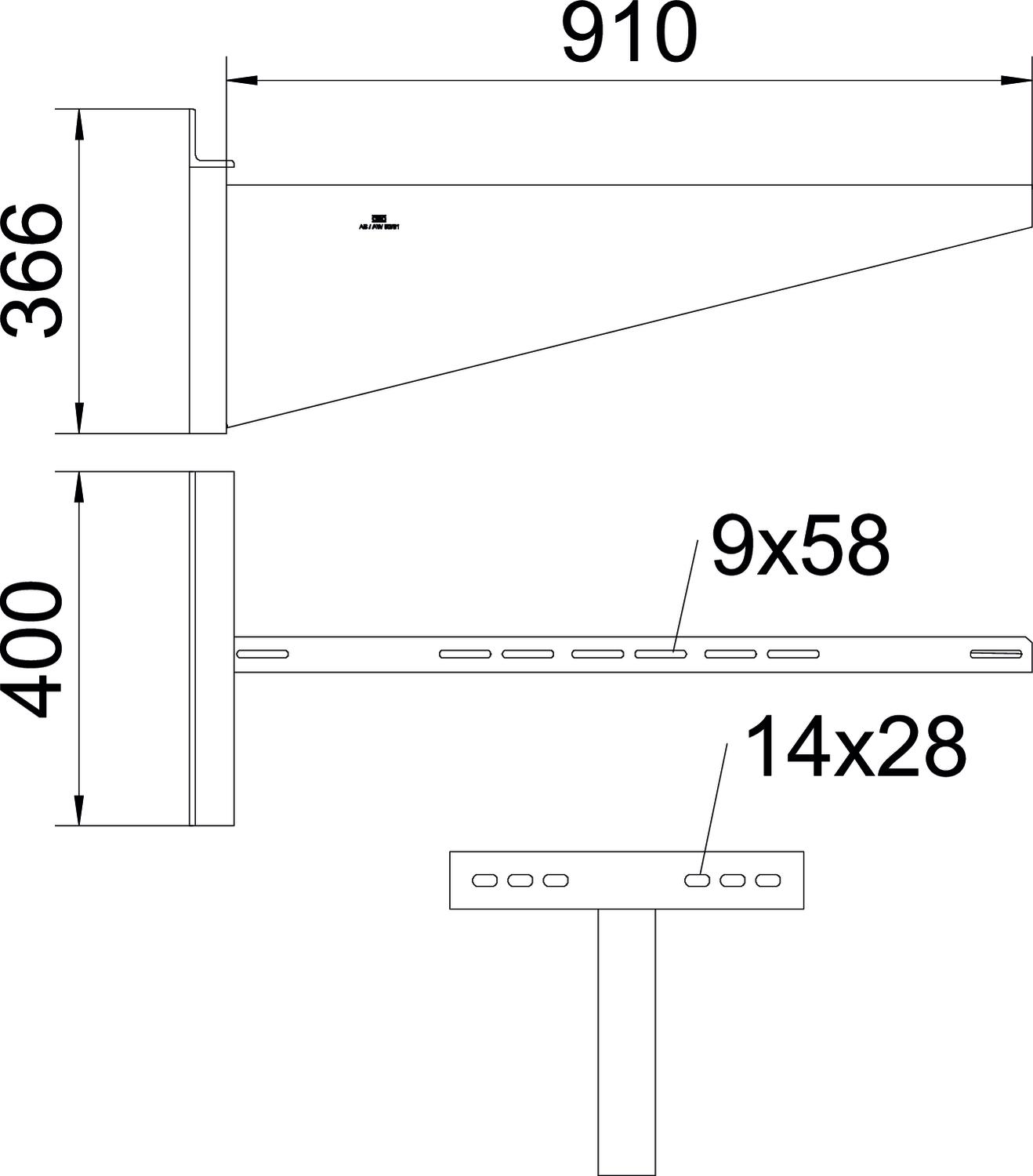

Colour zinc Dimension B910mm Dimension A 400 mm Dimension B 910 mm Dimension b 160 mm Dimension b1 240 mm Dimension b2 320 mm Dimension H 366 mm F in kN 6,5 kN Height 366 mm Hole diameter 14 mm Length 400 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Wall brackets Width 910 mm - All types
-
All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
Data sheet AWSS 91 FT / 6417934 , 0.17MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity AWSS 91 FT / 6417934 , 0.13MB , pdfREACH Declaration of conformity AWSS 91 FT / 6417934 , 0.12MB , pdfRoHS Declaration of conformity AWSS 91 FT / 6417934 , 0.12MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
