Wall bracket AW 80
Item no. 6417795 | EAN 4012196203598
- Product description
-

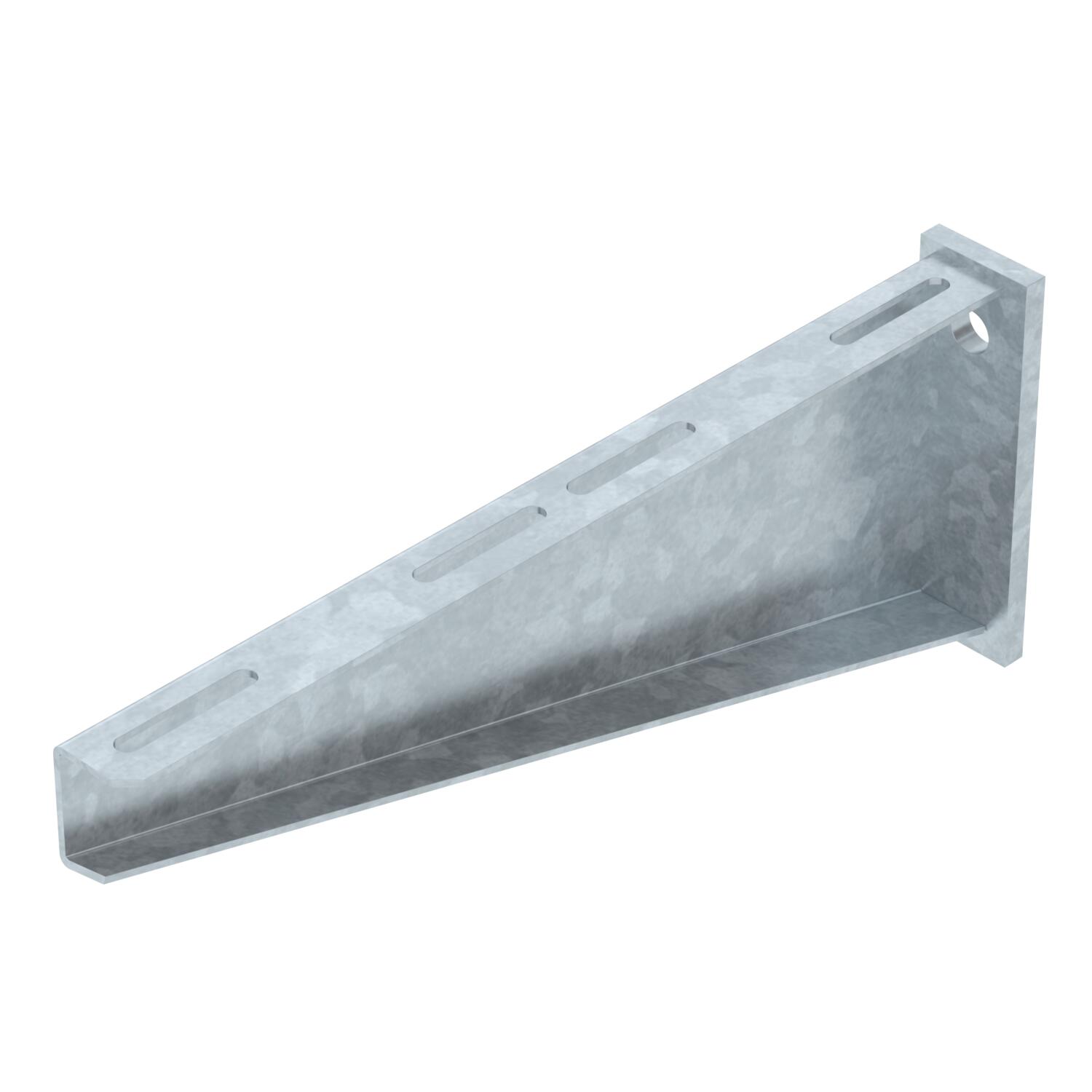

Product descriptionHeavy-duty wall bracket with welded head plate.
-
- Technical data
-
Technical data
Angle range, max. 90 mm Angle range, min. 90 mm Colour zinc Dimension B410mm Dimension A 50 mm Dimension B 410 mm Dimension H 165 mm Dimension L 410 mm F in kN 8 kN Height 165 mm Hole diameter 17,5 mm Length 50 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Wall and support bracket Width 410 mm Technical data

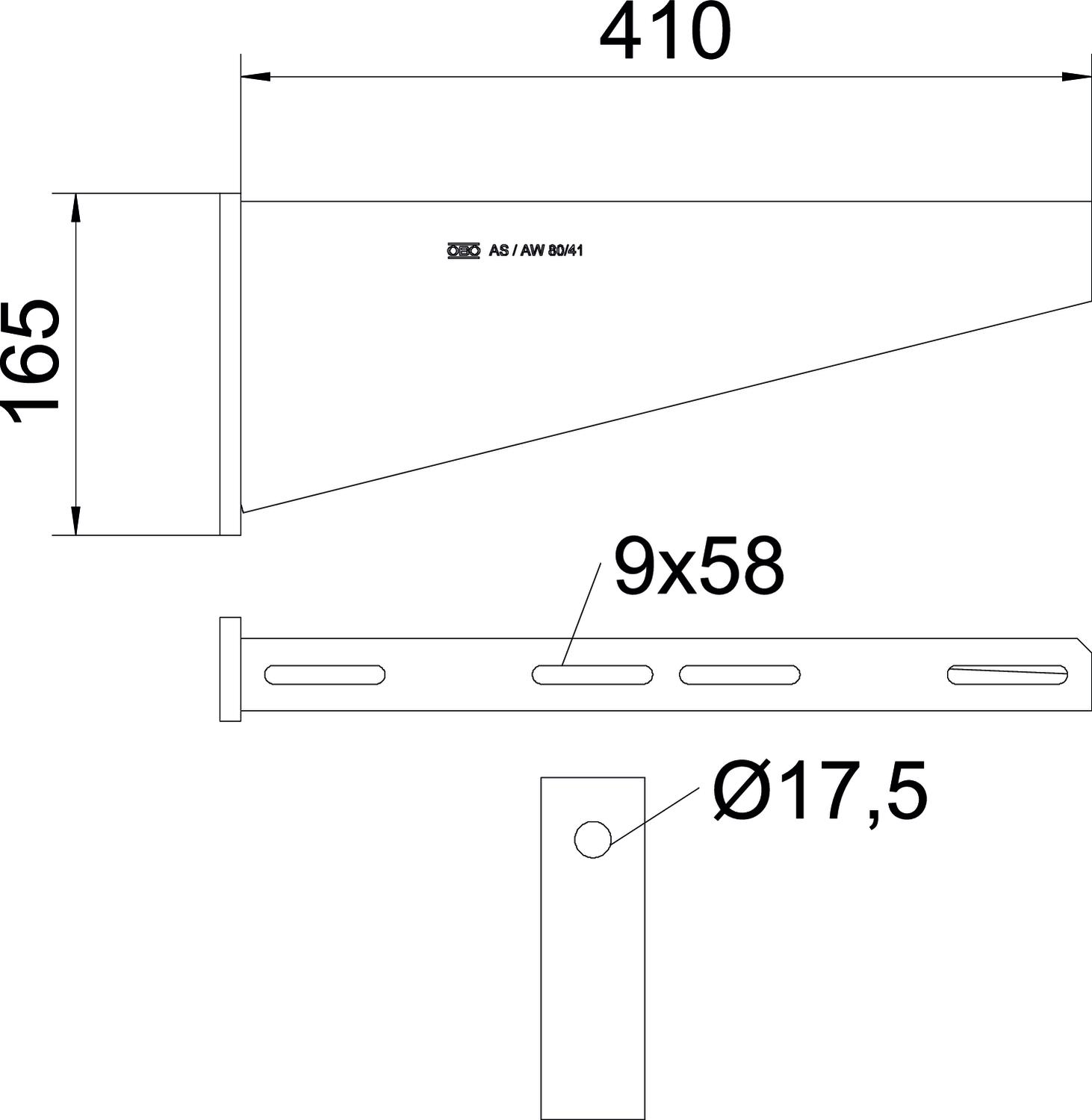

Load diagram, bracket, type AW 80
-
Bending of the bracket tip at permitted bracket load
-
Permitted bracket load in kN without man load
-
Load curve with bracket lengths in mm
-
- All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
Data sheet AW 80 41 FT / 6417795 , 0.21MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity AW 80 41 FT / 6417795 , 0.13MB , pdfREACH Declaration of conformity AW 80 41 FT / 6417795 , 0.12MB , pdfRoHS Declaration of conformity AW 80 41 FT / 6417795 , 0.13MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfMounting instructions Mounting instructions, U support systems , 0.04MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
