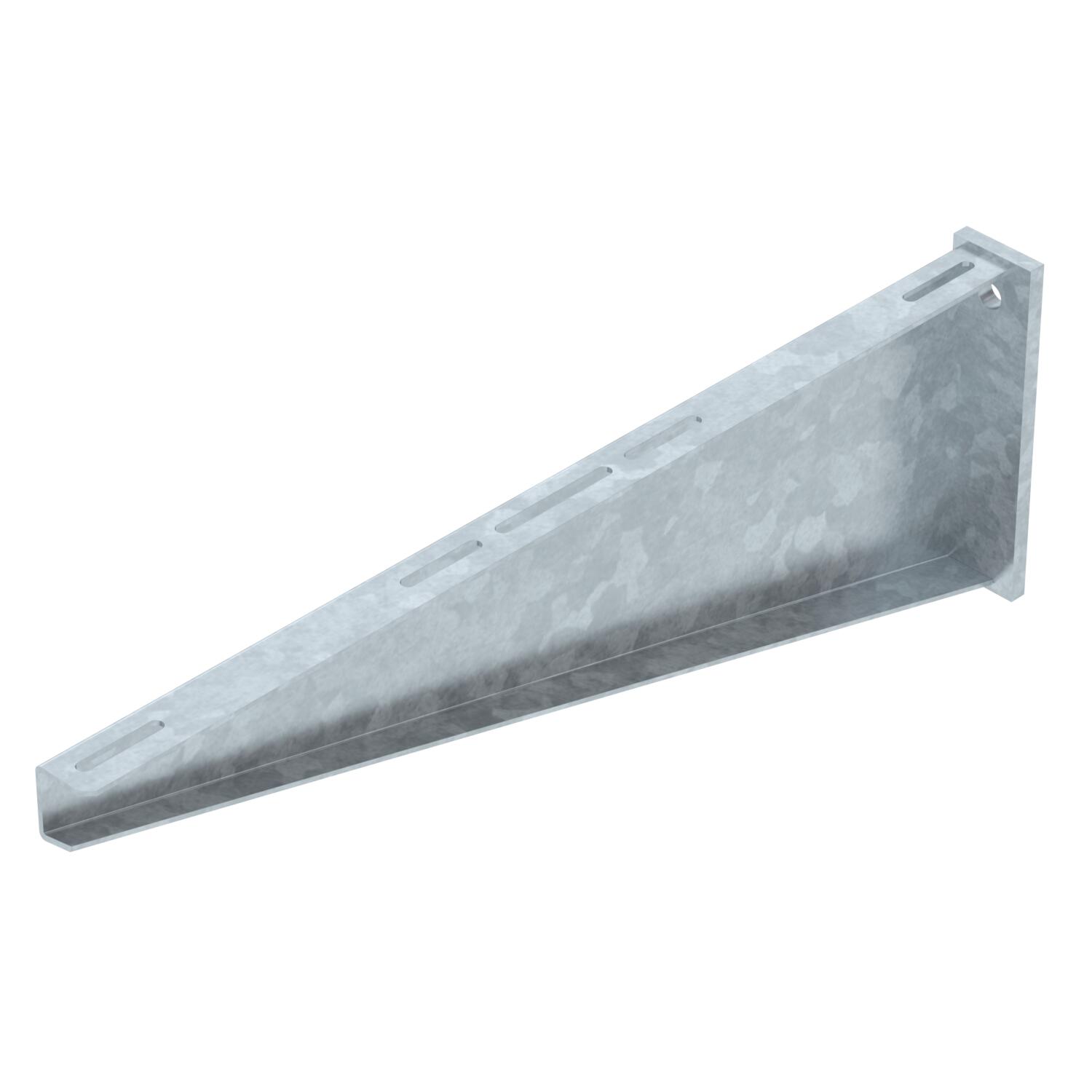

Wall bracket AW 80
Item no. 6417868 | EAN 4012196203772
- Product description
-
Product descriptionHeavy-duty wall bracket with welded head plate.
-
- Technical data
-
Technical data

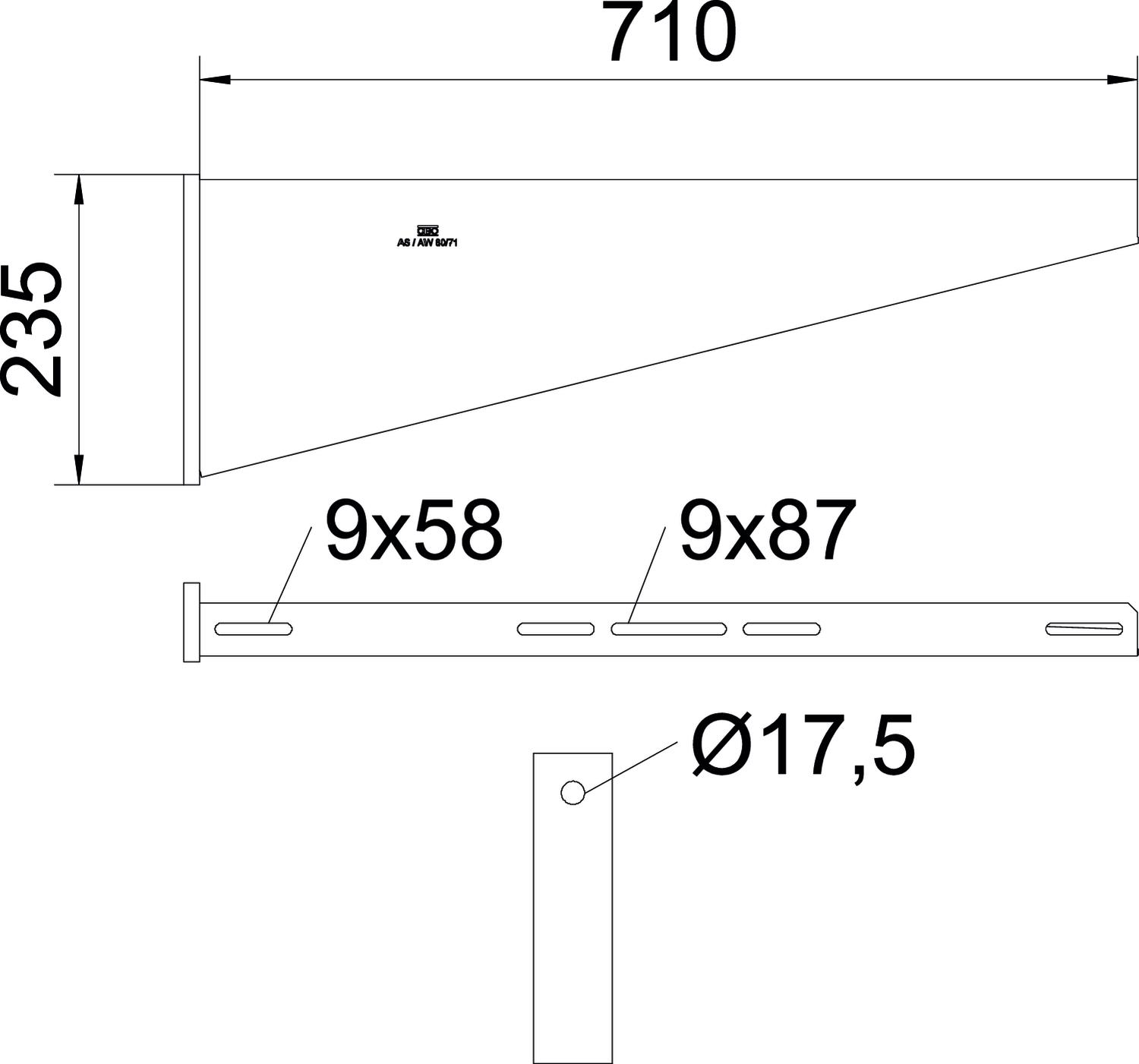

Angle range, max. 90 mm Angle range, min. 90 mm Colour zinc CO₂ Footprint (GWP) Cradle-to-Gate 13,7 kg CO₂e / 1 Piece Dimension B710mm Dimension A 60 mm Dimension B 710 mm Dimension H 235 mm Dimension L 710 mm F in kN 8 kN Height 235 mm Hole diameter 17,5 mm Length 60 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Wall and support bracket Width 710 mm Technical data
Load diagram, bracket, type AW 80
-
Bending of the bracket tip at permitted bracket load
-
Permitted bracket load in kN without man load
-
Load curve with bracket lengths in mm
-
