- Product description
-

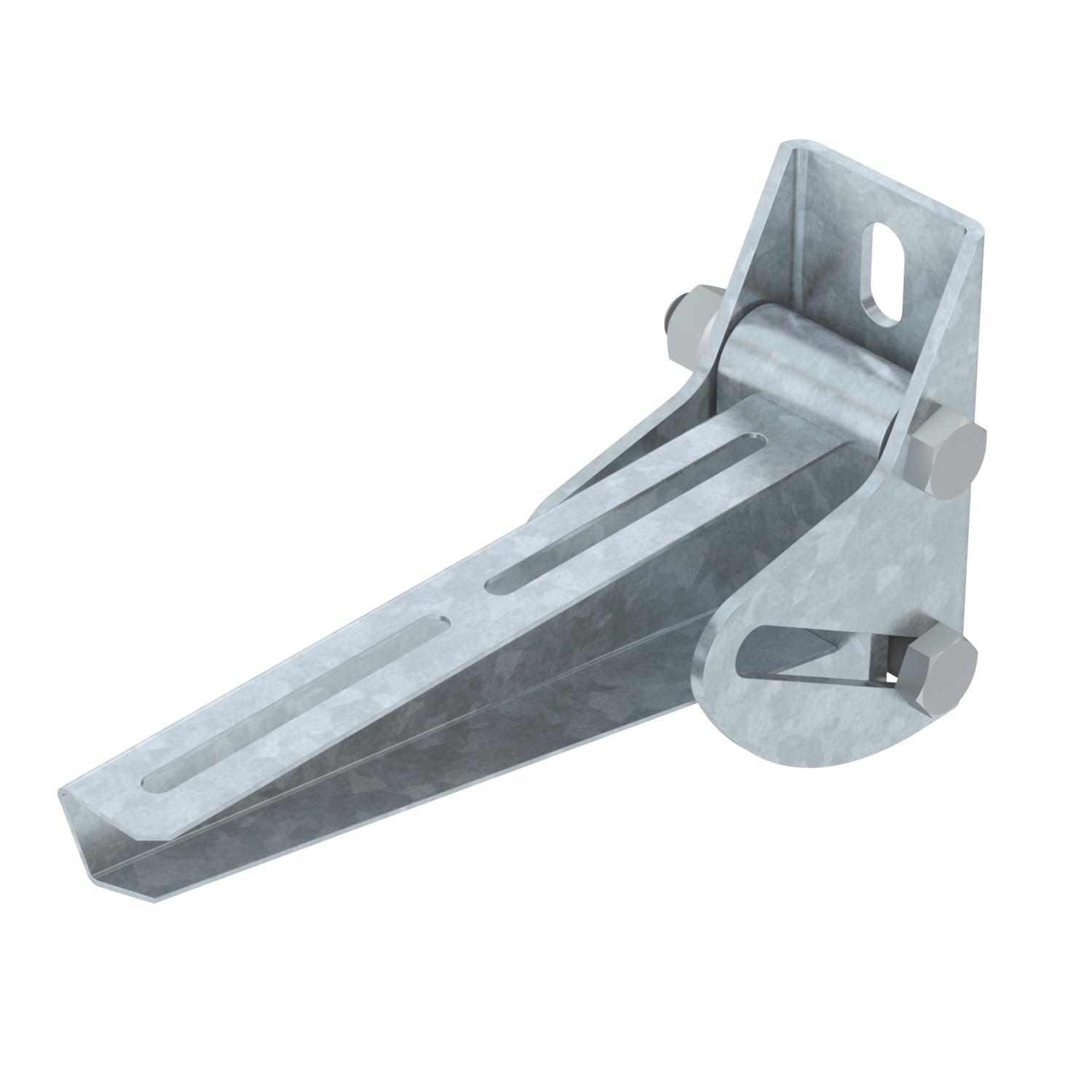

Product descriptionVariable wall bracket for fixing to sloping or vaulted walls.
- Technical data
-
Technical data
Colour zinc Dimension B210mm Dimension A 60 mm Dimension B 210 mm Dimension H 130 mm Dimension L 210 mm F in kN 0,9 kN for width max. 90 mm for width min. 60 Height 130 mm Hole diameter 13 mm Length 60 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Wall brackets Width 210 mm - All types
- Downloads
-
Data sheet AWV 21 FT / 6419534 , 0.15MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity AWV 21 FT / 6419534 , 0.13MB , pdfREACH Declaration of conformity AWV 21 FT / 6419534 , 0.12MB , pdfRoHS Declaration of conformity AWV 21 FT / 6419534 , 0.12MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfMounting instructions Mounting instructions, U support systems , 0.04MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
