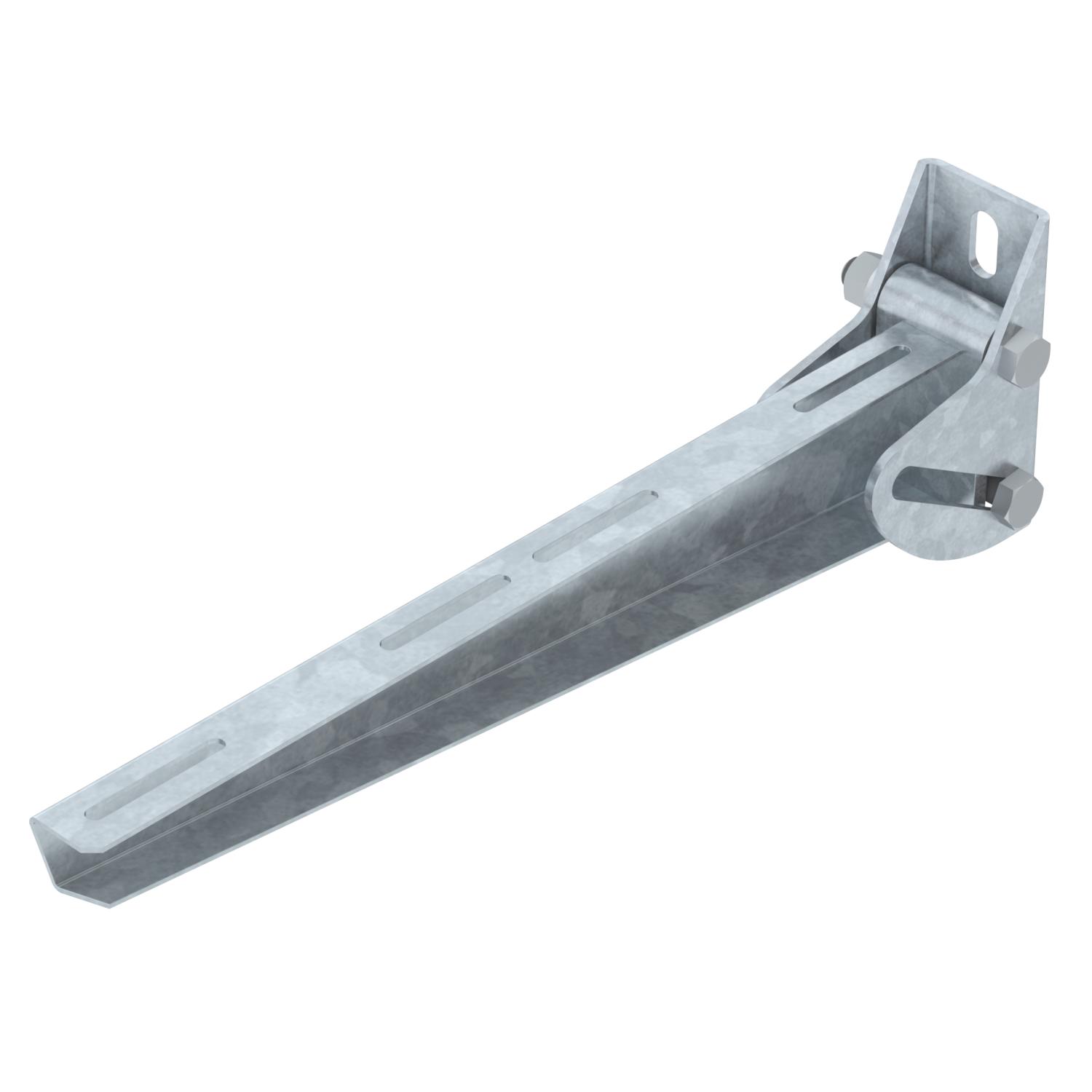

Wall bracket, variable AWV FT

Item no. 6419577 | EAN 4012196206414

0.9 kN
Product description
Product description
Variable wall bracket for fixing to sloping or vaulted walls.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Wall and support brackets
Technical data

Technical data

Colour zinc

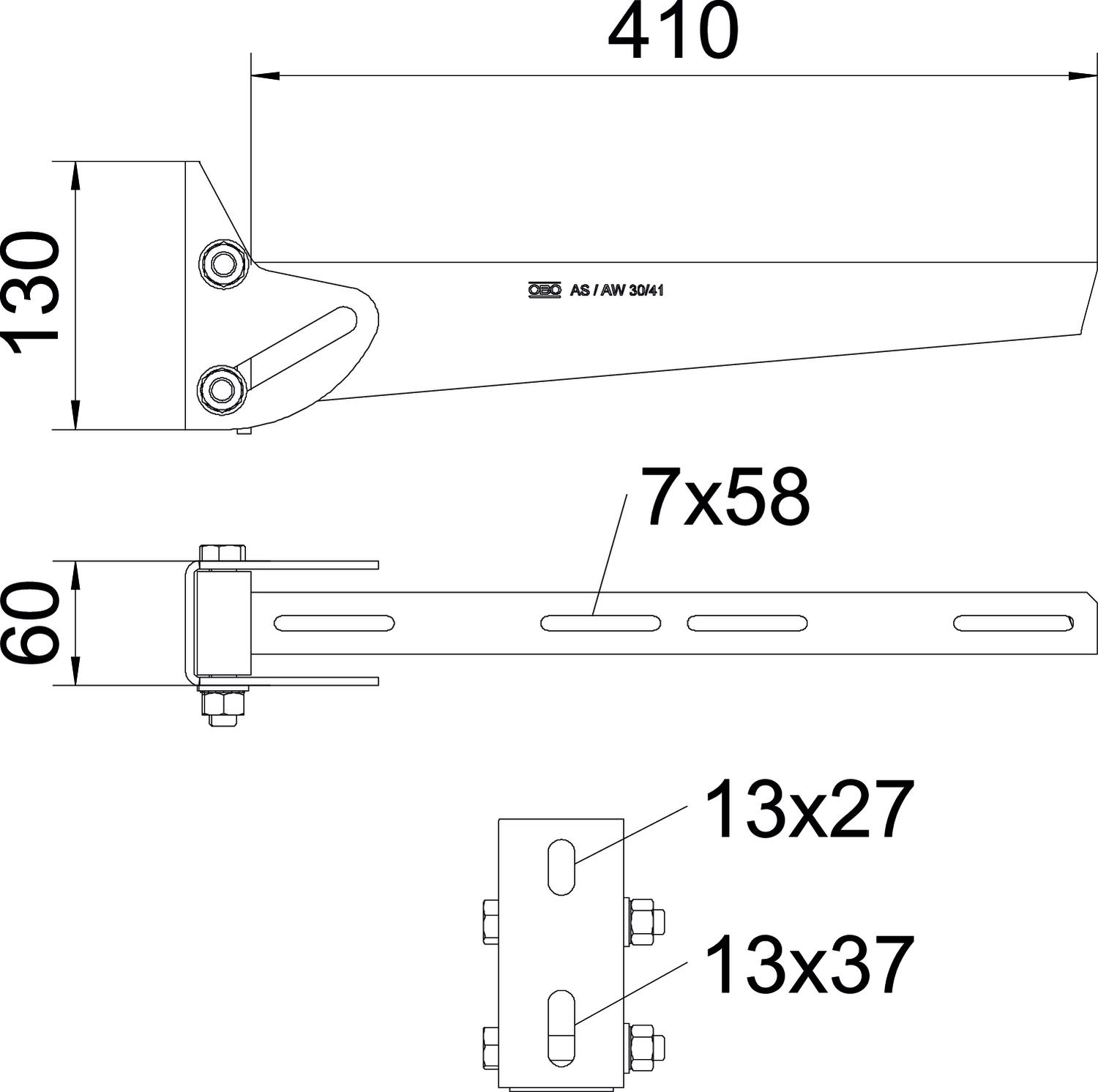

Dimension B410mm
Dimension A 60 mm
Dimension B 410 mm
Dimension H 130 mm
Dimension L 410 mm
F in kN 0,9 kN
for width max. 90 mm
for width min. 60
Height 130 mm
Hole diameter 13 mm
Length 60 mm
Maintain electrical functions no
Material Steel
Rustproof steel, pickled no
Surface Hot-dip galvanised
Version for Wall brackets
Width 410 mm
All types

All types

Types Width F in kN Item no. Quantity SSU
AWV 21 FT 210 mm 0.9 kN 6419534
5 piece
AWV 31 FT 310 mm 0.9 kN 6419550
5 piece
AWV 41 FT 410 mm 0.9 kN 6419577
5 piece
AWV 51 FT 510 mm 0.9 kN 6419593
5 piece
AWV 61 FT 610 mm 0.9 kN 6419615
5 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F Truss-head bolt with flange nut F FRSB 6x12 F 6406122
100 piece
