Wall bracket, variable AWV FT
Item no. 6419593 | EAN 4012196206476
- Product description
-

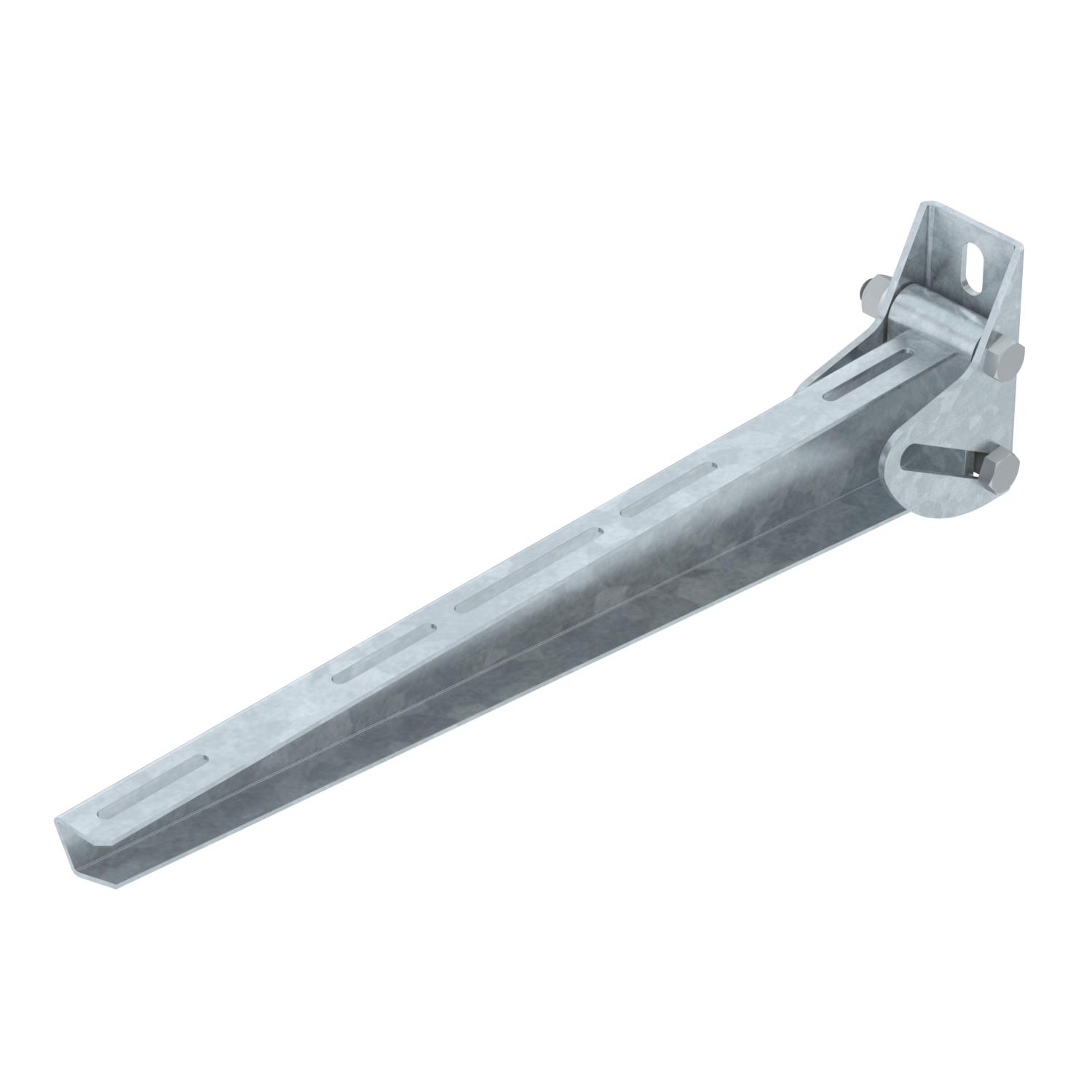

Product descriptionVariable wall bracket for fixing to sloping or vaulted walls.
-
- Technical data
-
Technical data

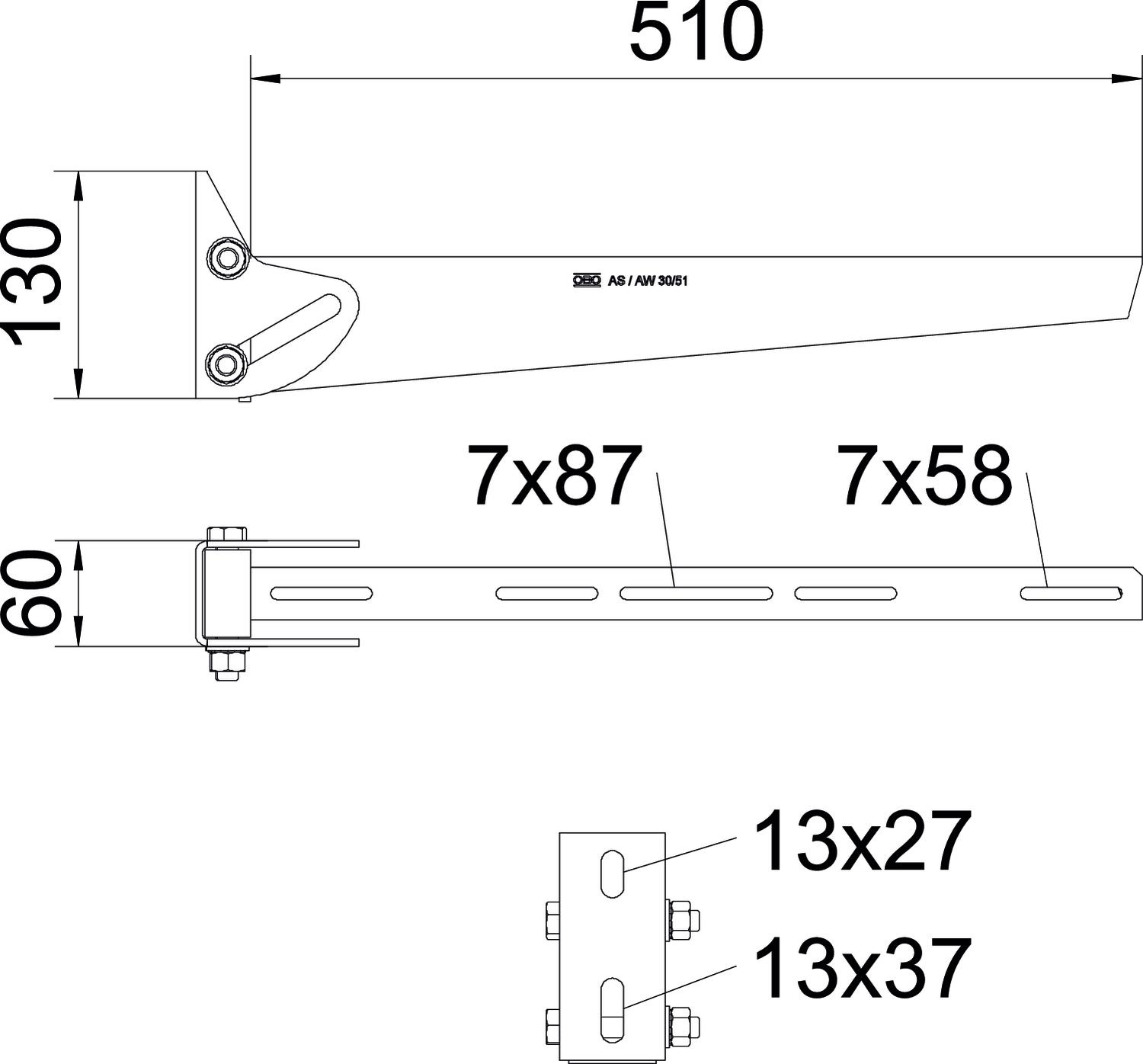

Colour zinc Dimension B510mm Dimension A 60 mm Dimension B 510 mm Dimension H 130 mm Dimension L 510 mm F in kN 0,9 kN for width max. 90 mm for width min. 60 Height 130 mm Hole diameter 13 mm Length 60 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Surface Hot-dip galvanised Version for Wall brackets Width 510 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
