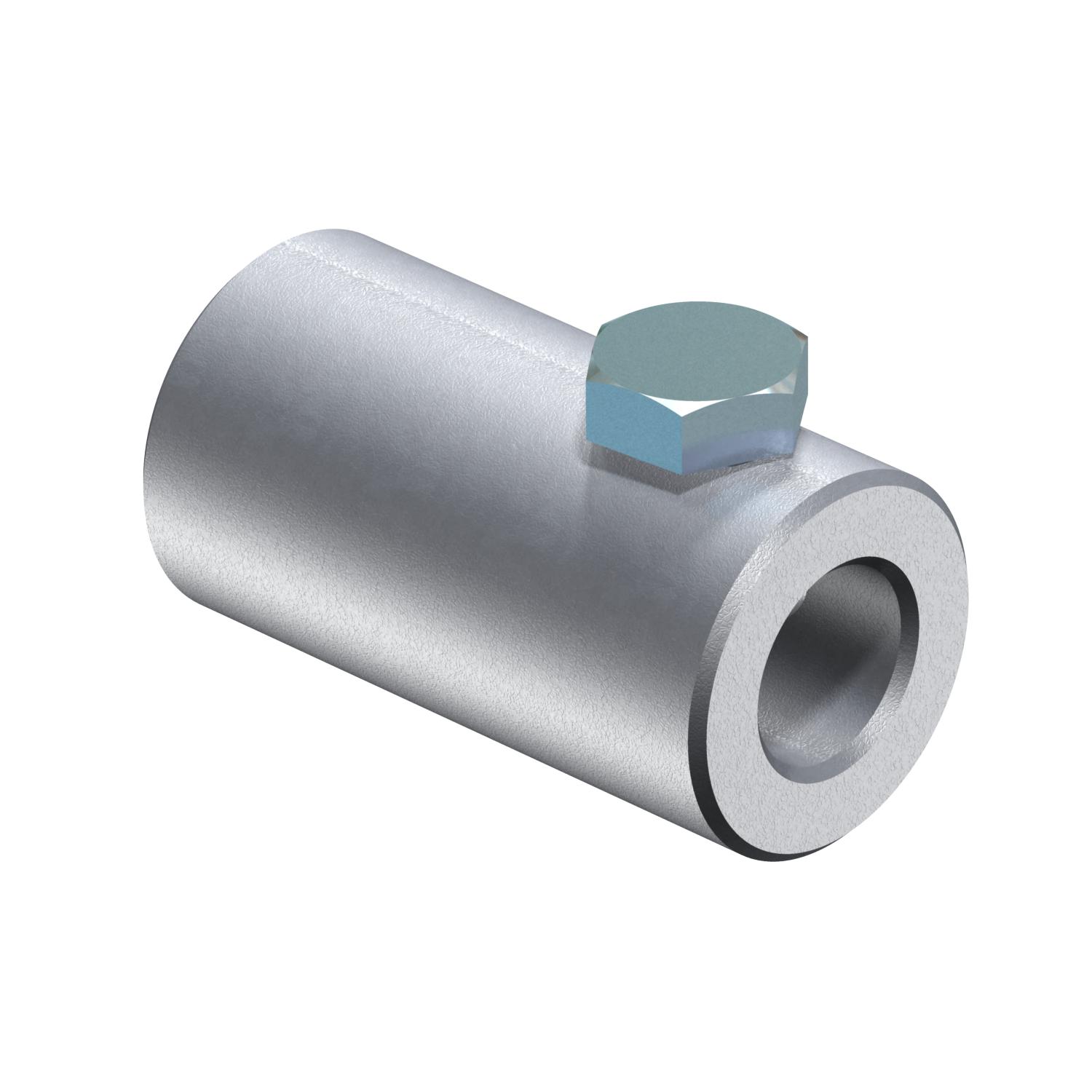

Wall connection

Item no. 5408689 | EAN 4012195613305

60 mm
Product description

Product description

• For mounting insulating rods to structures or walls

• With M8 internal thread, e.g. for mounting the cable bracket type 177 (5207347) for loose conductor routing of round conductors

• Incl. M10 bolts
Technical data

Technical data

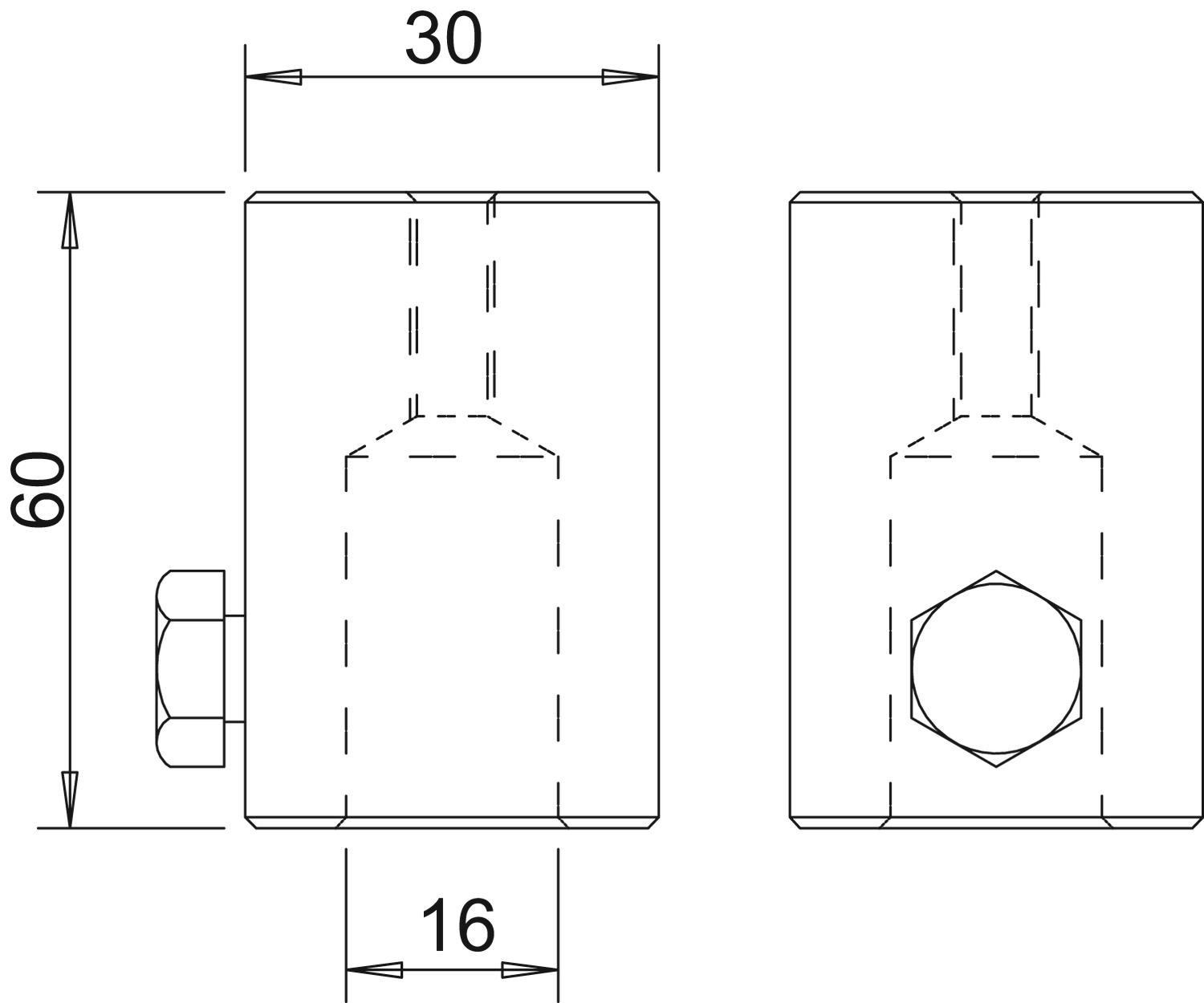

Connection Round conductor
Dimension 16mm
Dimension d min. 30 mm
Dimension d Ø 16 mm
Dimension L 60 mm
Length 60 mm
Material Aluminium
All types

All types

Types Length Dimension d min. Item no. Quantity SSU
101 IW-M10 60 mm 40 mm 5408687
10 piece
101 W-16 60 mm 30 mm 5408689
10 piece
Downloads

Download

Download

101 W-16 / 5408689
