Wall connection, angled 30 | 16 | 110

morepic-1

morepic-2

Wall connection, angled

Item no. 5408986 | EAN 4012195613374

Item no. / Types	5408986 / 101 WG-16

Dimension d min.	30 mm

Dimension d Ø	16 mm

Dimension L	110 mm

Product description

Product description

• Wall connection for GFK rods
• Dimension D Ø: 16 mm

Technical data

Technical data

Connection	Round conductor
Dimension	200x160x65
Dimension d min.	30 mm

Dimension d Ø	16 mm
Dimension L	110 mm
Material	Stainless steel

All types

All types

Types	Dimension d min.	Dimension d Ø	Dimension L	Item no.	Quantity	SSU
101 WG-16	30 mm	16 mm	110 mm	5408986	piece	10 piece

Downloads

Data sheet 101 WG-16 / 5408986 , 0.15MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

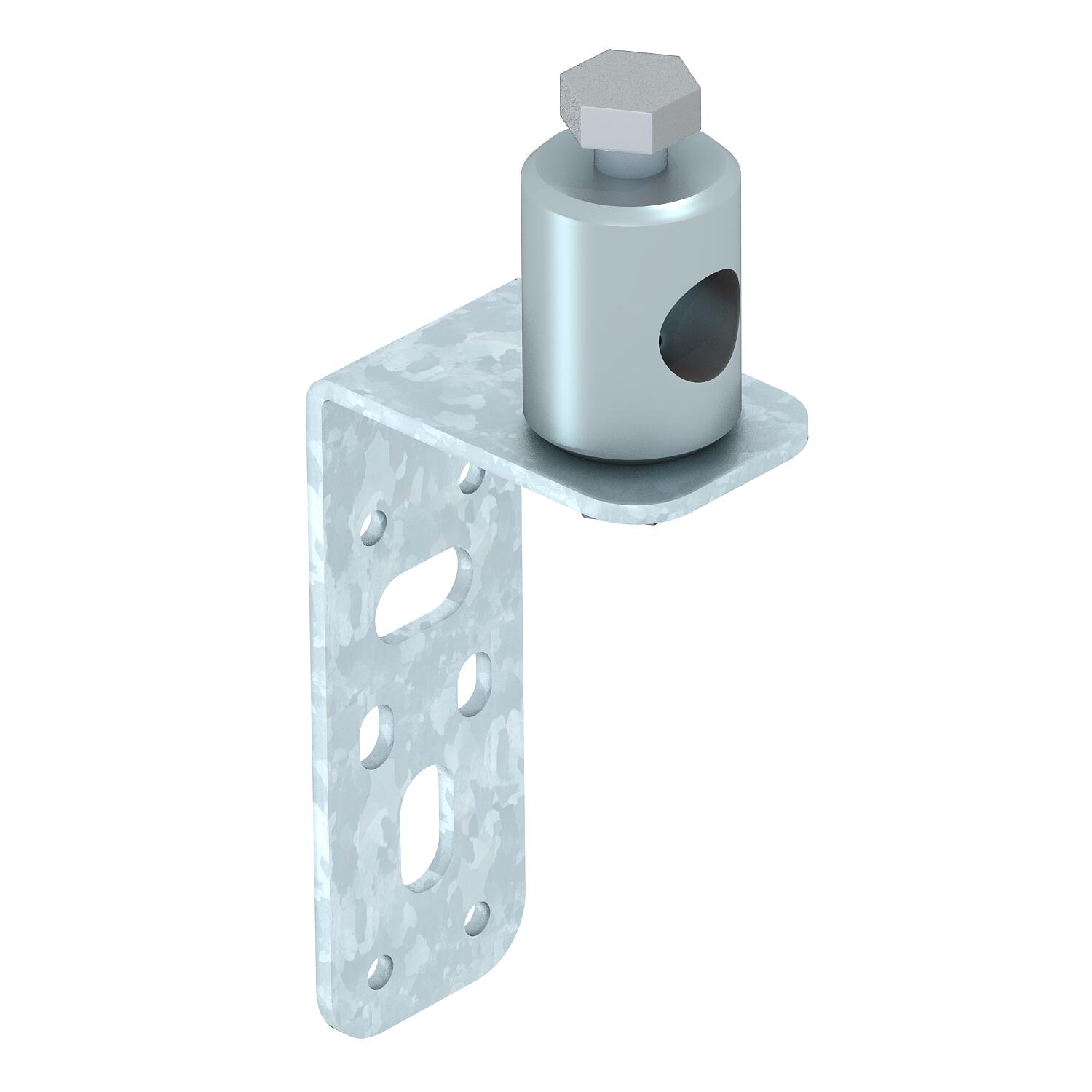

Product graphic 101 WG-16 / 5408986, 56.64 kB, jpg

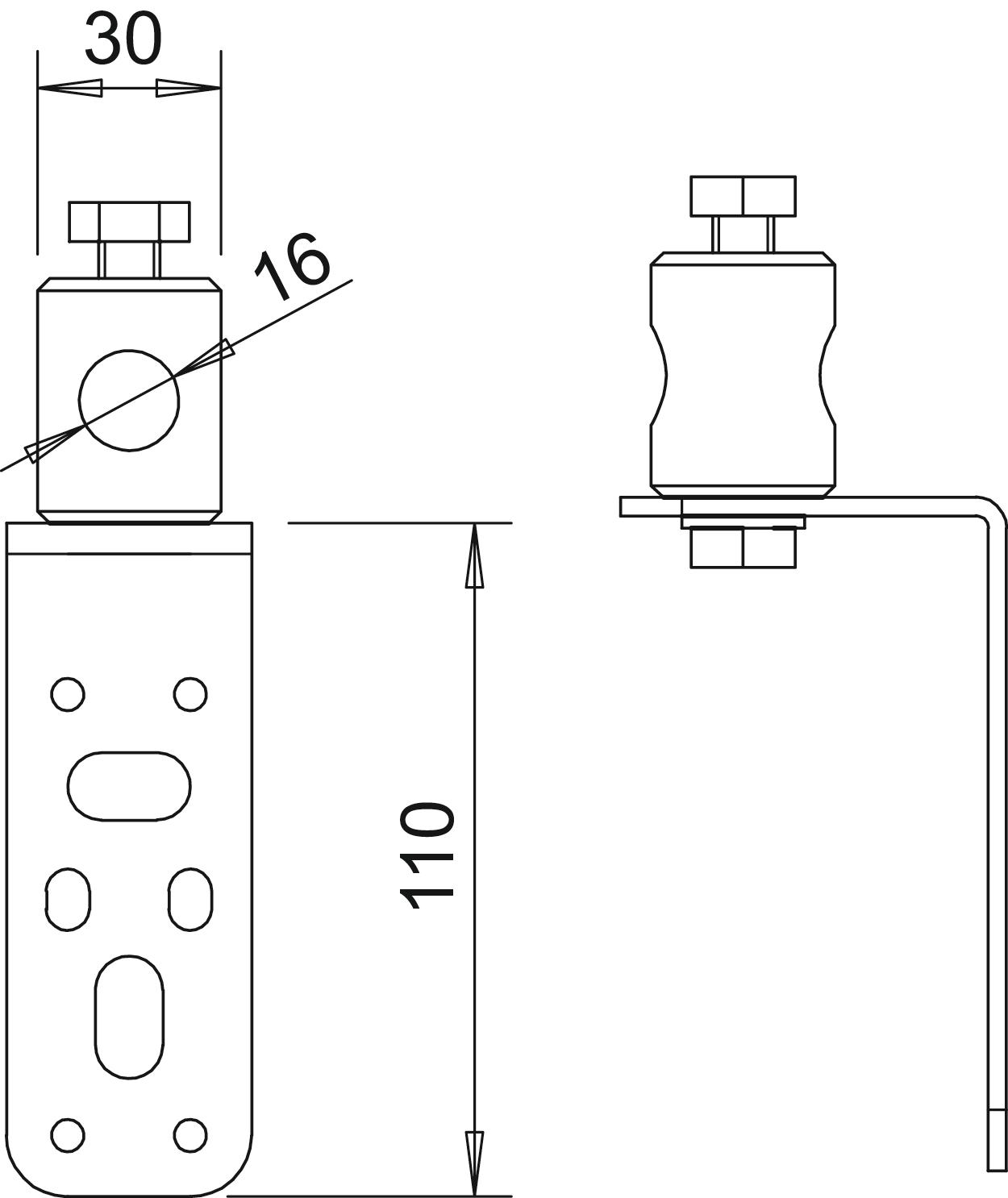

Scale drawing 101 WG-16 / 5408986, 65.42 kB, jpg

101 WG-16 / 5408986

5408986_KSTP1.stp, 260.18 kB
