Wall connection collar, 3- and 4-sided, duct height 40 mm, pure white
Item no. 7218124 | EAN 4012197310325
- Product description
-

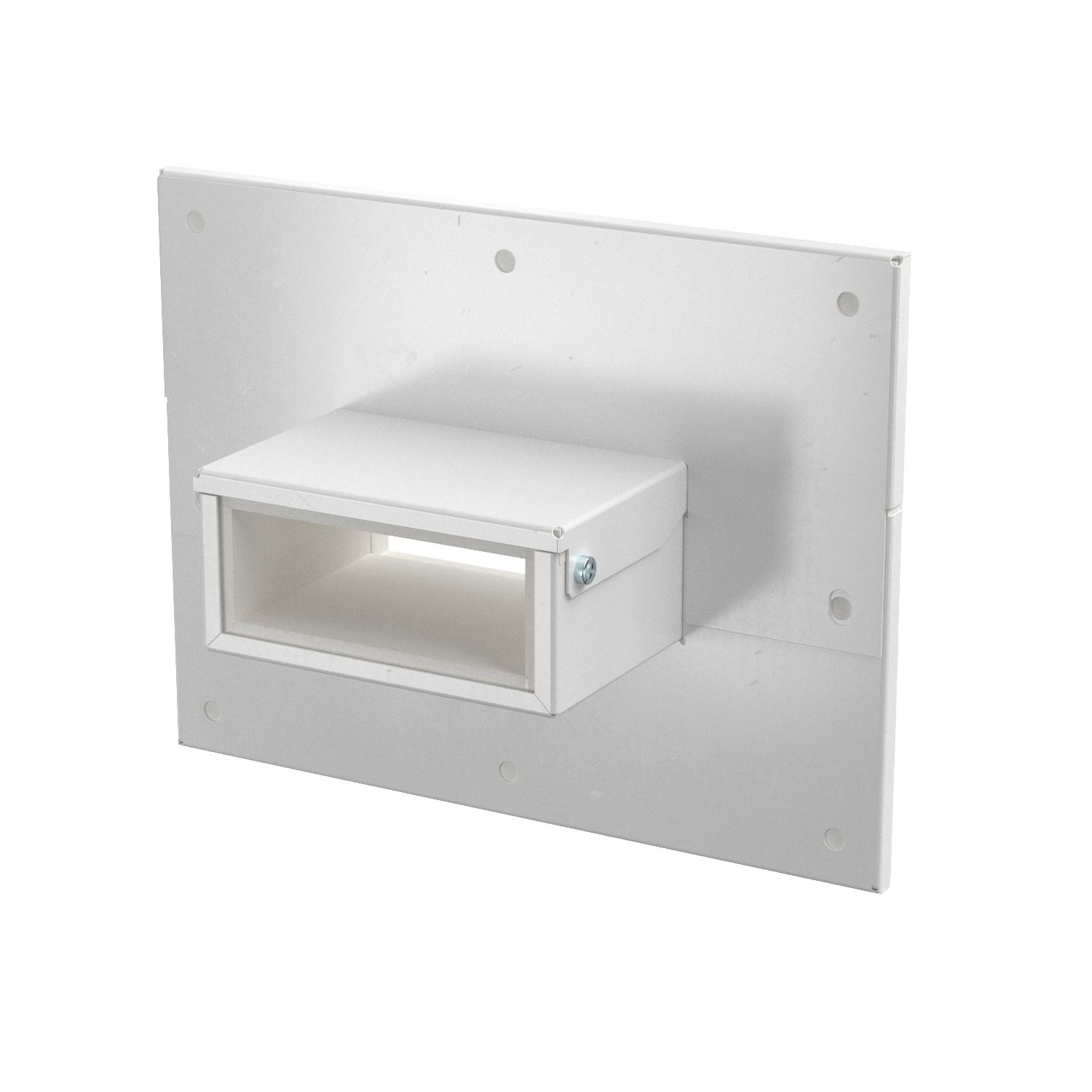

Product descriptionWall connection collar, 4-sided, with integrated seal for PYROLINE® Rapid PLM installation duct. For mounting in the area of wall and ceiling connections as well as wall penetrations. Can also be used as 3-sided wall connection collar for direct wall or ceiling mounting of the duct.
-
- Technical data
-
Technical data

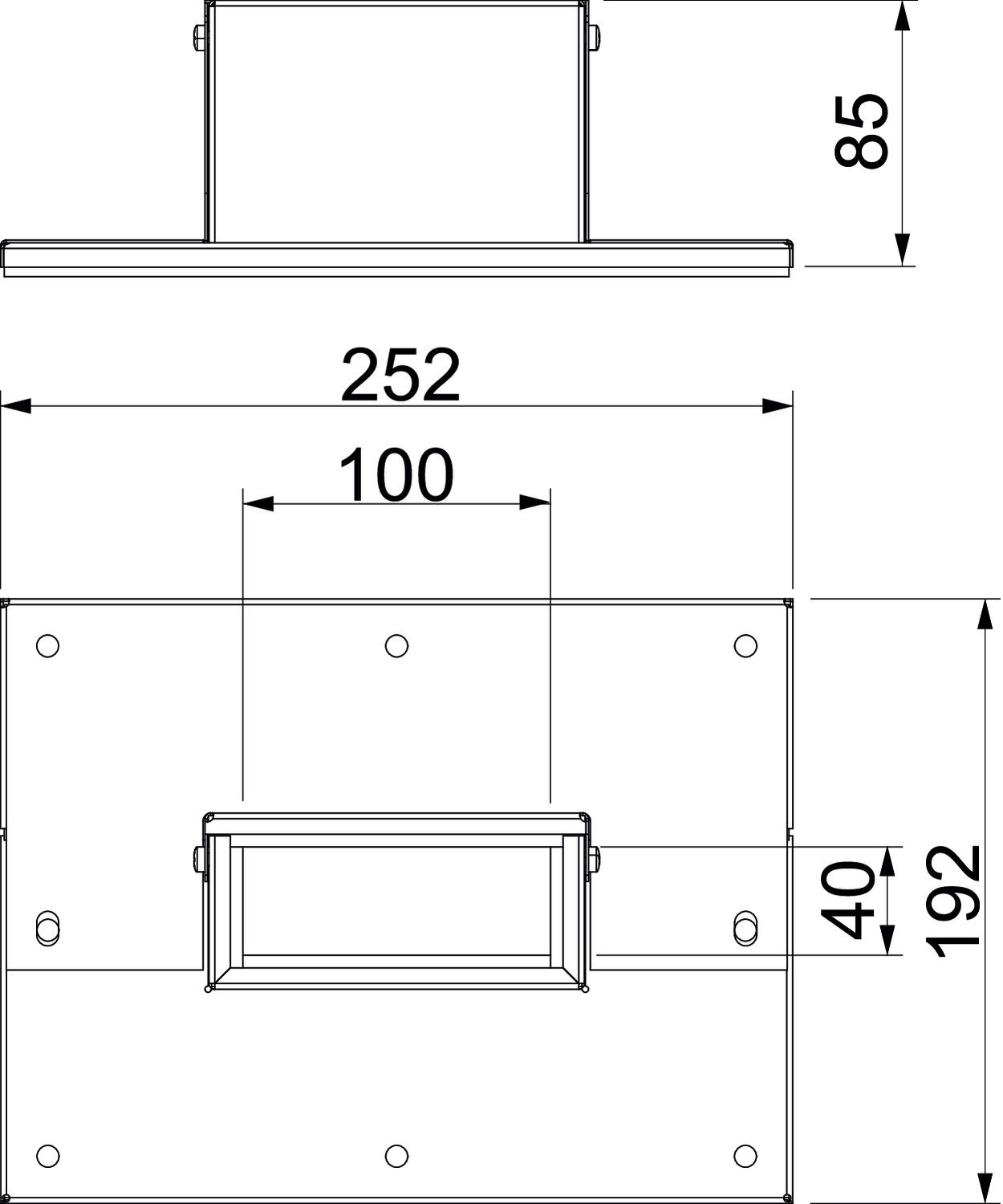

Accessories yes Colour Pure white; RAL 9010 Dimension 85x253x193 Dimension B 252 mm Dimension b 100 mm Dimension D 192 mm Dimension d 40 mm Material Steel Spare part no Surface Powder-coated Type of accessory Wall connection collar - All types
- Downloads
-
Data sheet PLM WC 0410 RW / 7218124 , 0.16MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfEU declaration of conformity PLM WC 0410 RW / 7218124 , 0.11MB , pdfDeclaration of performance PLM WC 0410 RW / 7218124 , 0.78MB , pdfApproval certificate Fire protection ducts PYROLINE® Rapid PLM , 2.15MB , pdfNo invitation to tender text is available for this product.
